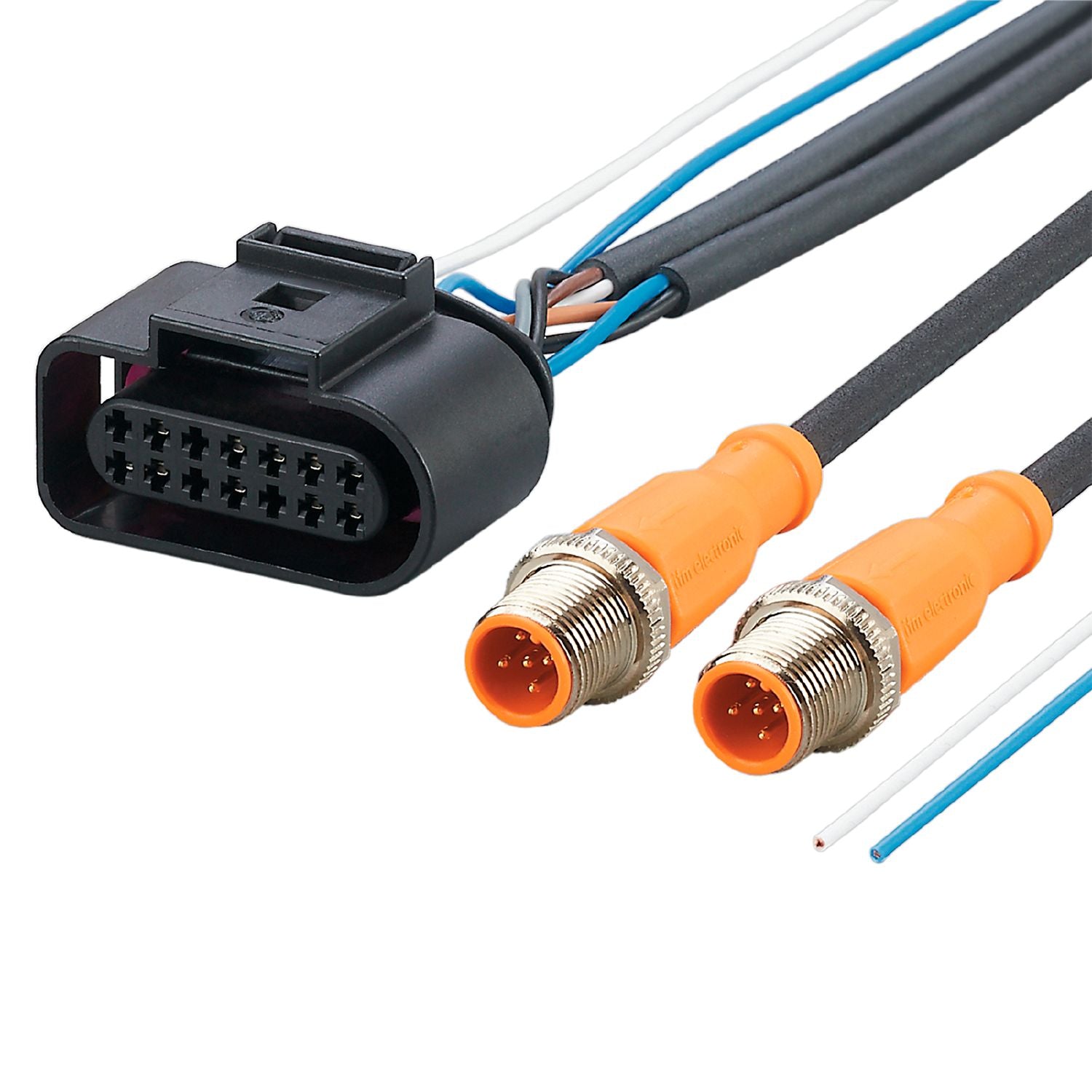

IFM EC3148 - Y connection cable Cable/Plug&Play/M12/0.6m

For a reliable signal transmission.
Wide operating temperature range.
For applications in mobile machines and in particularly harsh industrial environments.
Lockable AMP connector with reverse polarity protection

Design	Adapter cable

Operating voltage [V]	8...32 DC

Operating conditions

Ambient temperature [°C]	-20...85

Weight [g]	109
Materials	housing: PBT black; socket: TPU orange; Sealing: Viton

Pack quantity	1 pcs.

Electrical connection - C

	Connector: 1 x AMP connector, straight

Electrical connection

Connection	Cable: 0.6 m, PUR, black, Ø 5.1 mm; 5 x 0.5 mm²

Electrical connection - A

	Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection - B

	Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm
