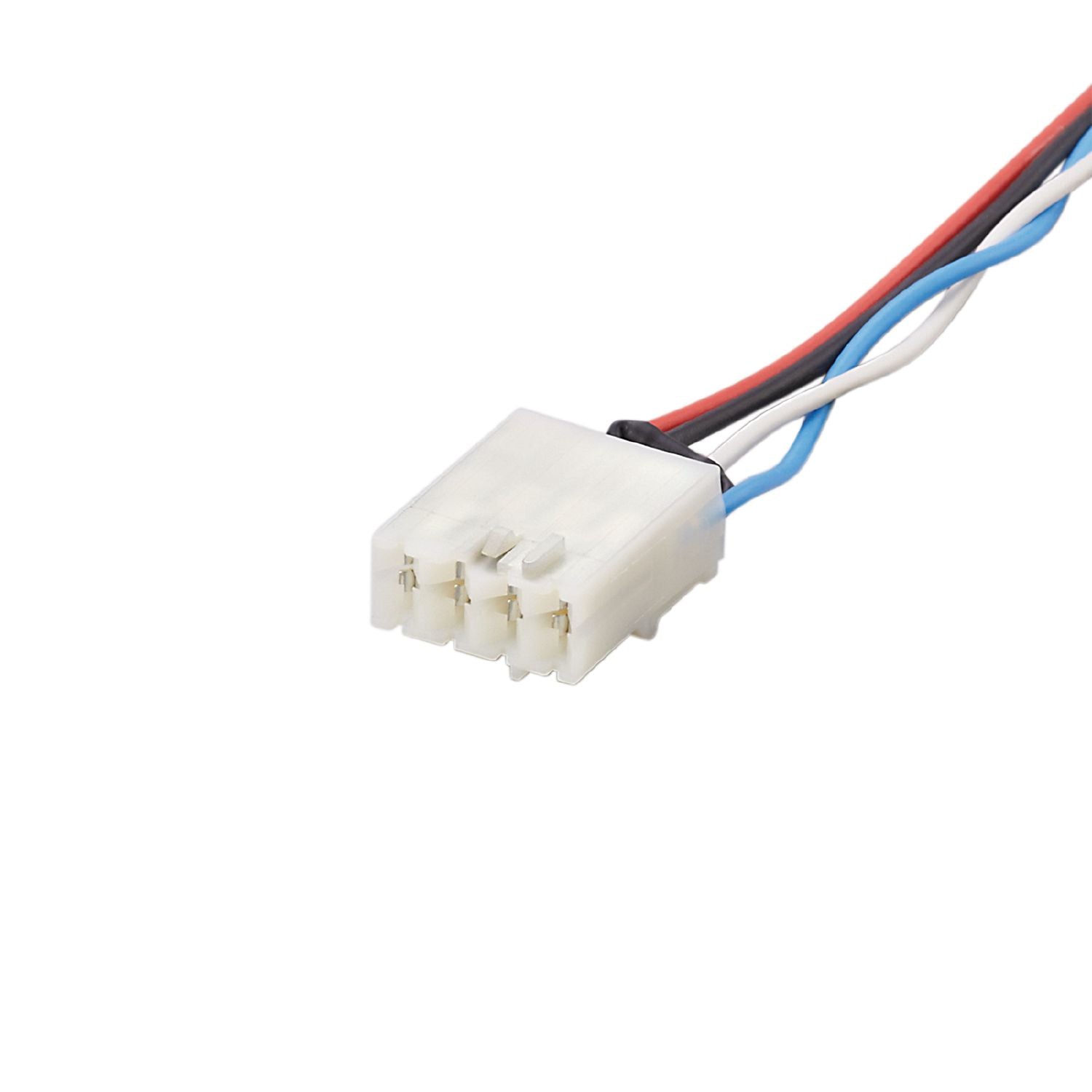

IFM EC9209 - Connection cable with contact housing BasicCable/N2//C1.1

For the connection of controllers.
Suited for use in mobile machines.
Can be coded and cut to size.
Wide operating temperature range

Design	for BasicController, CAN2 N2, CR04xx

Weight [g]	58.8

Remarks	CAN bus terminating resistor (120 ohms) is integrated in the standard timer contact housing
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 1.5 m; 2 x 0.50 mm² + 2 x 0.75 mm²
