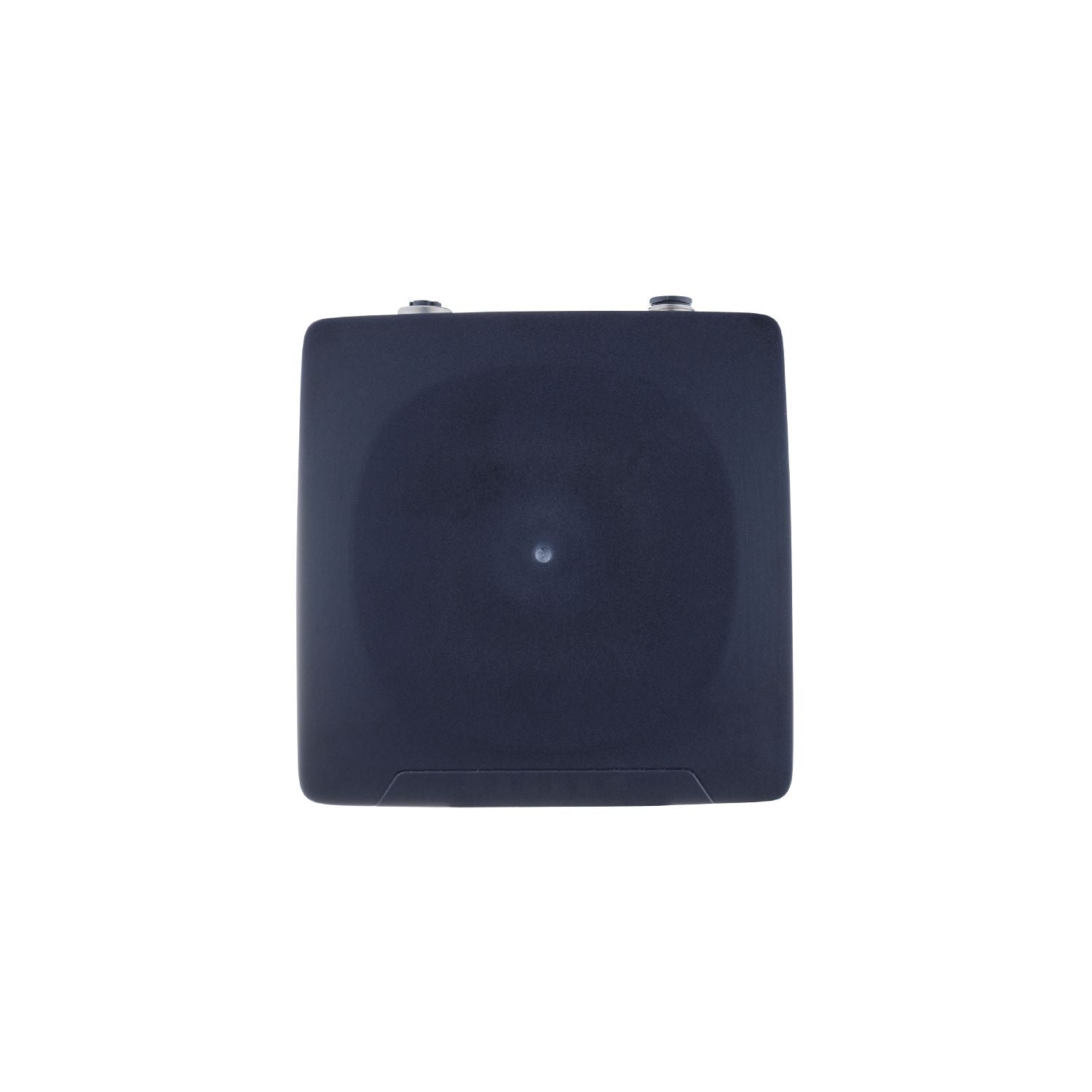

IFM EIO404 - Bluetooth mesh IoT base station BLUETOOTH MESH IOT BASE STATION

Reading and writing of data at the connected IO-Link device via Bluetooth.
Easy access to sensors via ifm moneo blue or moneo configure.
ifm moneo blue free of charge for iOS and Android

Special feature	Gold-plated contacts
Application	Base station for Bluetooth adapters. The data collected by the connected adapters can be retrieved via Ethernet using IoT Core
Radio approval for	EU/RED; United Kingdom; USA; Canada; Japan; Namibia; Singapore; Australia; India; Vietnam; New Zealand; Indonesia; Malaysia; Thailand; Ukraine; Israel; Taiwan; Mexico; Argentina; Chile; South Korea; South Africa
Note on radio approval	The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”.

Operating voltage [V]	18...30 DC;(limitation due to ES1 and PS2)
Nominal voltage DC [V]	24
Current consumption [mA]	< 100
Protection class	III
Reverse polarity protection	yes

Interfaces

Communication interface	Ethernet; Bluetooth

Transmission standard	BLE 5.0
Frequency band	2,4 GHZ
Transmission power [mW]	10;(10 dBm)
Range	typ. 20 m

Transmission standard	10Base-T; 100Base-TX
Transmission rate	10; 100
Protocol	MQTT JSON; IoT-Core
Factory settings	IP address: DHCP MAC address: see type label

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 40 g, 6ms / bump 50 g, 11 ms / single shock
Vibration resistance	DIN EN 60068-2-6 2 g (10...150 Hz)

Weight [g]	477
Materials	PBT; PC; stainless steel (316 / 1.4401); stainless steel (1.4567 / 304Cu); brass; PU; PTFE; FKM

Displays / operating elements

Display	operation LED, green warning/ fault LED, red Bluetooth LED, blue

Pack quantity	1 pcs.
