For applications in hazardous areas. Permanent, reliable sealing even when mounted without tools. High protection rating for the requirements of harsh industrial environments. Vibration and shock resistant thanks to coupling ring with locking mechanism. Mechanical end stop to protect the O-ring from destruction
Special feature
Free from silicone; Halogen-free; Gold-plated contacts
Free from silicone
yes
Compatible with paint
yes
Operating voltage [V]
< 30 DC
Protection class
II
Max. input power [mW]
group II: 1000; group III: 1000
Max. current load total [A]
1
Operating conditions
Ambient temperature [°C]
-25...85
Note on ambient temperature
for use in hazardous areas: ambient temperature in accordance with unit marking
Protection
IP 67;(when used outside the hazardous area: IP 68 / IP 69K)
Tests / approvals
Approval
BVS 11 ATEX E 009 X; IECEx BVS 11.0002 X
ATEX marking
II 1G Ex ia IIB T6 Ga Ta: -25...75°C
II 2G Ex ia IIC T6 Gb Ta: -25...75°C
II 1G Ex ia IIB T5 Ga Ta: -25...85°C
II 2G Ex ia IIC T5 Gb Ta: -25...85°C
II 1D Ex ia IIIB T200 85°C Da Ta: -25...75°C
II 1D Ex ia IIIB T200 95°C Da Ta: -25...85°C
II 1D Ex ia IIIC T200 70°C Da Ta: -20...60°C
Safety classification
Max. internal capacitance [nF]
0.2
Max. internal inductance [µH]
4
Weight [g]
102.7
Dimensions [mm]
26.5 x 15.5 x 36.5
Materials
housing: TPU orange; Sealing: FKM
Material nut
brass, nickel-plated
Remarks
Special conditions for safe operation apply for use in hazardous areas.
Observe the corresponding notes in the operating instructions (Ex protection related part).
Pack quantity
1 pcs.
Electrical connection

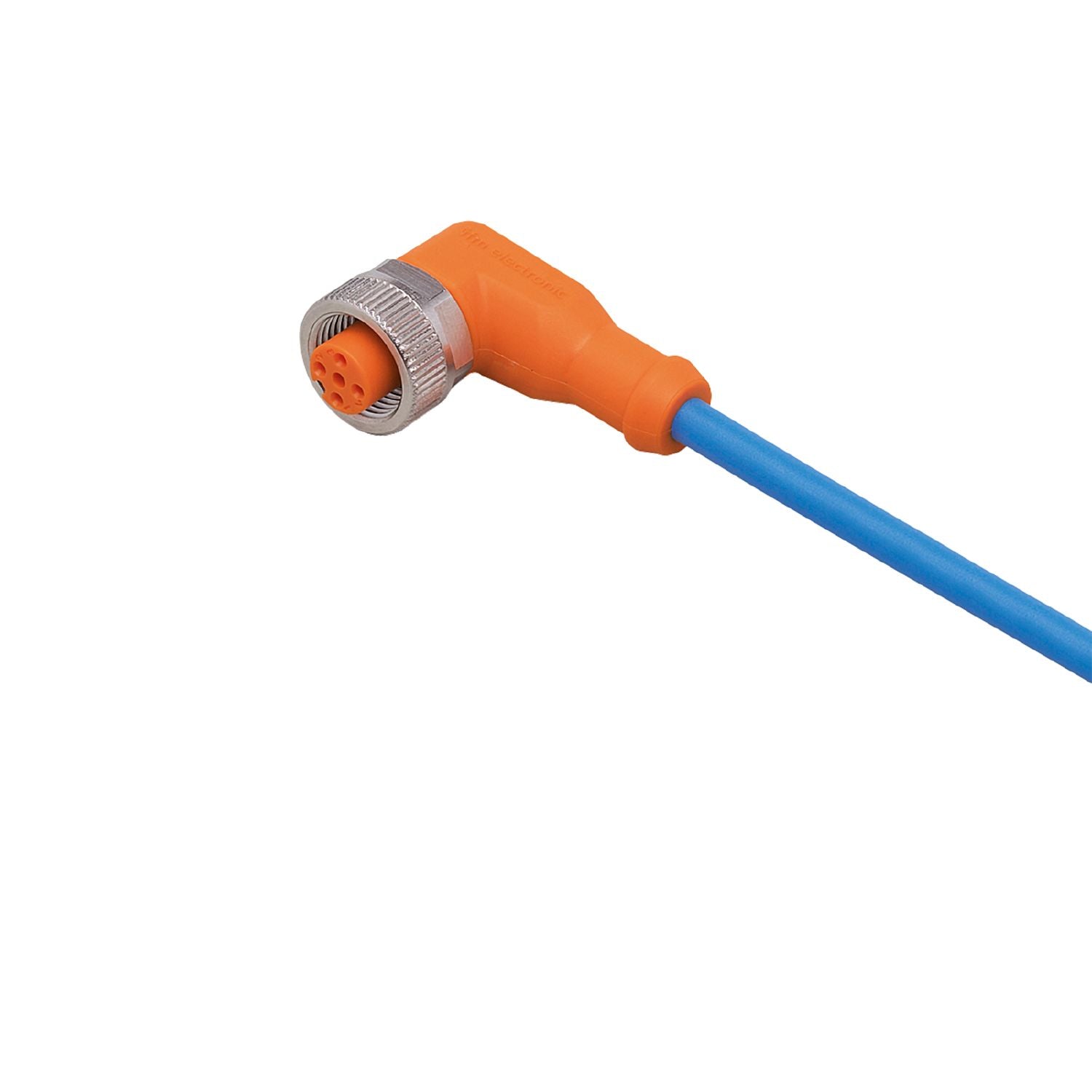

Cable: 2 m, PUR, Halogen-free, blue, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
