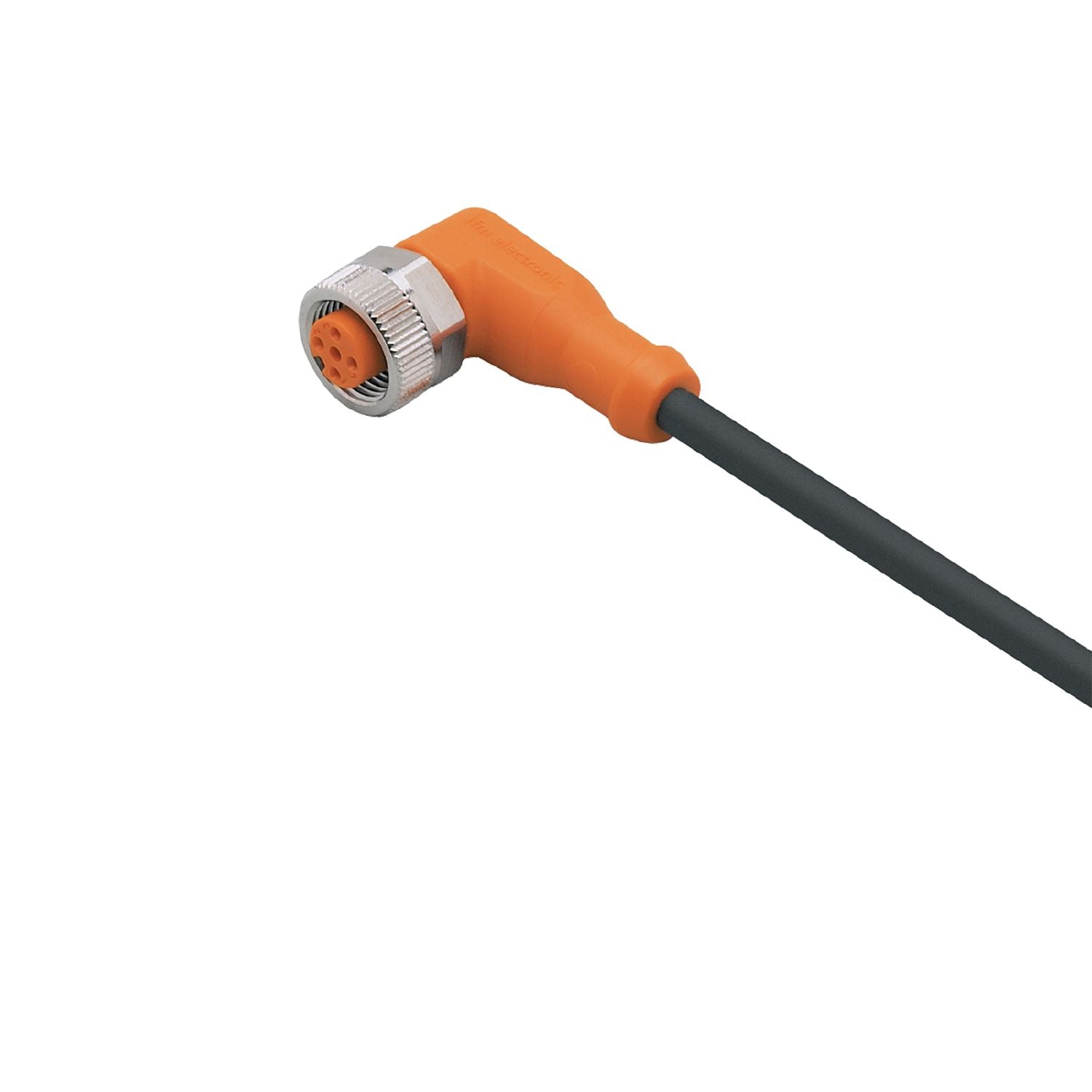

Angled type for use where space is restricted. Gold-plated contacts for reliable electrical connections. Permanent, reliable sealing even when mounted without tools. High protection rating for the requirements of harsh industrial environments. Wide operating temperature range
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone
yes
Operating voltage [V]
< 250 AC / < 300 DC
Protection class
II
Max. current load total [A]
4
Operating conditions
Ambient temperature [°C]
-25...90
Note on ambient temperature
cULus: ...75 °C
Ambient temperature (moving) [°C]
-25...90
Note on ambient temperature (moving)
cULus: ...75 °C
Storage temperature [°C]
-25...55
Storage humidity [%]
10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
153.2
Dimensions [mm]
26.5 x 15.5 x 36.5
Materials
housing: TPU orange; Sealing: FKM
Material nut
brass, nickel-plated
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 5 Mio.
torsional strain
± 180 °/m
Accessories
Items supplied
labels: 1
Notes
Please see the technical note under "Downloads"
Pack quantity
1 pcs.
Electrical connection
Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
