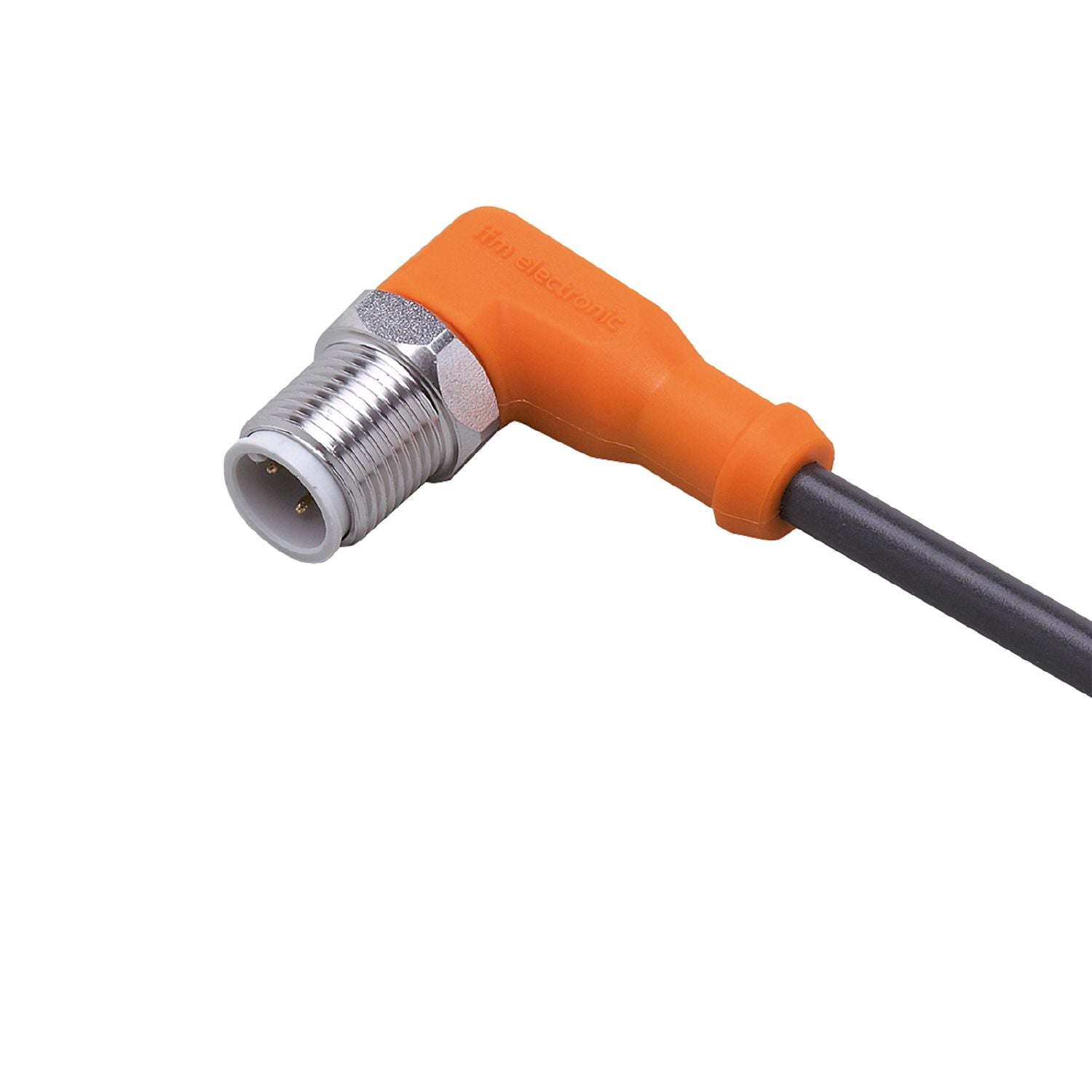

IFM EVC17A - Connecting cable with plug ASTAH040VAT0010H04/3G/2D

For applications in hazardous areas.
Resistant to oils and coolants.
High protection rating for the requirements of harsh industrial environments.
Vibration and shock resistant thanks to coupling ring with locking mechanism

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 60 AC/DC
Protection class	II
Max. current load total [A]	2

Operating conditions

Ambient temperature [°C]	-20...60
Protection	IP 67;(when used outside the hazardous area: IP 68 / IP 69K)

Tests / approvals

Approval	BVS 08 ATEX E 109 U; IECEx BVS 08.0041 U
ATEX marking	II 3G Ex ec IIC Gc; II 2D Ex tb IIIC Db IP65/IP67

Weight [g]	357.5
Materials	housing: TPU orange
Material nut	stainless steel (1.4404 / 316L)

Pack quantity	1 pcs.

Electrical connection

	Cable: 10 m, PUR, Halogen-free, black, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

Connection	Connector: 1 x M12, angled; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 1.2...1.5 Nm
