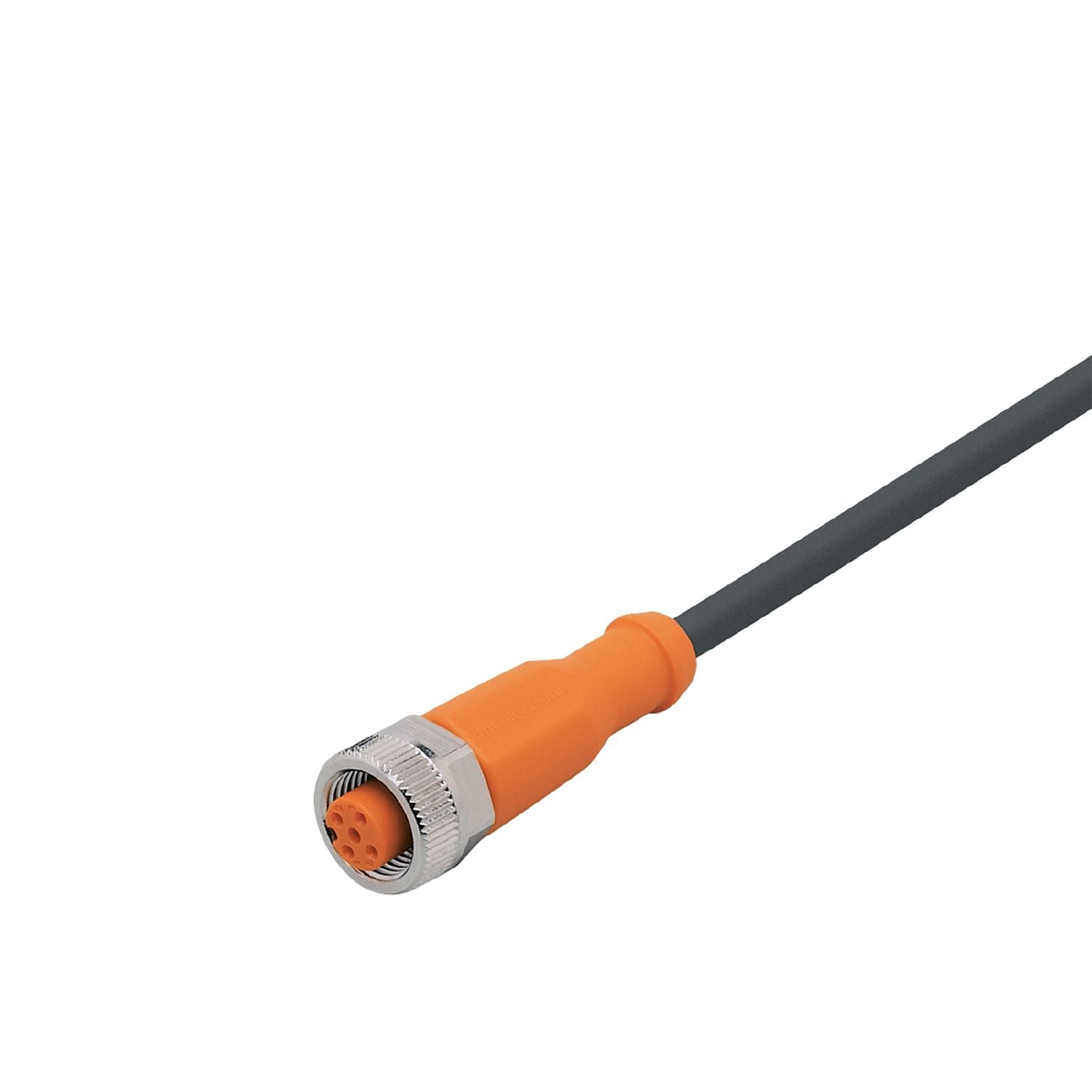

IFM EVC539 - Connecting cable with socket ADOGH040MSS0005K04

Resistant to oils and coolants.
Permanent, reliable sealing even when mounted without tools.
Mechanical end stop to protect the O-ring from destruction.
Vibration and shock resistant thanks to coupling ring with locking mechanism.
Continuously high EMC interference protection against noise field interference

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Free from silicone	yes

Operating voltage [V]	< 50 AC / < 60 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...90
Note on ambient temperature	cULus: ...75
Ambient temperature (moving) [°C]	-25...90
Note on ambient temperature (moving)	cULus: ...75
Protection	IP 65; IP 67

Weight [g]	215.4
Dimensions [mm]	15.5 x 15.5 x 45
Materials	housing: TPU orange; Sealing: FKM
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles ≥ 2 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 4.9 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Shielded connection cable: screen connected

Diagrams and graphs

	Derating Imax * 0.8 DIN EN 60512-5-2 X Ambient temperature [°C] Y Current [A]

Shielding characteristics	x frequency (MHz) y Shielding characteristics (dB) according to DIN EN 60512-23-3
