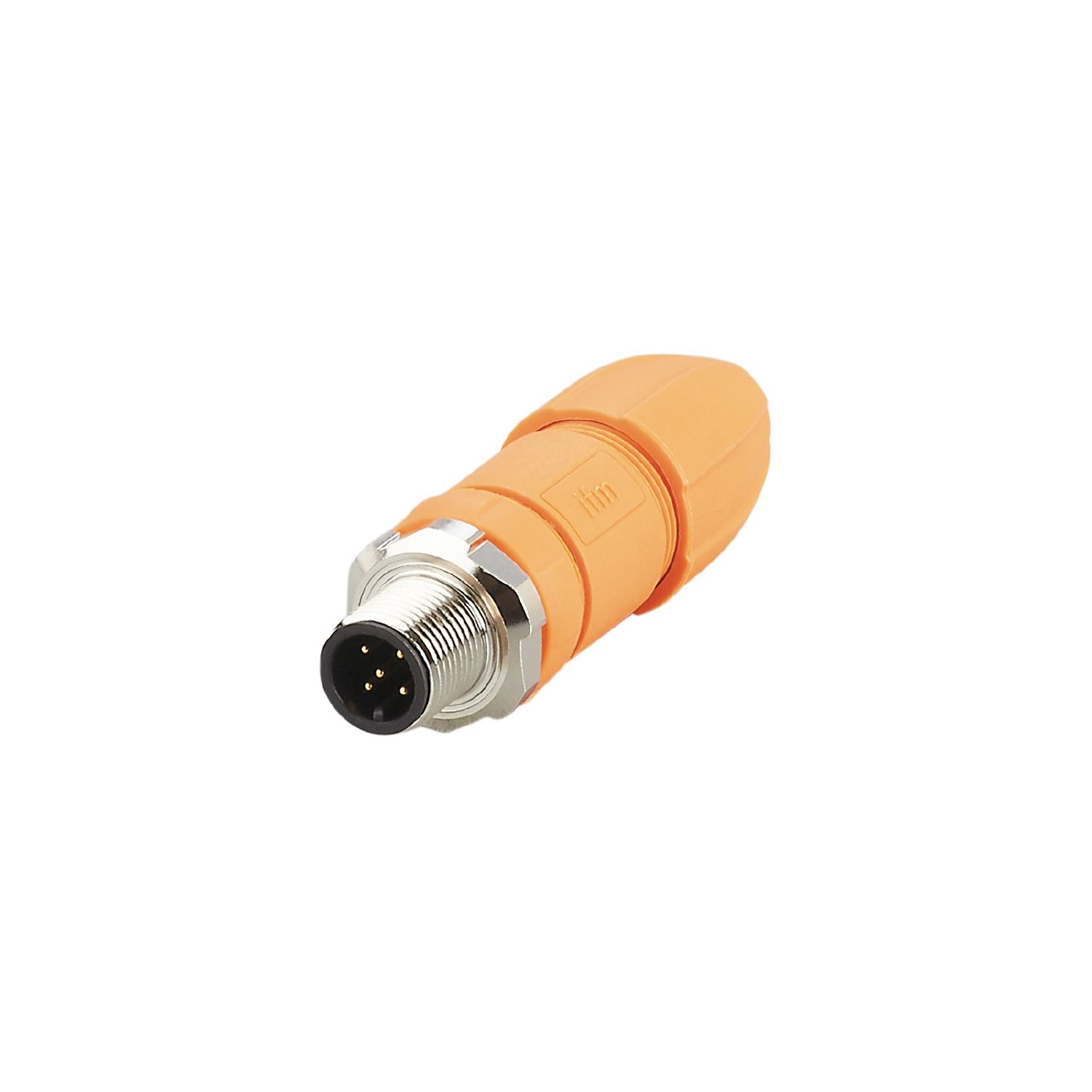

IFM EVC816 - Wirable plug SSTGH050MSSFKPG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Extremely effective strain relief by means of patented three-way ball clamp technology.
Simple and fast wiring by means of screw terminals

Special feature	Free from silicone; Gold-plated contacts
Free from silicone	yes

Operating voltage [V]	< 60 AC/DC
Protection class	II
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...90
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Weight [g]	30.5
Moulded-body material	PA 6.6
Material nut	brass, nickel-plated
Sealing material	FKM

Pack quantity	1 pcs.

Electrical connection

	screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!
