Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone
yes
Operating voltage [V]
24 DC
Protection class
III
Max. current load total [A]
3
Operating conditions
Ambient temperature [°C]
-25...90
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
183.1
Moulded-body material
TPU /TPU
Material nut
brass, nickel-plated
Sealing material
Viton
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 5 Mio.
torsional strain
± 180 °/m
Notes
Please see the technical note under "Downloads"
Pack quantity
1 pcs.

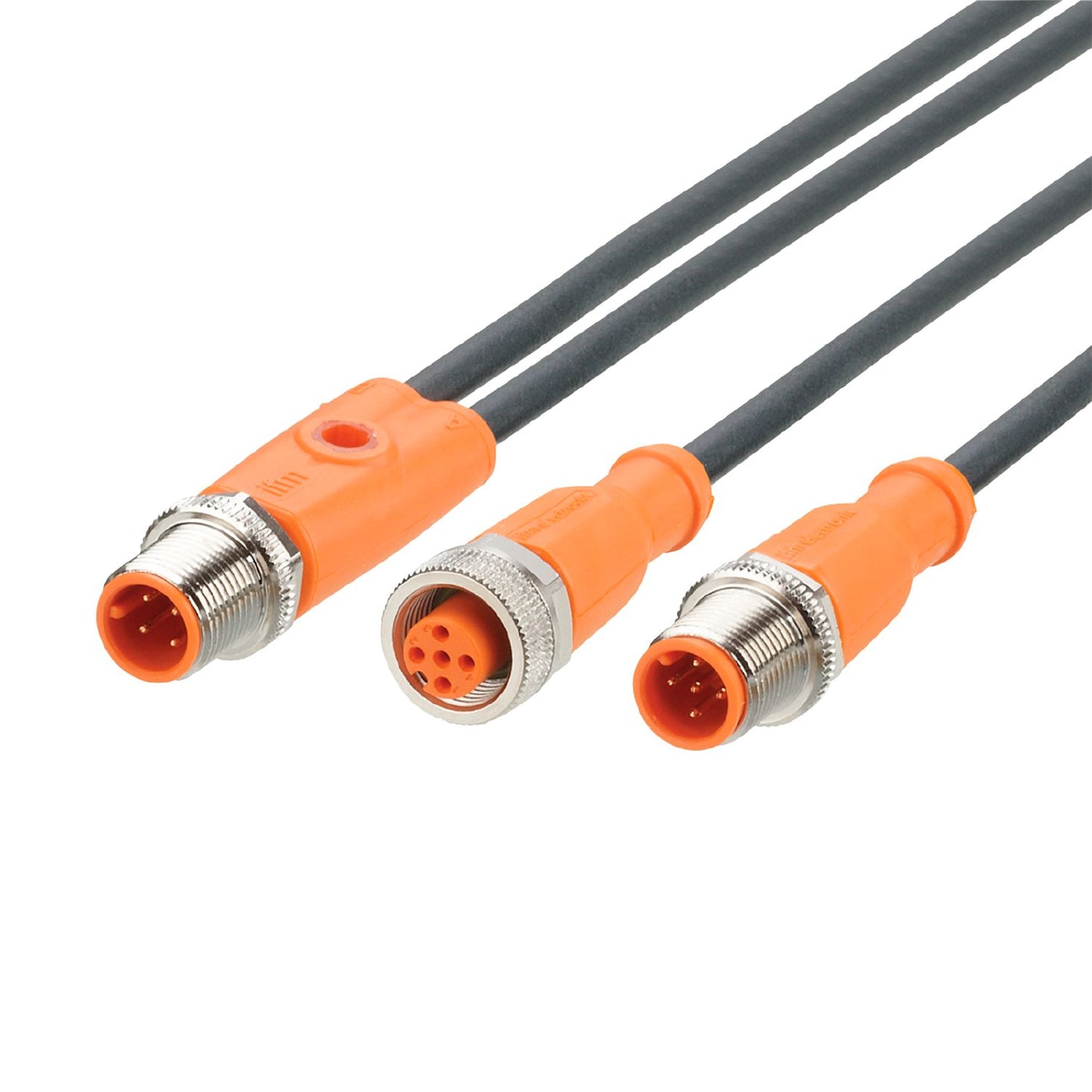

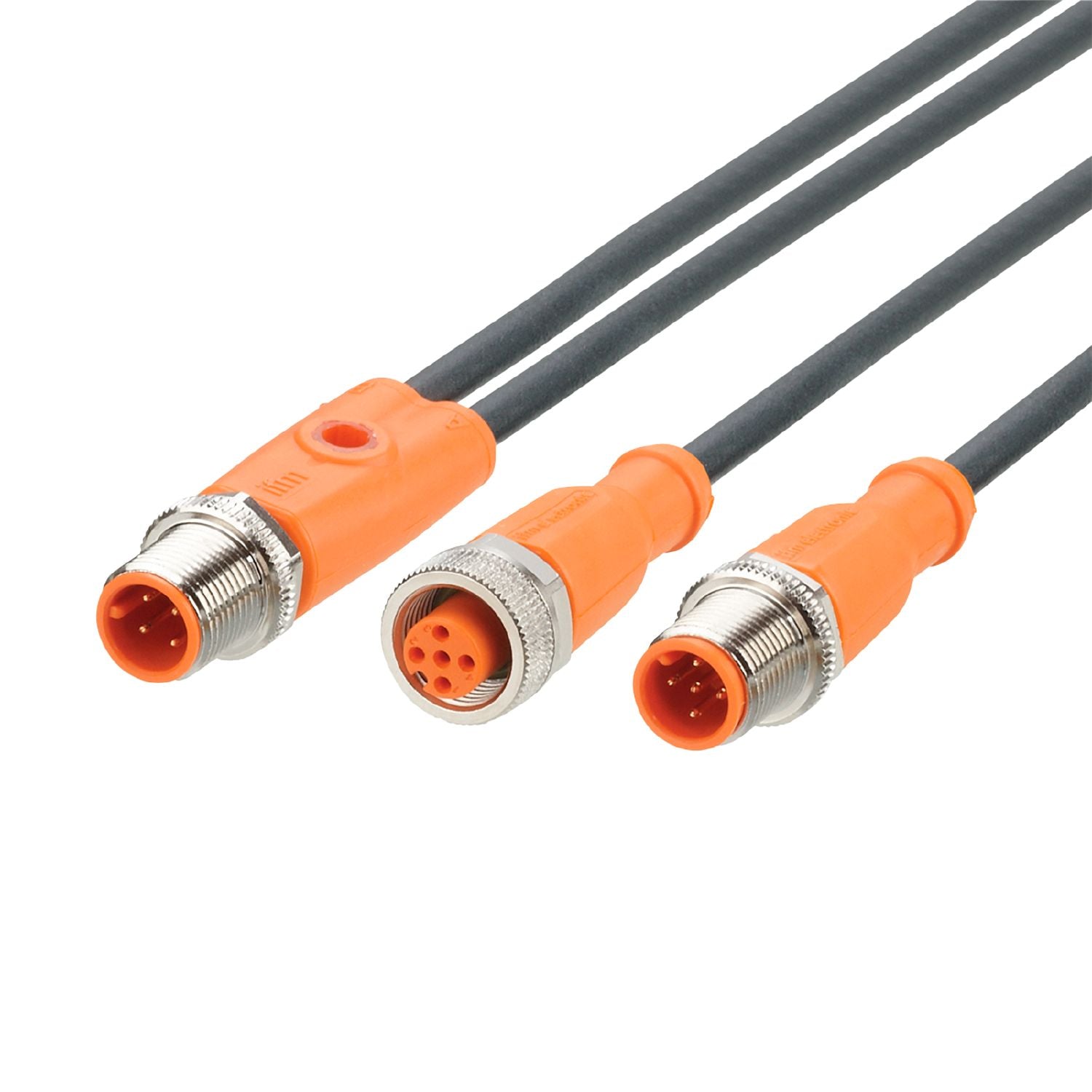

Electrical connection - plug C
Connector:M12, straight; coding: A; Moulded body: TPU, black; Locking: Lock nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!
Electrical connection
Connection
Cable: 2 m, PUR, Halogen-free, black, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm ) + 5 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - plug A
Connector:M12, straight; coding: A; Moulded body:TPU, black; Locking: Lock nut, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!
Electrical connection - socket B
Connector:M12, straight; coding: A; Moulded body:TPU, black; Locking: Lock nut, brass, nickel-plated; Sealing: Viton; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!
Diagrams and graphs
Derating Imax * 0.8 DIN EN 60512-5-2
X
Ambient temperature [°C]
Y
Current [A]
