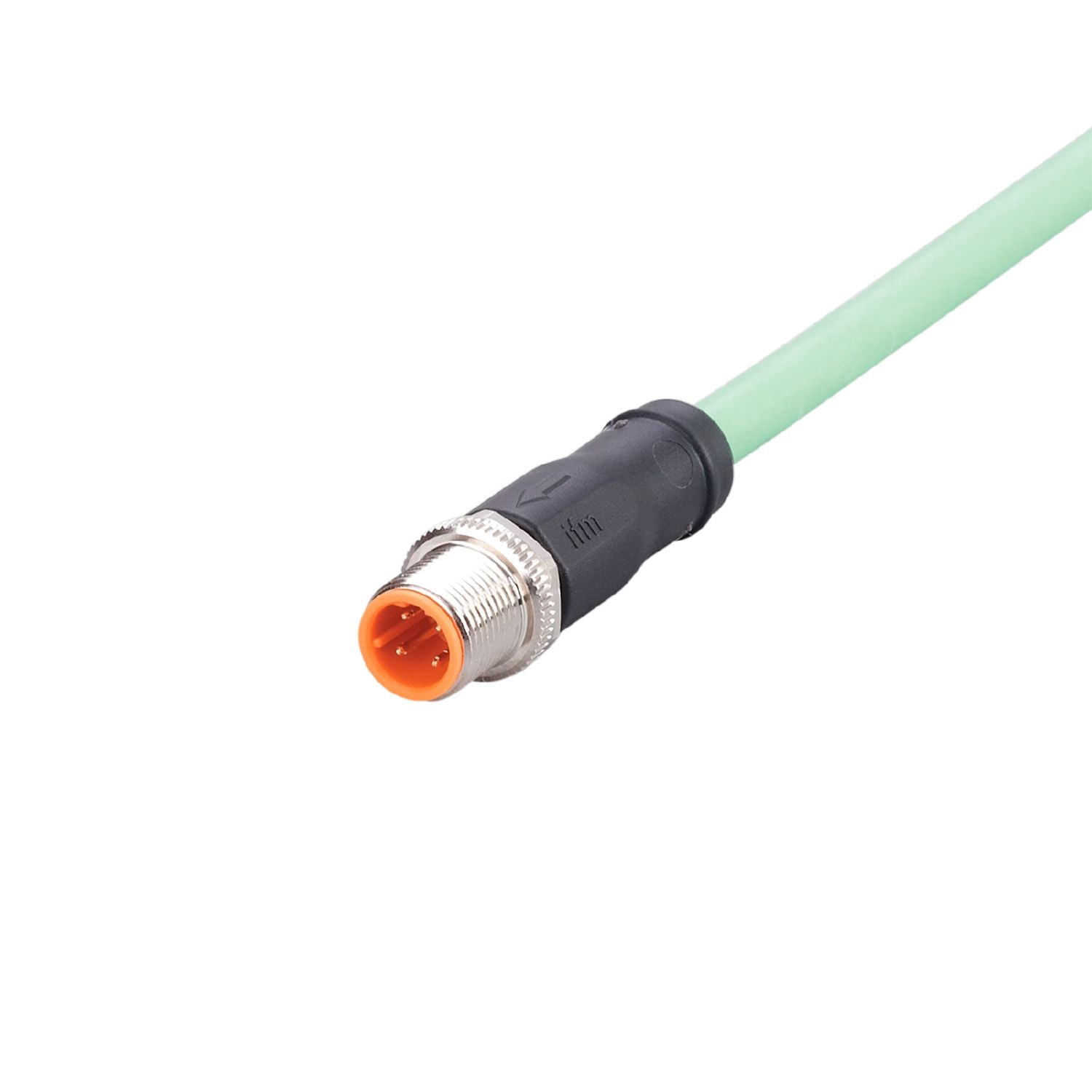

IFM EVC894 - Connecting cable with plug ASTGN040MSS0005K04

High protection rating for the requirements of harsh industrial environments.
Cable sheath made of halogen-free and flame-retardant material.
With robust M12 connector Industrial Ethernet.
Large operating temperature range and high protection rating.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Design	Ethernet cable, D-coded
Application	Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; Industrial applications / factory automation
Free from silicone	yes

Operating voltage [V]	30 AC / 60 DC
Protection class	III
Max. current load total [A]	4

Operating conditions

Ambient temperature [°C]	-25...90
Ambient temperature (moving) [°C]	-25...90
Protection	IP 65; IP 67

Weight [g]	322.9
Moulded-body material	TPU
Material nut	brass, nickel-plated
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 3 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: D; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: screen connected

Electrical connection

Connection	Cable: 5 m, PUR, Halogen-free, green, Ø 6.5 mm, shielded; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm )
