Large cable cross-section for reducing the voltage drop and transferring higher currents. Resistant to oils and coolants. Permanent, reliable sealing even when mounted without tools. Vibration and shock resistant thanks to coupling ring with locking mechanism. Mechanical end stop to protect the O-ring from destruction
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Design

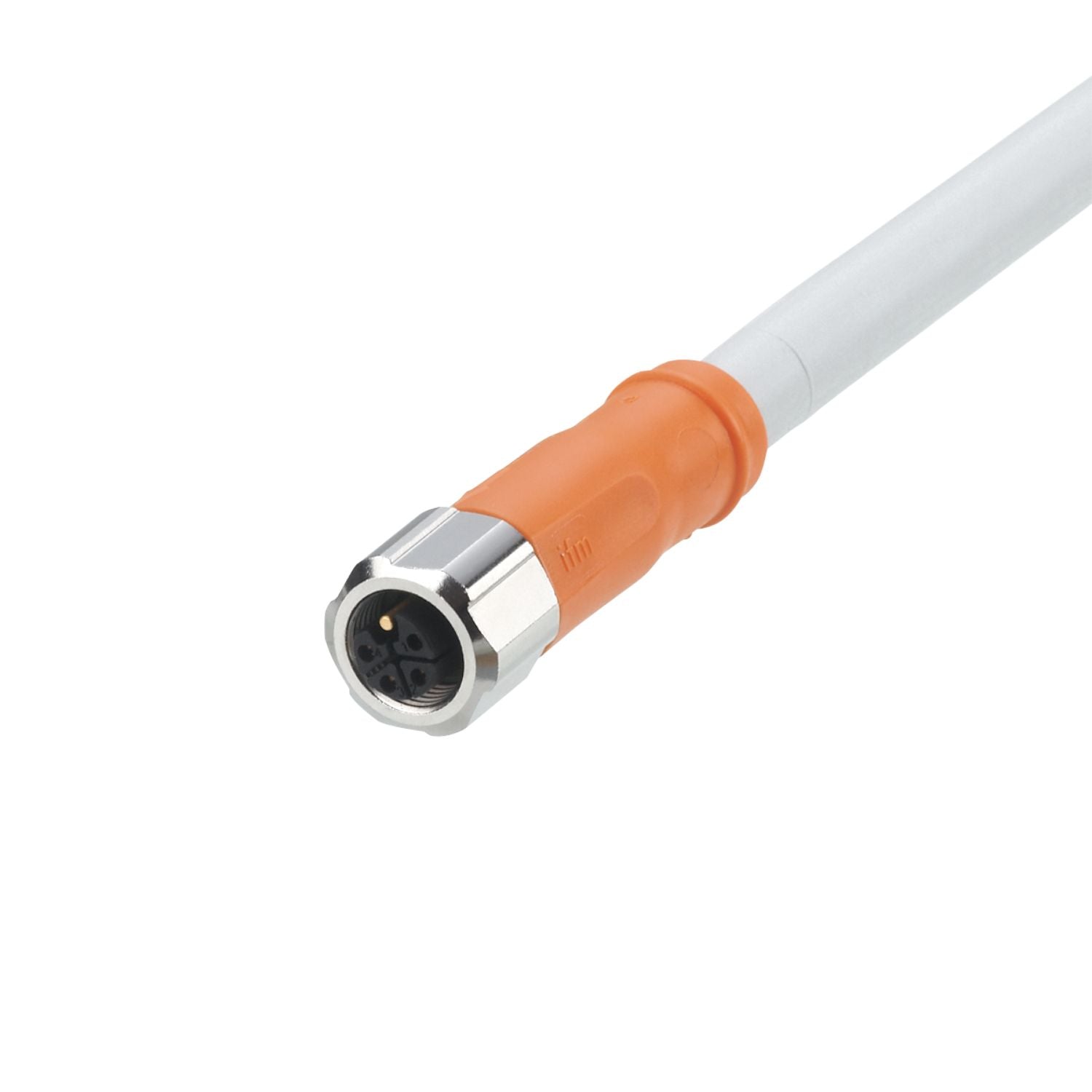

power cable, L-coded
Application
industrial application
Free from silicone
yes
Operating voltage [V]
63 DC
Protection class
III
Max. current load total [A]
16
Operating conditions
Ambient temperature [°C]
-25...90
Note on ambient temperature
cULus: ...80 °C
Storage temperature [°C]
-25...55
Storage humidity [%]
10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection
IP 65; IP 67; IP 69K
Weight [g]
9715
Moulded-body material
TPU
Material nut
brass, nickel-plated
Sealing material
FKM
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 5 Mio.
torsional strain
± 180 °/m
Pack quantity
1 pcs.
Electrical connection - Connection
Cable: 50 m, PUR, Halogen-free, grey, Ø 10.1 mm; 5 x 2.5 mm² (141 x Ø 0.15 mm )
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVCA19-00 — 25.09.2023 —
