Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone
yes
Operating voltage [V]
24 DC
Protection class
II
Max. current load total [A]
3
Operating conditions
Ambient temperature [°C]
-25...90
Storage temperature [°C]
-25...55
Storage humidity [%]
10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
60.1
Moulded-body material
TPU /TPU
Material nut
brass, nickel-plated
Sealing material
FKM
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
bending radius for fixed installation
min. 5 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 5 Mio.
torsional strain
± 180 °/m > 2 Mio.
Notes
Please see the technical note under "Downloads"
Pack quantity
1 pcs.

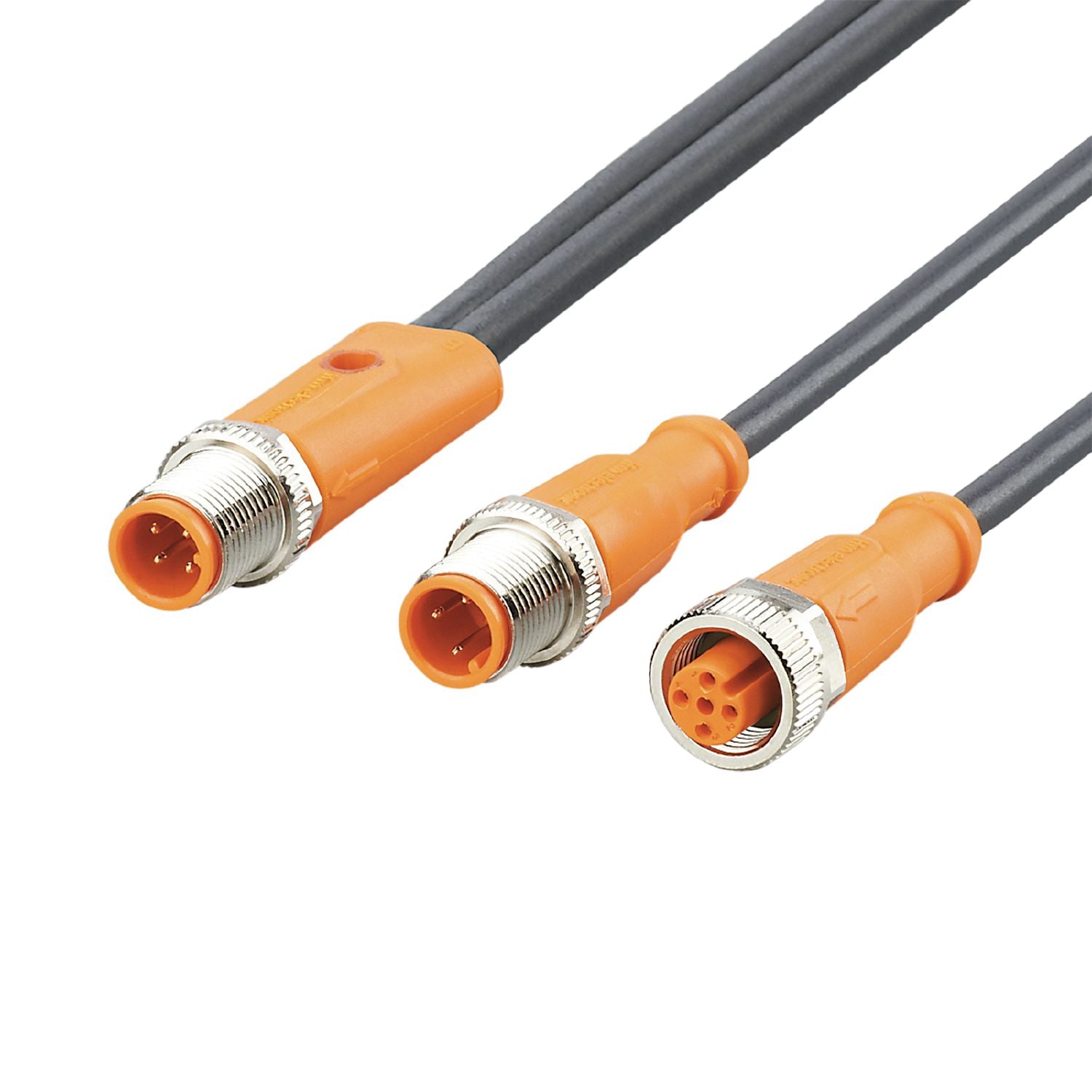

Electrical connection - plug C
Connector:M12, straight; coding: A; Moulded body: TPU, orange; Locking: threaded sleeve, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!
Electrical connection
Connection
Cable: 0.2 m, PUR, Halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) + 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - plug A
Connector:M12, straight; coding: A; Moulded body:TPU, orange; Locking: threaded sleeve, brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!
Electrical connection - socket B
Connector:M12, straight; coding: A; Moulded body:TPU, orange; Locking: Lock nut, brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart!
