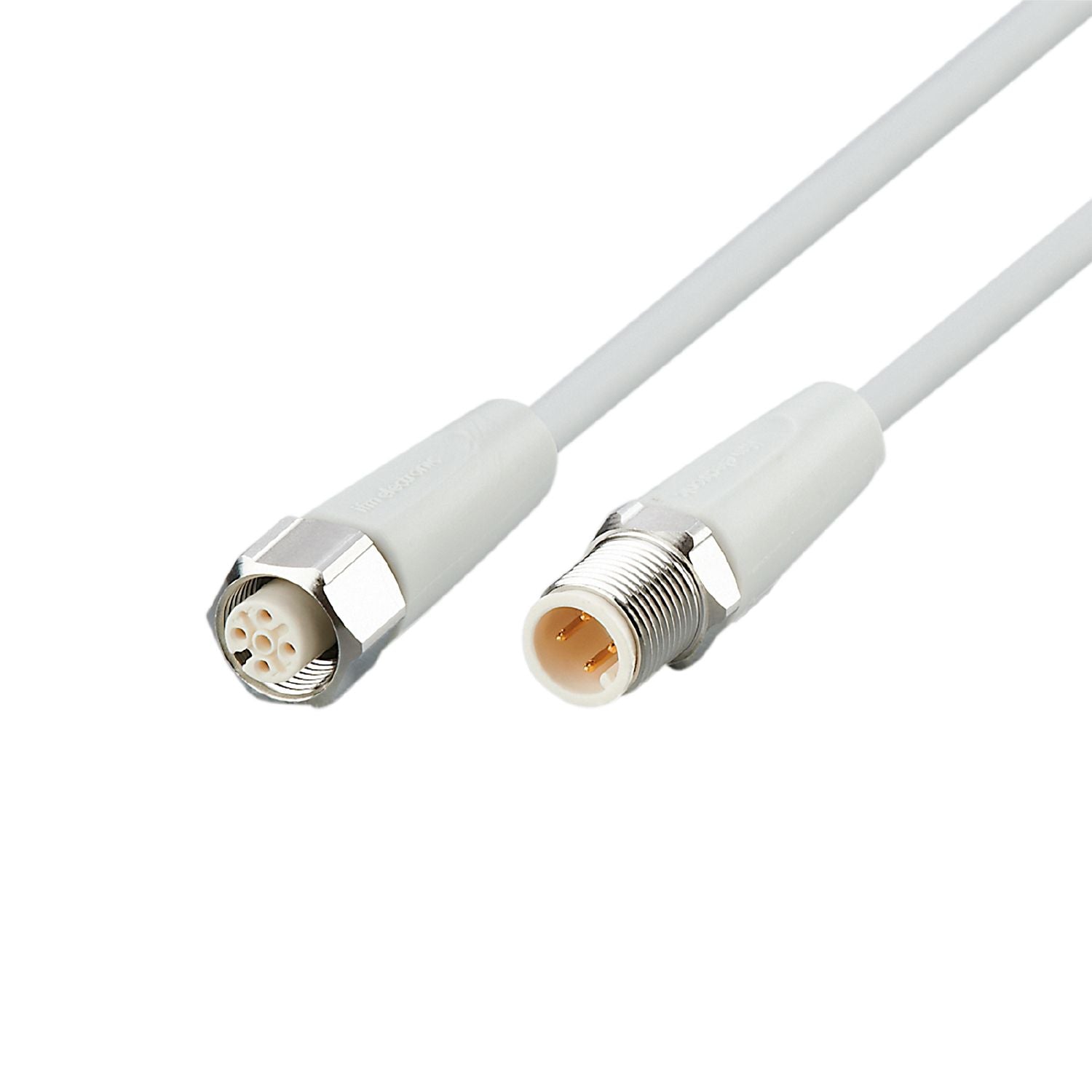

IFM EVF041 - Connection cable VDOGH040VAS00,6P04STGH040VAS

For use in hygienic and wet areas in the food industry.
Permanent, reliable sealing even when mounted without tools.
Cable sheath made of halogen-free and flame-retardant material.
Vibration and shock resistant thanks to coupling ring with locking mechanism.
Large operating temperature range and high protection rating

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application	hygienic and wet areas in the food industry
Free from silicone	yes

Operating voltage [V]	< 250 AC / < 300 DC
Protection class	II
Max. current load total [A]	4
Overall current rating (UL) [A]	3

Operating conditions

Ambient temperature [°C]	-25...100
Note on ambient temperature	cULus: ...65 °C
Ambient temperature (moving) [°C]	0...100
Note on ambient temperature (moving)	cULus: ...65 °C
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Weight [g]	49.5
Materials	PP Halogen-free
Moulded-body material	PP
Material nut	stainless steel (1.4404 / 316L)
Sealing material	EPDM
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 1 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: A; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!

Electrical connection

Connection	Cable: 0.6 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
