For use in hygienic and wet areas in the food industry
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application
hygienic and wet areas in the food industry
Free from silicone
yes
Operating voltage [V]
< 250 AC / < 300 DC
Protection class
II
Max. current load total [A]
4
Operating conditions
Ambient temperature [°C]
-25...100
Ambient temperature (moving) [°C]
5...100
Storage temperature [°C]
-25...55
Storage humidity [%]
10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
86
Dimensions [mm]
30.5 x 15.5 x 36.5
Materials
PP Halogen-free; Sealing: EPDM
Moulded-body material
PP
Material nut
stainless steel (1.4404 / 316L)
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 1 Mio.
torsional strain
± 180 °/m
Pack quantity
1 pcs.
Electrical connection
Cable: 2 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - plug

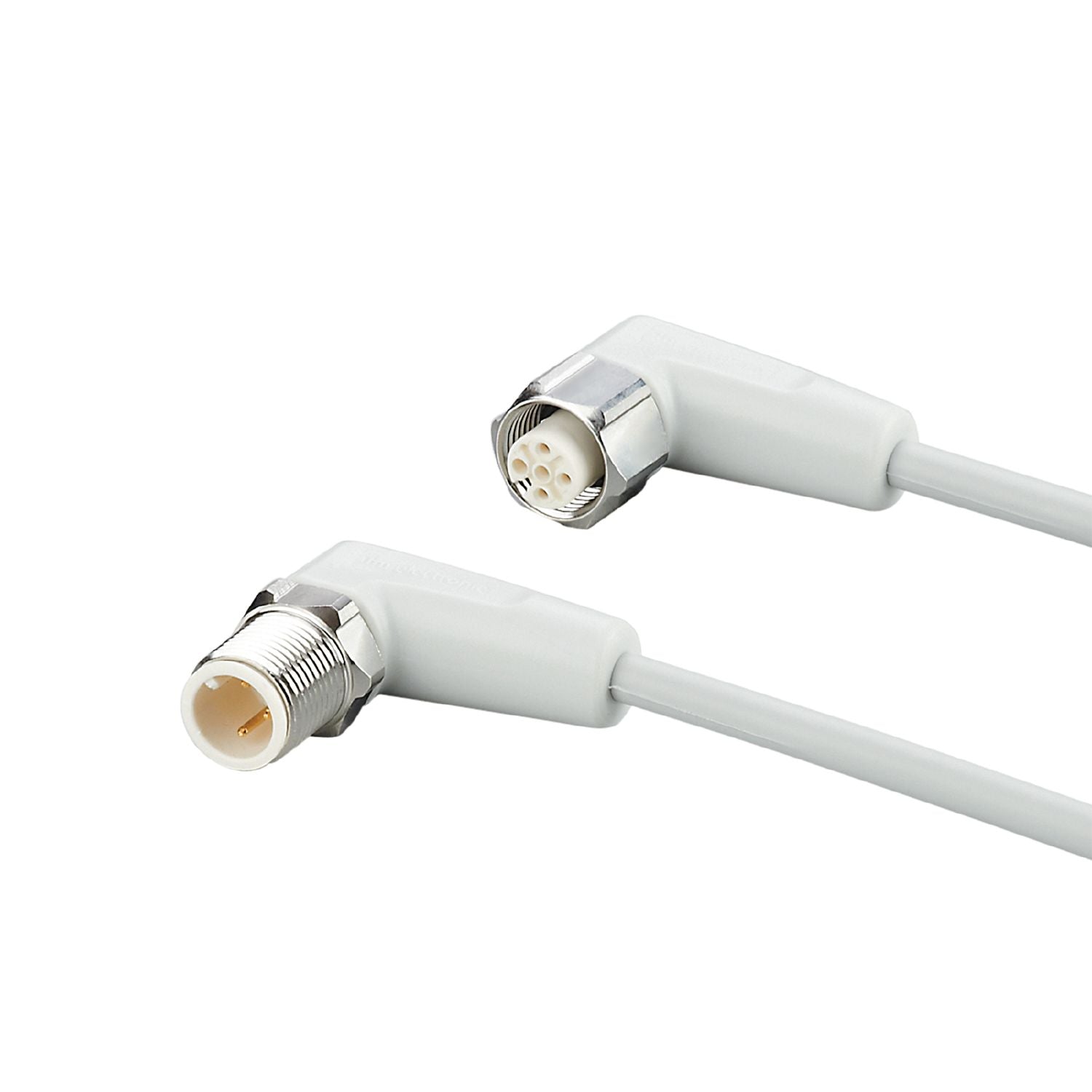

Connector: 1 x M12, angled; coding: A; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVF112-00 — 13.04.2023 —
