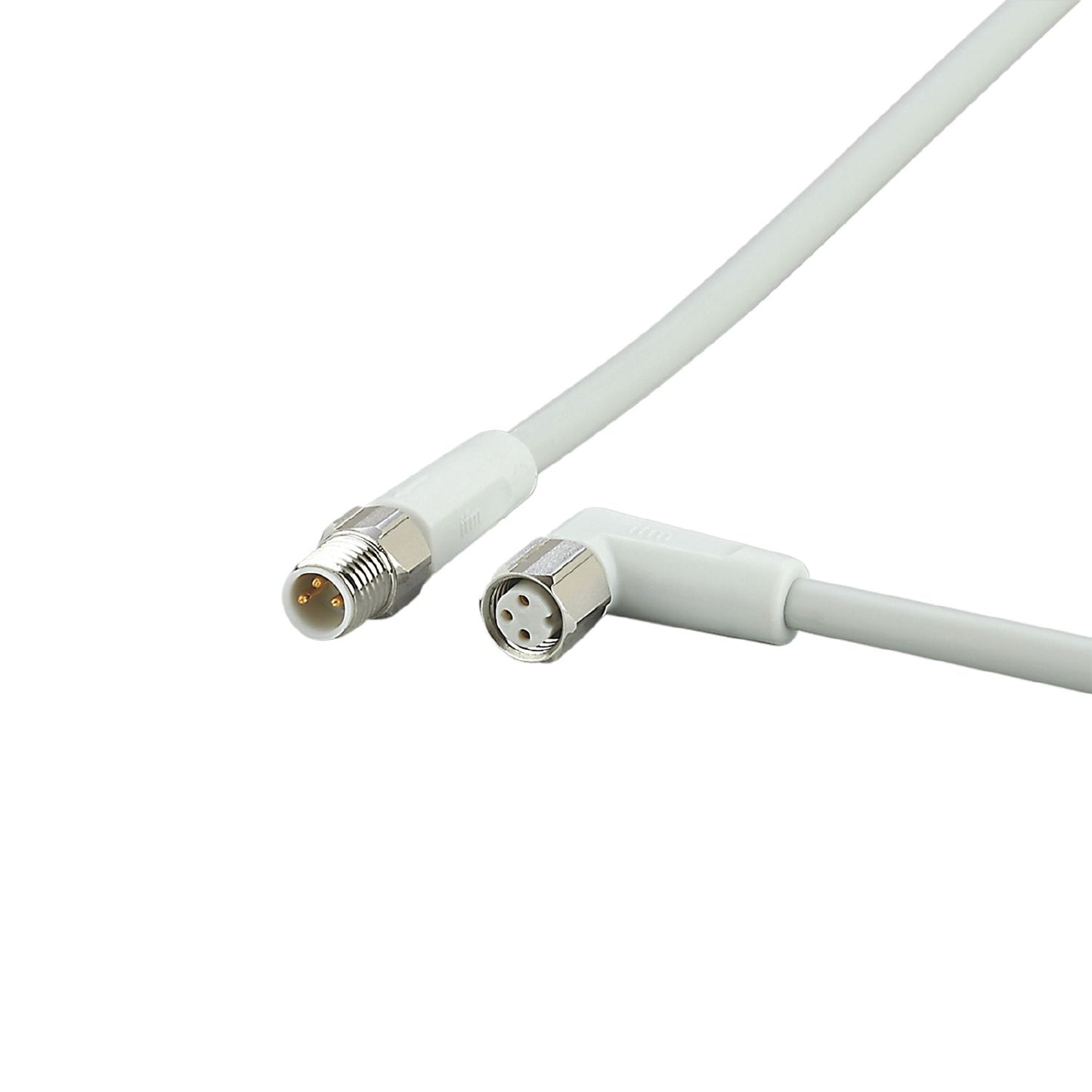

IFM EVF151 - Connection cable VDOAF030VAS0002P03STGF030VAS

For use in hygienic and wet areas in the food industry.
Permanent, reliable sealing even when mounted without tools.
Large operating temperature range and high protection rating.
Vibration and shock resistant thanks to coupling ring with locking mechanism.
Mechanical end stop to protect the O-ring from destruction

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application	hygienic and wet areas in the food industry
Free from silicone	yes

Operating voltage [V]	< 50 AC / < 60 DC;(cULus: 30 AC / 30 DC)
Protection class	III
Max. current load total [A]	3

Operating conditions

Ambient temperature [°C]	-25...80
Ambient temperature (moving) [°C]	5...80
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

UL approval	power supply Class 2

Weight [g]	72
Dimensions [mm]	10 x 10 x 36
Materials	housing: PP grey; Sealing: EPDM
Material nut	stainless steel (1.4404 / 316L)
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 10 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 1 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M8, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm

Electrical connection

Connection	Cable: 2 m, MPPE, Halogen-free, grey, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

	Connector: 1 x M8, angled; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
