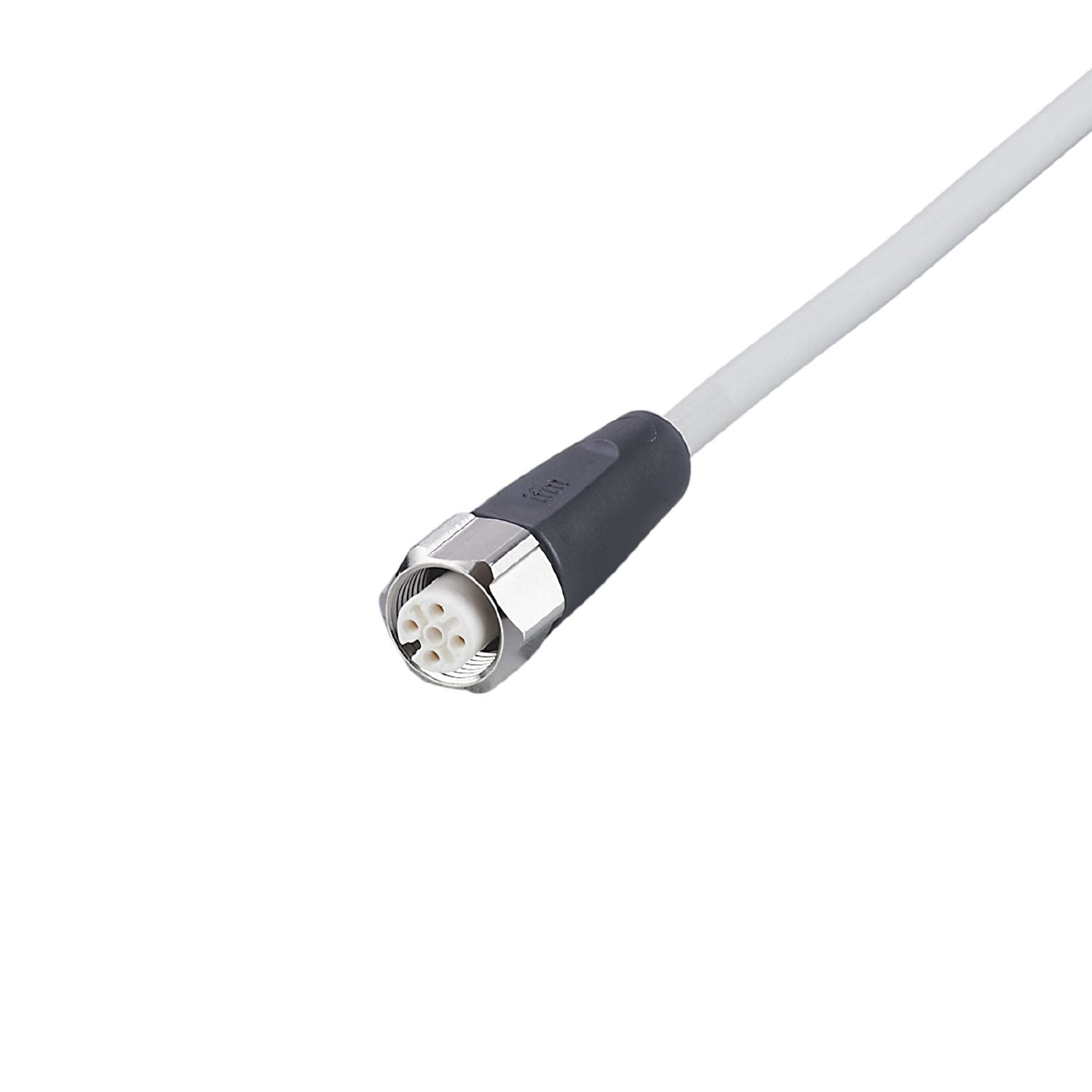

For use in hygienic and wet areas in the food industry. Permanent, reliable sealing even when mounted without tools. Cable sheath made of halogen-free and flame-retardant material. Vibration and shock resistant thanks to coupling ring with locking mechanism. Large operating temperature range and high protection rating
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application
hygienic and wet areas in the food industry
Free from silicone
yes
Operating voltage [V]
10...36 DC
Protection class
II
Max. current load total [A]
4
Outputs
Electrical design
PNP
Operating conditions
Ambient temperature [°C]
-25...100
Ambient temperature (moving) [°C]
5...100
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
170
Dimensions [mm]
15.5 x 15.5 x 45
Materials
housing: PP Halogen-free; Sealing: EPDM
Material nut
stainless steel (1.4404 / 316L)
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 1 Mio.
torsional strain
± 180 °/m
Displays / operating elements
Display
switching status
4 x LED, yellow
operation
2 x LED, green
Pack quantity
1 pcs.
Electrical connection
Cable: 5 m, MPPE, Halogen-free, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVF462-00 — 05.11.2020 —
