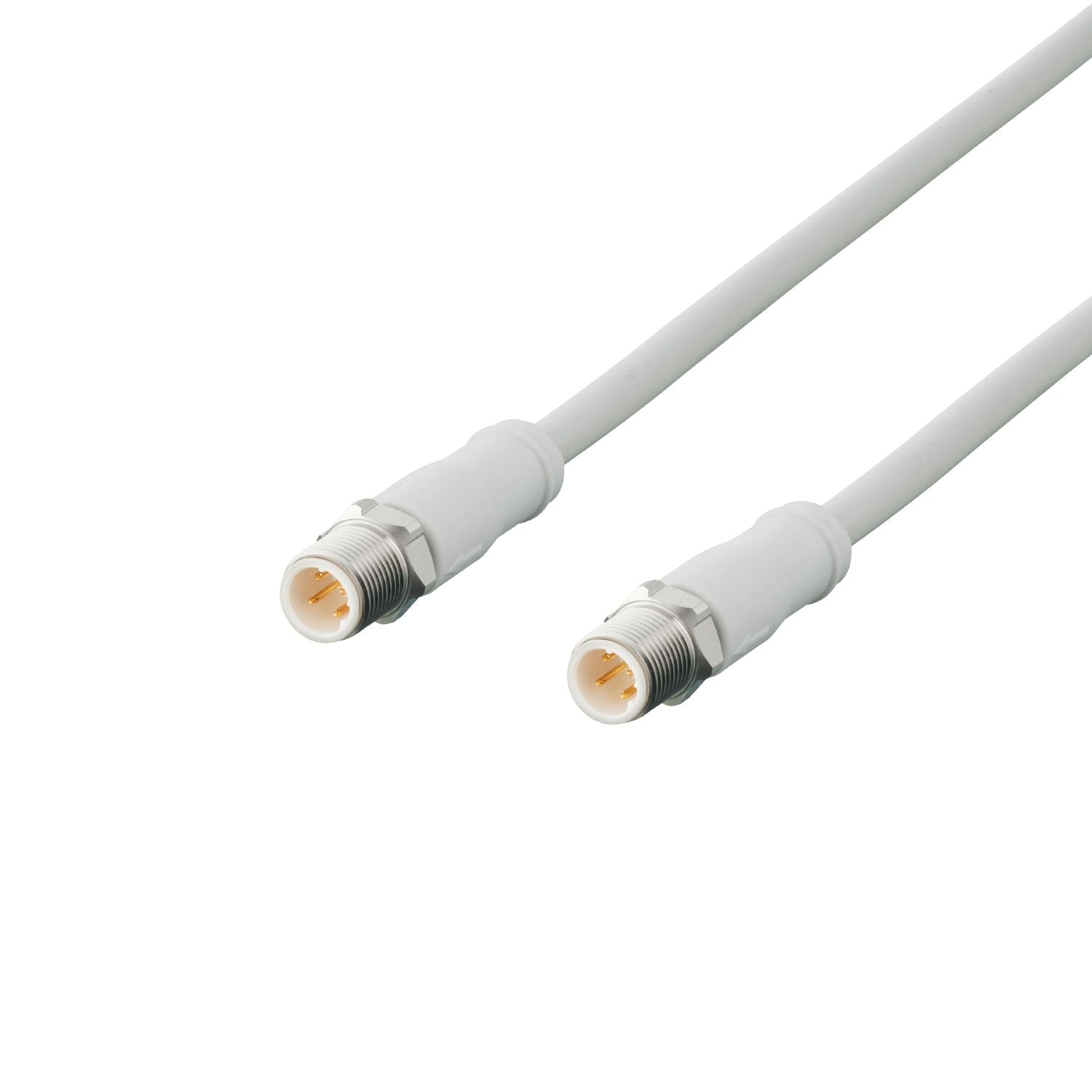

IFM EVF528 - Ethernet connection cable VSTGN040VAS0,25R04STGN040VAS

For use in hygienic and wet areas in the food industry.
Cable sheath made of halogen-free and flame-retardant material.
With robust M12 connector Industrial Ethernet.
Large operating temperature range and high protection rating.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Design	Ethernet cable, D-coded
Application	Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; hygienic and wet areas in the food industry
Free from silicone	yes

Operating voltage [V]	30 AC / 60 DC
Protection class	III
Max. current load total [A]	4
Overall current rating (UL) [A]	1.66

Operating conditions

Ambient temperature [°C]	-25...100
Note on ambient temperature	cULus: ...65 °C
Ambient temperature (moving) [°C]	0...80
Note on ambient temperature (moving)	cULus: ...65 °C
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Weight [g]	49.2
Dimensions [mm]	15.5 x 15.5 x 51.5
Materials	PP Halogen-free
Moulded-body material	PP
Material nut	stainless steel (1.4404 / 316L)
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 15 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 1 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12, straight; coding: D; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: screen connected

Electrical connection

Connection	Cable: 0.25 m, MPPE, Halogen-free, grey, Ø 6.5 mm, shielded; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm )

Electrical connection - plug

	Connector: 1 x M12, straight; coding: D; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Shielded connection cable: screen connected
