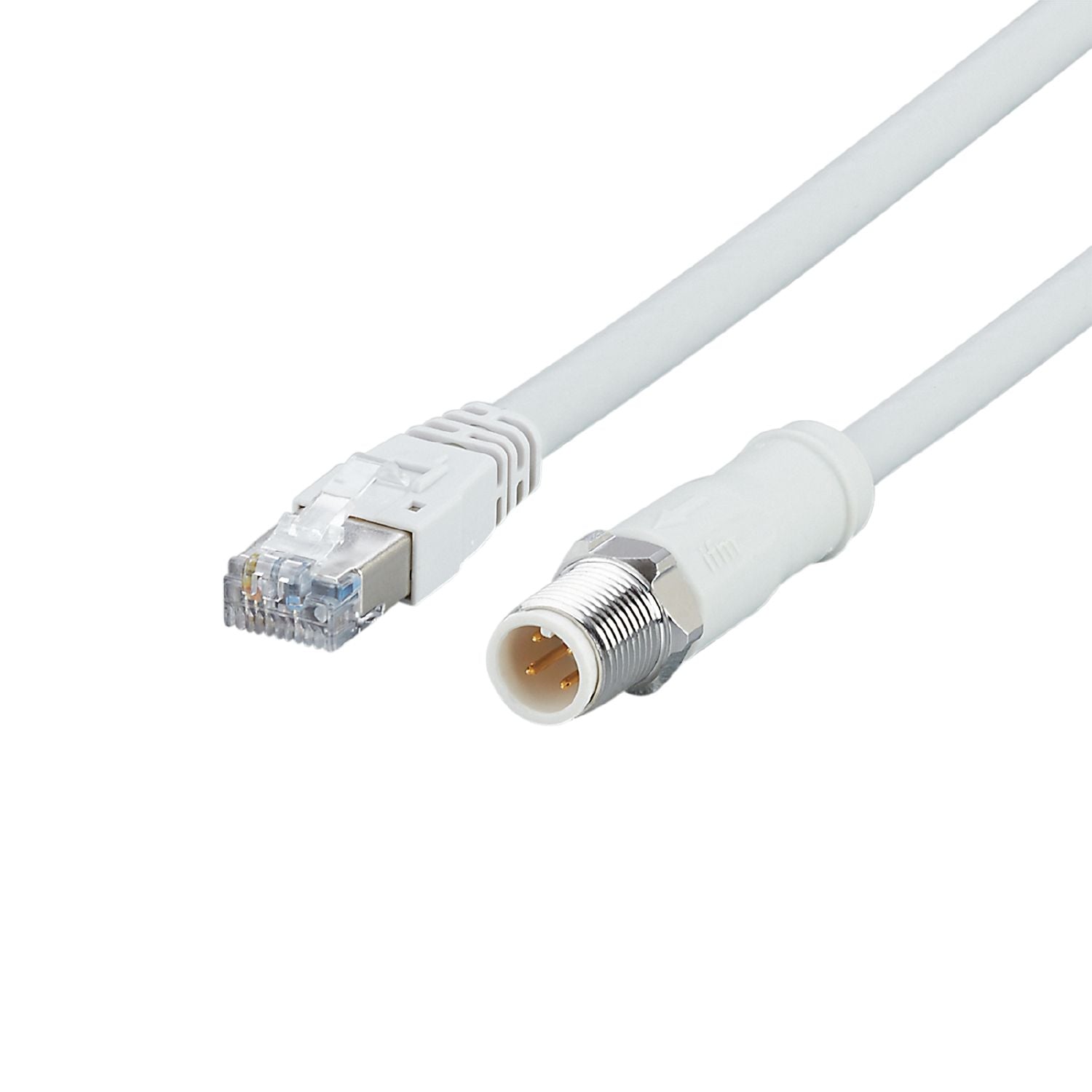

IFM EVF549 - Ethernet connection cable VSTGN040VAS00,5R04STGP040--S

For use in hygienic and wet areas in the food industry.
Cable sheath made of halogen-free and flame-retardant material.
With robust M12 connector Industrial Ethernet.
Large operating temperature range and high protection rating.
Good electromagnetic compatibility thanks to shielded cable

Special feature	Free from silicone; Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
Design	Ethernet cable, D-coded
Application	Industrial Ethernet; CAT5/CAT5e; 100 Mbit/s; hygienic and wet areas in the food industry
Free from silicone	yes

Operating voltage [V]	30 AC / 60 DC
Protection class	III
Max. current load total [A]	1.5

Operating conditions

Ambient temperature [°C]	-25...100
Note on ambient temperature	Ethernet RJ45 connector: -40...70 °C
Ambient temperature (moving) [°C]	0...80
Protection	IP 65; IP 67; IP 68; IP 69K;(M12 plug / RJ45 plug: IP 20)

Weight [g]	58.4
Materials	brass nickel-plated; housing: PP Halogen-free
Moulded-body material	PP / PC
Material nut	stainless steel (1.4404 / 316L)
Drag chain suitability	yes
Drag chain suitability	bending radius for flexible use min. 15 x cable diameter travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² bending cycles > 1 Mio. torsional strain ± 180 °/m

Pack quantity	1 pcs.

Electrical connection - plug M12

	Connector: 1 x M12, straight; coding: D; Moulded body: PP; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm

Electrical connection

Connection	Cable: 0.5 m, MPPE, Halogen-free, grey, Ø 6.5 mm, shielded; PROFINET Type C; 4 x 0.34 mm² (7 x Ø 0.25 mm )

Electrical connection - plug RJ45

	Connector: 1 x RJ45, straight; Moulded body: PC; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVF549-01 — 22.08.2019 —
