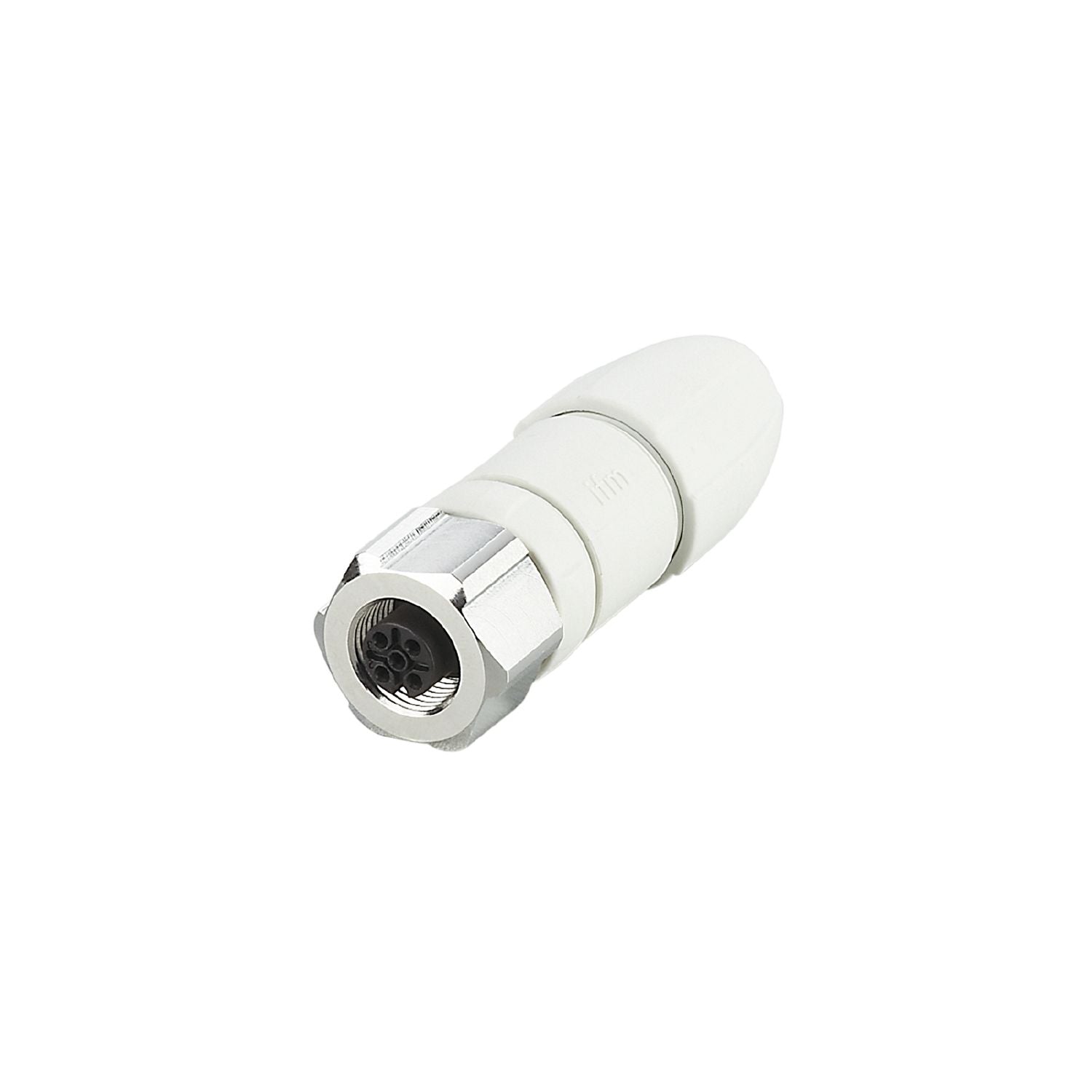

IFM EVF569 - Wirable socket SDOGH050VASFKPG

Gold-plated contacts for reliable electrical connections.
High protection rating for the requirements of harsh industrial environments.
Wide operating temperature range.
Safe cable connection with screw terminals

Special feature	Free from silicone; Gold-plated contacts
Application	hygienic and wet areas in the food industry
Free from silicone	yes

Operating voltage [V]	< 60 AC/DC
Protection class	II
Max. current load total [A]	4;(...40 °C)

Operating conditions

Ambient temperature [°C]	-25...100
Storage temperature [°C]	-25...55
Storage humidity [%]	10...100
Other climatic conditions for storage according to stated class	1K22/ DIN 60721-3-1
Protection	IP 65; IP 67; IP 68; IP 69K

Weight [g]	42
Materials	PA 6.6 grey; Sealing: EPDM
Moulded-body material	PA 6.6
Material nut	stainless steel (1.4404 / 316L)
Sealing material	EPDM

Pack quantity	1 pcs.

Electrical connection

	screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17

Electrical connection - socket

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6, grey; Locking: stainless steel (1.4404 / 316L); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!
