For use in hygienic and wet areas in the food industry. Permanent, reliable sealing even when mounted without tools. Large operating temperature range and high protection rating. Vibration and shock resistant thanks to coupling ring with locking mechanism. LEDs clearly visible even under bright lighting
Special feature
Free from silicone; Gold-plated contacts; Drag chain suitability
Application
hygienic and wet areas in the food industry
Free from silicone
yes
Operating voltage [V]
10...36 DC
Protection class
II
Max. current load total [A]
4
Outputs
Electrical design
PNP
Operating conditions
Ambient temperature [°C]
-25...100
Note on ambient temperature
cULus: ...50
Ambient temperature (moving) [°C]
5...100
Note on ambient temperature (moving)
cULus: ...50
Protection
IP 65; IP 67; IP 68; IP 69K
Tests / approvals
MTTF [years]
20027
Weight [g]
93.4
Dimensions [mm]
26.5 x 15.5 x 36.5
Materials
housing: PVC black transparent; Sealing: EPDM
Material nut
stainless steel (1.4404 / 316L)
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 1 Mio.
torsional strain
± 180 °/m
Displays / operating elements
Display
switching status
2 x LED, yellow
operation
1 x LED, green
Pack quantity
1 pcs.

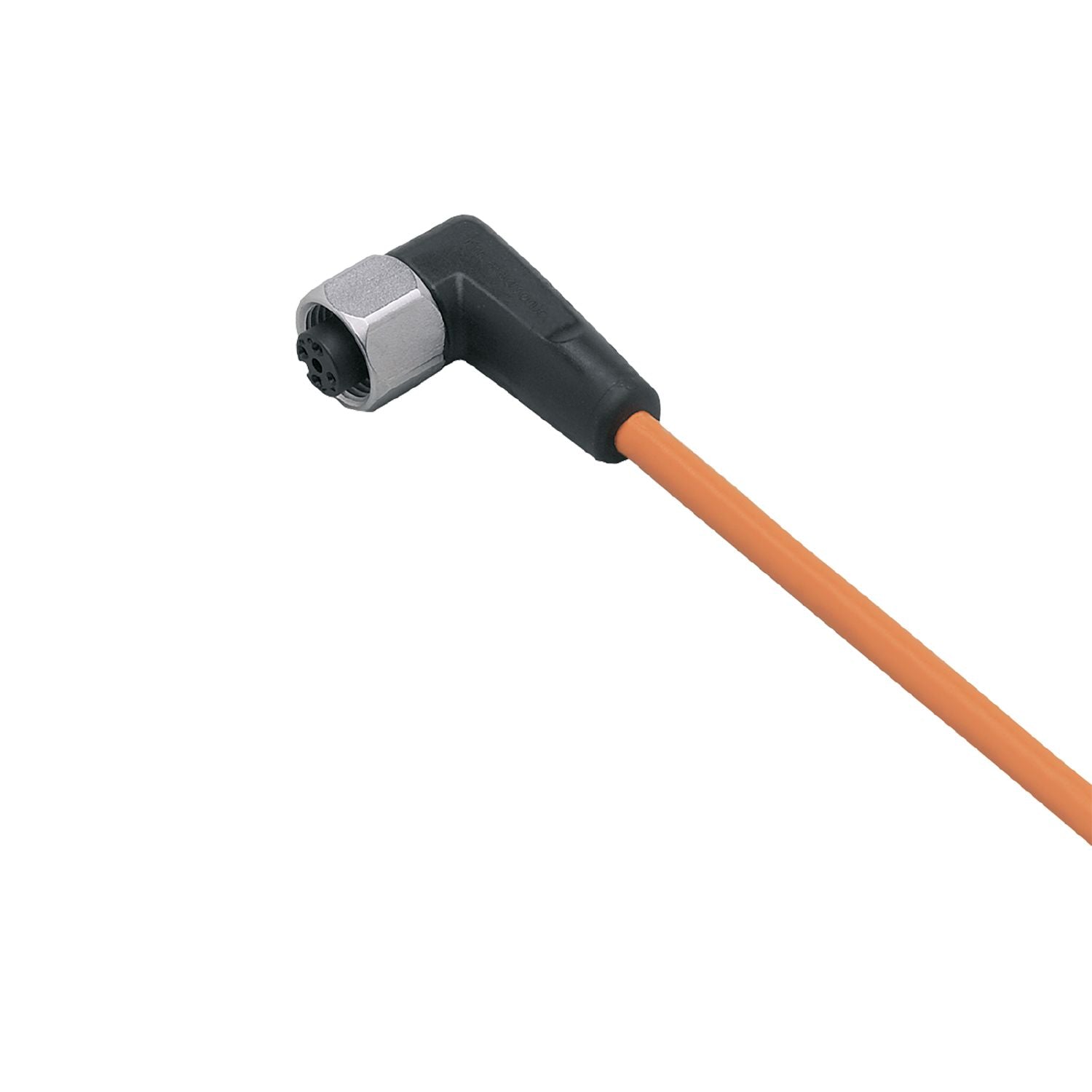

Electrical connection
Cable: 2 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
