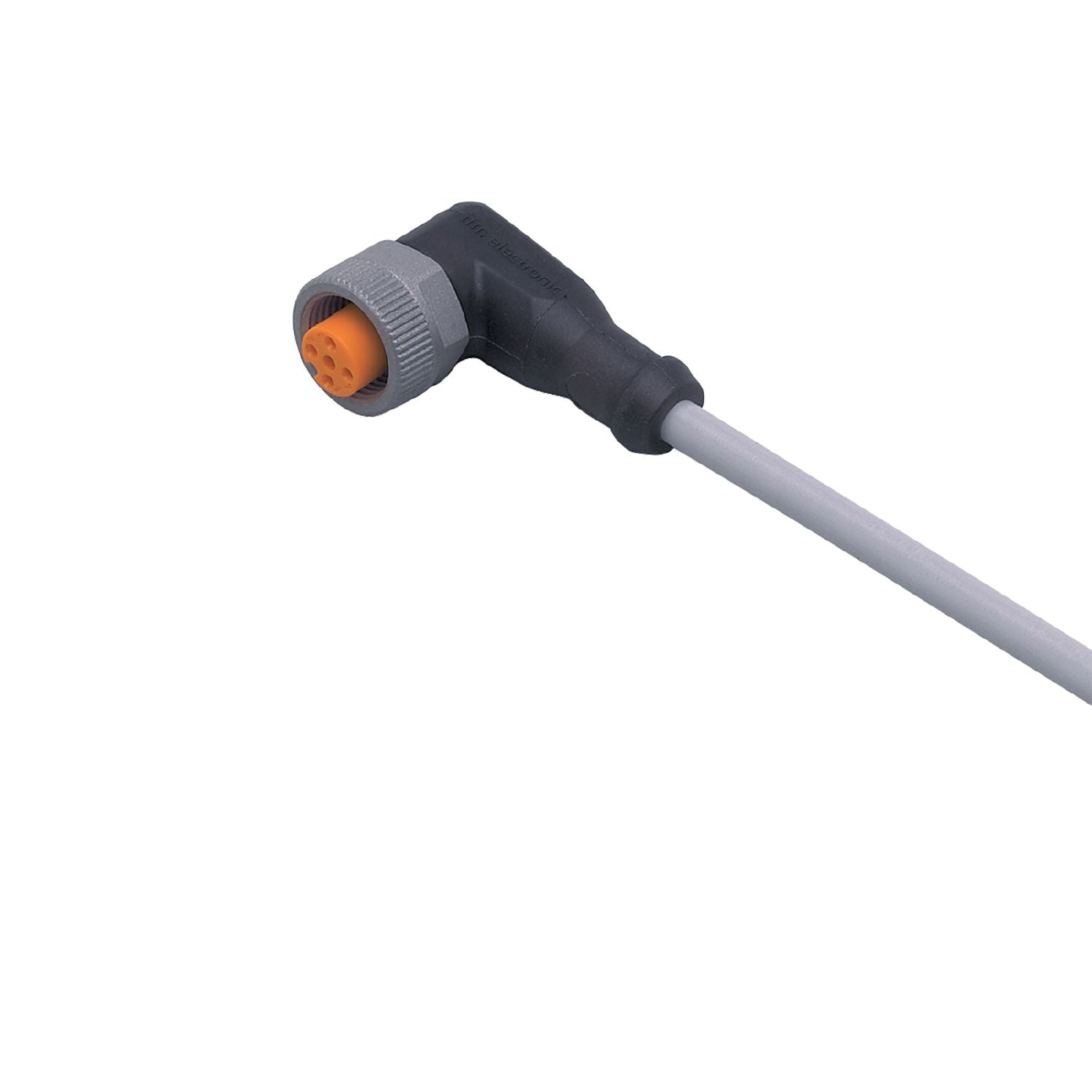

Weld-slag resistant PUR cable with drag chain suitability. Nut with special weld-slag resistant coating. High protection rating for the requirements of harsh industrial environments. Vibration and shock resistant thanks to coupling ring with locking mechanism. LEDs clearly visible even under bright lighting
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application
welding applications
Free from silicone
yes
Operating voltage [V]
10...36 DC
Protection class
II
Max. current load total [A]
4
Outputs
Electrical design
PNP
Operating conditions
Ambient temperature [°C]
-25...90
Note on ambient temperature
cULus: ...75 °C
Ambient temperature (moving) [°C]
-25...90
Note on ambient temperature (moving)
cULus: ...75 °C
Protection
IP 65; IP 67; IP 68; IP 69K
Tests / approvals
MTTF [years]
20027
Weight [g]
83.6
Dimensions [mm]
26.5 x 15.5 x 36.5
Materials
housing: TPU black transparent; Sealing: FKM
Material nut
brass, anti-spatter
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 2 Mio.
torsional strain
± 180 °/m
Displays / operating elements
Display
switching status
2 x LED, yellow
operation
1 x LED, green
Pack quantity
1 pcs.
Electrical connection
Cable: 2 m, PUR, Halogen-free, grey, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm )
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVW007-00 — 05.11.2020 —
