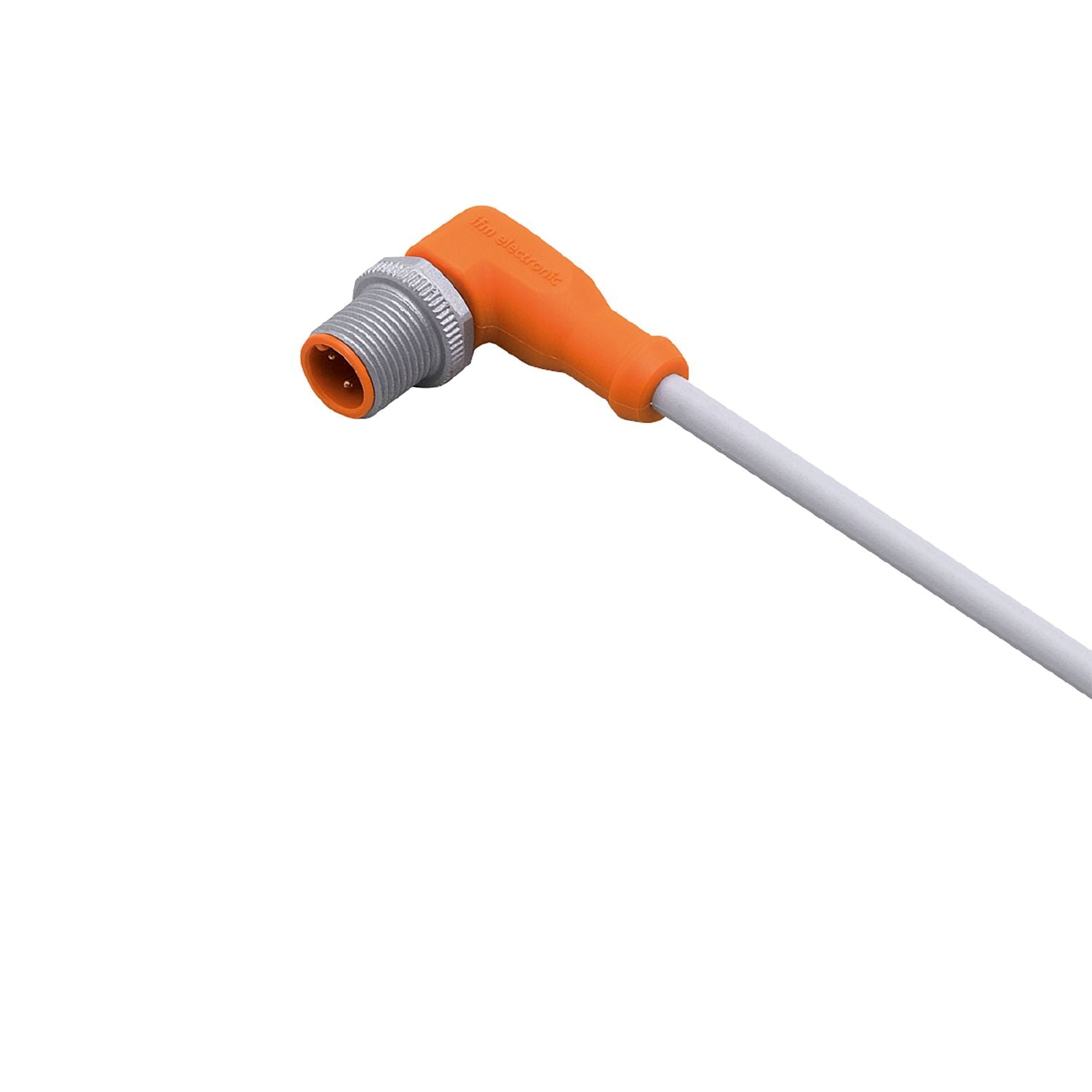

Weld-slag resistant PUR cable with drag chain suitability. Cable gland with special weld-slag resistant coating. High protection rating for the requirements of harsh industrial environments. Vibration and shock resistant thanks to coupling ring with locking mechanism. Mechanical end stop to protect the O-ring from destruction
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Application
welding applications
Free from silicone
yes
Operating voltage [V]
< 60 AC/DC
Protection class
II
Max. current load total [A]
4
Overall current rating (UL) [A]
3
Operating conditions
Ambient temperature [°C]
-25...90
Note on ambient temperature
cULus: ...75 °C
Ambient temperature (moving) [°C]
-25...90
Note on ambient temperature (moving)
cULus: ...75 °C
Storage temperature [°C]
-25...55
Storage humidity [%]
10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection
IP 65; IP 67; IP 68; IP 69K
Weight [g]
95.8
Dimensions [mm]
30.5 x 15.5 x 36.5
Materials
housing: TPU orange; Sealing: FKM
Material nut
brass, anti-spatter
Drag chain suitability
yes
Drag chain suitability
bending radius for flexible use
min. 10 x cable diameter
travel speed
max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles
> 2 Mio.
torsional strain
± 180 °/m
Pack quantity
1 pcs.
Electrical connection
Cable: 2 m, PUR, Halogen-free, grey, Ø 5.1 mm; not irradiated (can be recycled); resistant to welding sparks; 5 x 0.34 mm² (42 x Ø 0.1 mm )
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EVW021-00 — 13.04.2023 —
