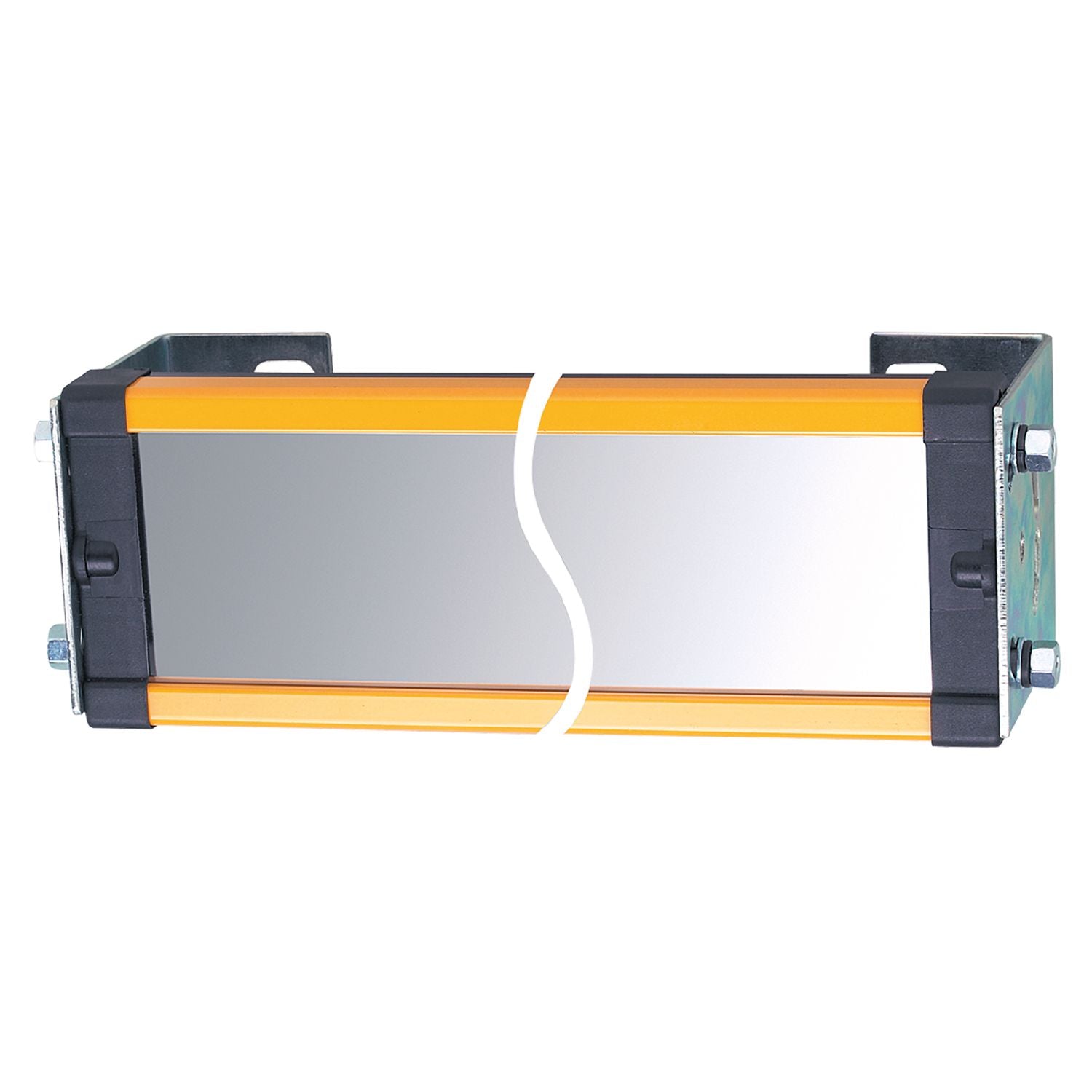

IFM EY1006 - Corner mirror for safety light grids DEFLECTION MIRROR 1060 LENGTH

Can be combined with safety light grids and safety light curtains.
Reliable deflection of the light beam.
Protection of hazardous areas from several sides with reduced wiring.
Robust design for use in harsh industrial environments

Design	for safety light grids

Operating conditions

Ambient temperature [°C]	-10...55

Weight [g]	5330
Dimensions [mm]	1102 x 110 x 36
Materials	aluminium epoxy-powder coated; plastics; Accessories: steel galvanised
Length L [mm]	1060

Accessories

Items supplied	screws: 4 x M8 hexagon nuts: 4 x M8 washers: 4

Pack quantity	1 pcs.

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EY1006-00 — 27.08.2021 —
