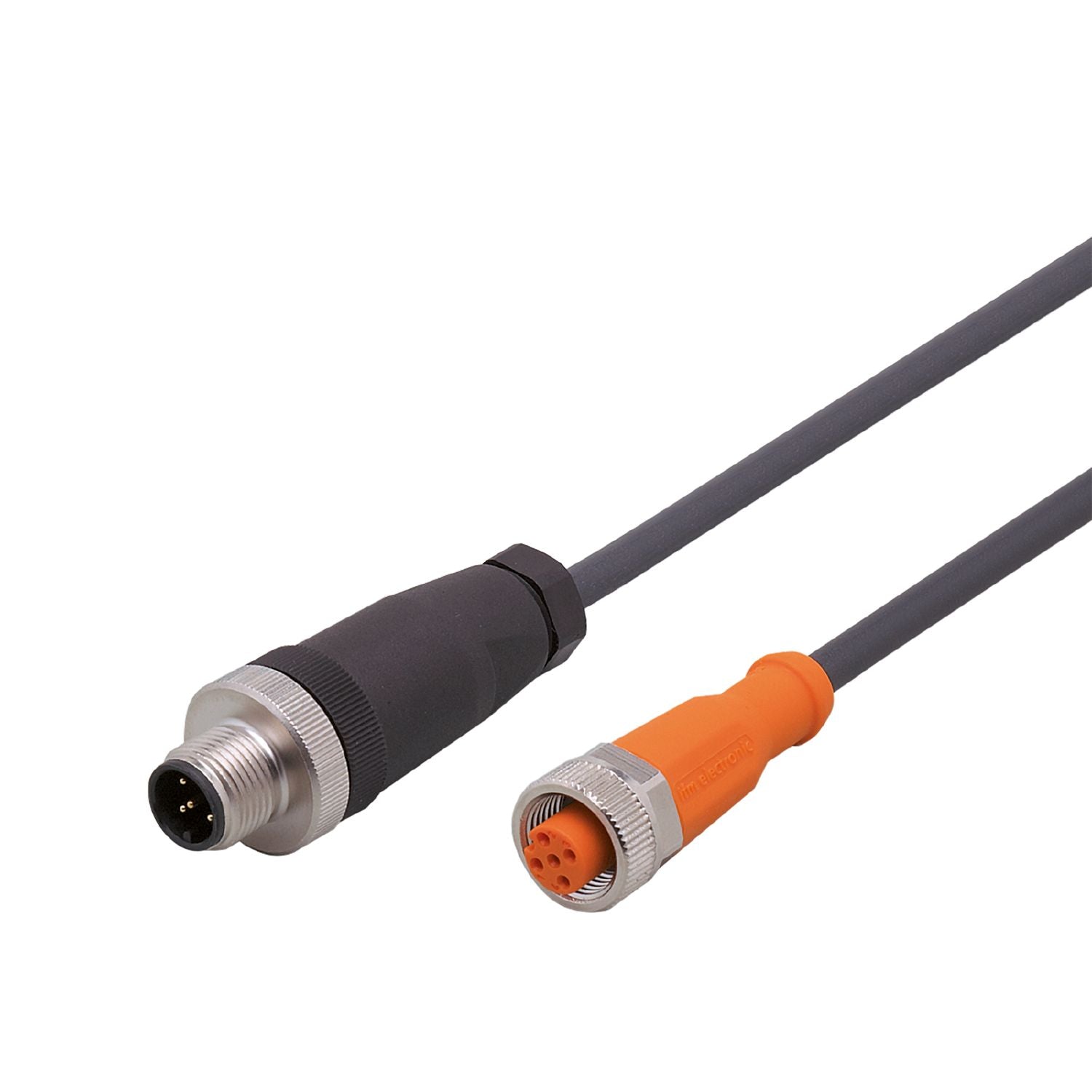

IFM EY3091 - Connection cable for the connection of safety light curtains ADAPTER CABLE TRANSM.HIGH RANG

For the connection of safety light grids and safety light curtains.
Permanent, reliable sealing even when mounted without tools.
High protection rating for the requirements of harsh industrial environments.
Vibration and shock resistant thanks to coupling ring with locking mechanism.
Mechanical end stop to protect the O-ring from destruction

Special feature	Free from silicone; Halogen-free; Gold-plated contacts
Design	For the connection of safety light curtains / safety light grids with OSSD, for transmitters
Application	configured for "long range"
Free from silicone	yes

Operating voltage [V]	< 36 DC
Protection class	II
Max. current load total [A]	4;(...40 °C)

Operating conditions

Protection	IP 67

Weight [g]	44.7
Materials	TPU orange; PA
Moulded-body material	TPU / PA
Material nut	brass, nickel-plated

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.1 m, PUR, Halogen-free, black, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

Connection	Connector: 1 x M12, straight; coding: A; Moulded body: TPU / PA, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...0.7 Nm

Electrical connection - socket

	Connector: 1 x M12, straight; coding: A; Moulded body: TPU / PA, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EY3091-00 — 23.06.2009 —
