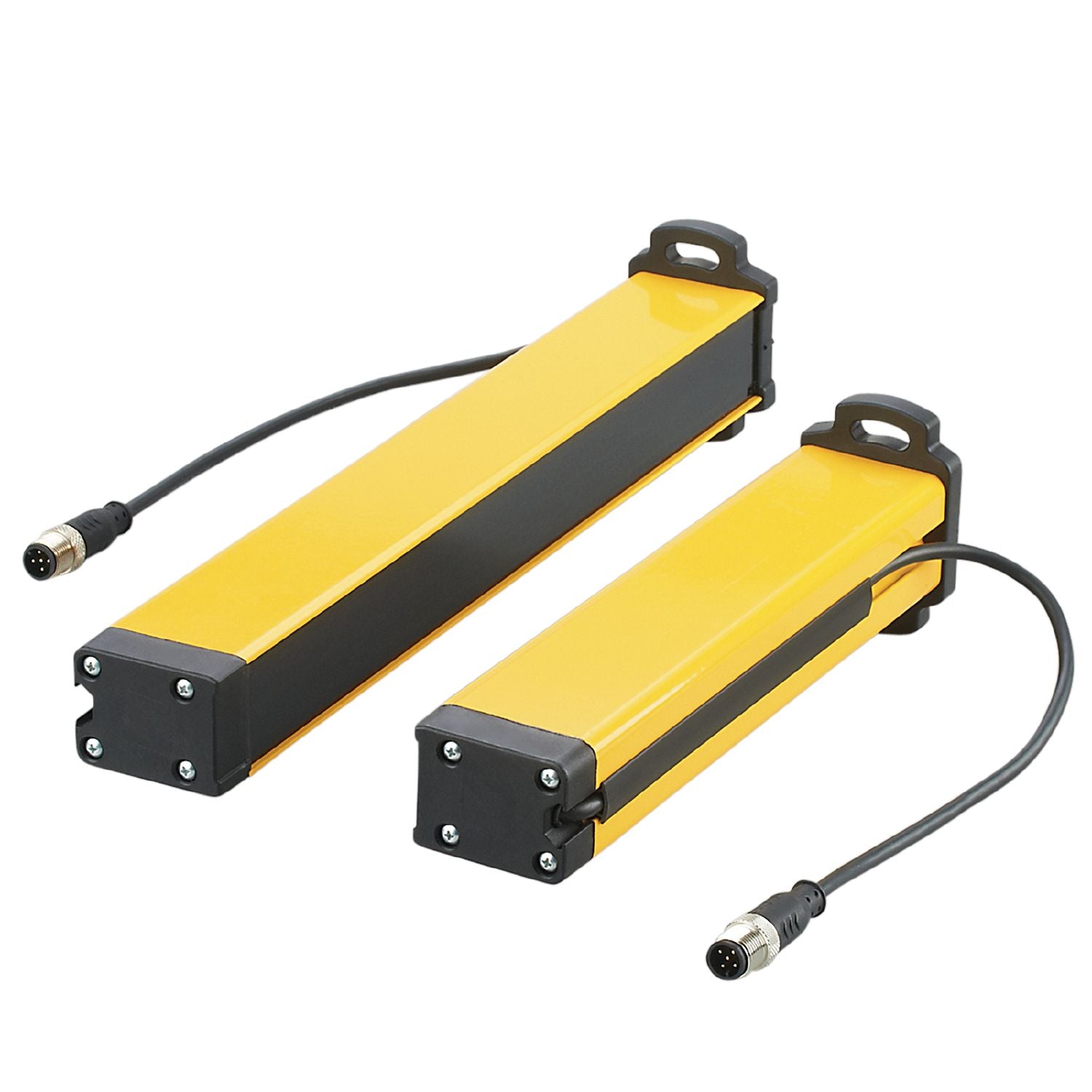

IFM EY5010 - muting arm set 2X-THROUGH-BEAM-SENSORS

Type of light	infrared light

Design	crossbeam muting with two through-beam sensors
Function principle	Through-beam sensor

Operating voltage [V]	19.2...28.8 DC
Current consumption [mA]	120;(transmitter: 60; receiver: 60)
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	940

Outputs

Electrical design	PNP
Output function	dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	0.5
Permanent current rating of switching output DC [mA]	100
Short-circuit protection	yes
Overload protection	yes

Detection zone

Range [m]	< 2.5

Operating conditions

Ambient temperature [°C]	-30...55
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2

Weight [g]	3000
Materials	aluminium; polypropylene
Lens material	polycarbonate-ABS

Pack quantity	4 pcs.

Electrical connection - receiver 1

Connection	Connector: 1 x M12; coding: A; Moulded body: blue

Electrical connection - receiver 2

Connection	Connector: 1 x M12; coding: A; Moulded body: red

Electrical connection - transmitter 1

Connection	Connector: 1 x M12; coding: A; Moulded body: blue

Electrical connection - transmitter 2

Connection	Connector: 1 x M12; coding: A; Moulded body: red

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EY5010-00 — 25.03.2019 —
