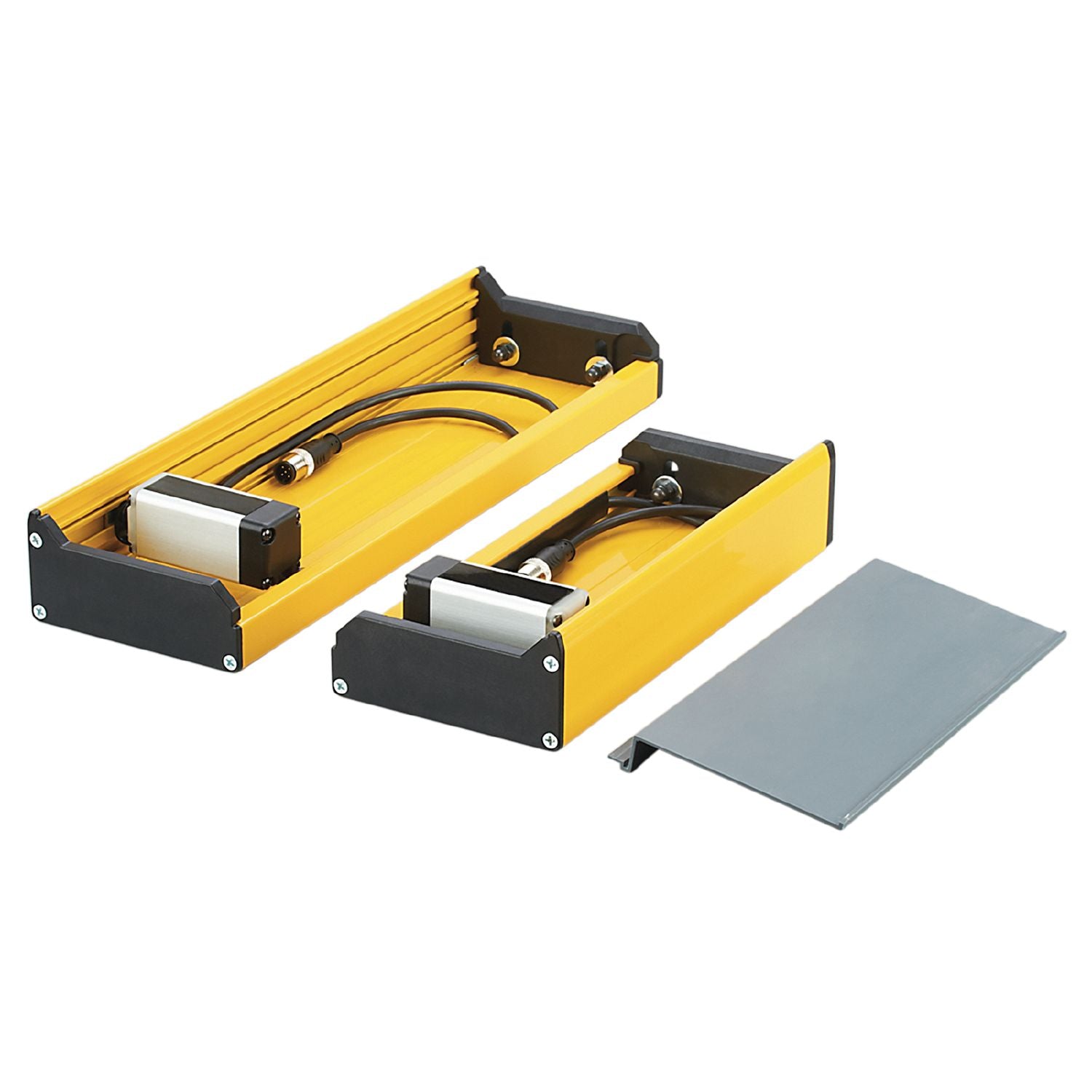

crossbeam muting with two crossbeam multi-beam light barriers
Function principle
Through-beam sensor
Operating voltage [V]
19.2...28.8 DC
Current consumption [mA]
30
Protection class
III
Reverse polarity protection
yes
Type of light
infrared light
Wave length [nm]
940
Outputs
Electrical design
PNP
Output function
dark-on mode
Max. voltage drop switching output DC [V]
0.5
Permanent current rating of switching output DC [mA]
100
Short-circuit protection
yes
Overload protection
yes
Detection zone
Range [m]
< 3.5
Operating conditions
Ambient temperature [°C]
-30...55
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
Weight [g]
3540
Materials
aluminium; polypropylene
Lens material
polycarbonate-ABS
Displays / operating elements
Display
transmitter
LED, yellow
receiver
LED, green/red
Pack quantity
4 pcs.
Electrical connection - receiver 1
Connection
Connector: 1 x M12; coding: A; Moulded body: blue
Electrical connection - receiver 2
Connection
Connector: 1 x M12; coding: A; Moulded body: red
Electrical connection - transmitter 1
Connection
Connector: 1 x M12; coding: A; Moulded body: blue
Electrical connection - transmitter 2
Connection
Connector: 1 x M12; coding: A; Moulded body: red
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — EY5020-00 — 25.03.2019 —
