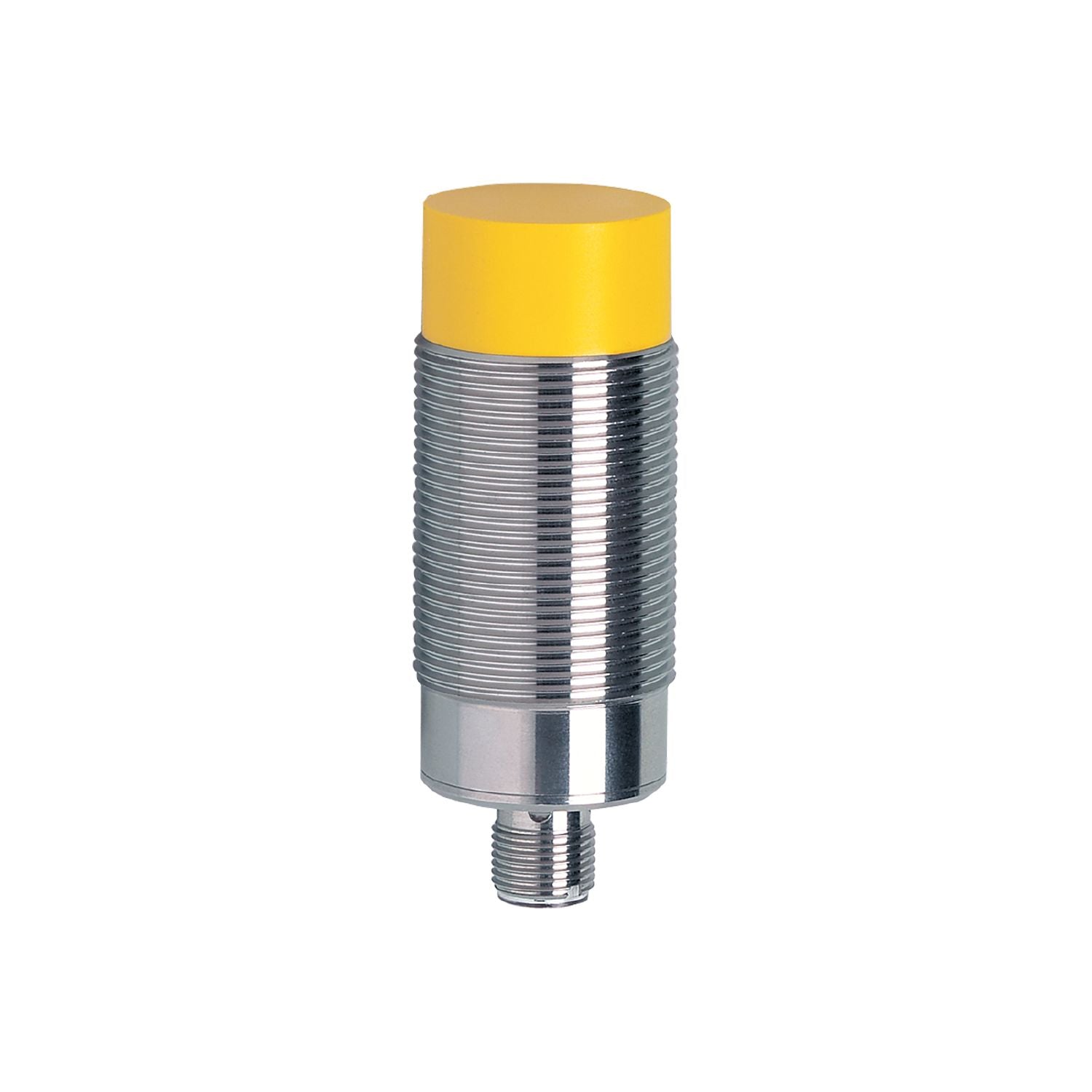

For ensuring machine safety. Certified to the following standards: EN 60947-5-3, IEC 61508 and ISO 13849. No special actuator for electronic fail-safe sensors required. Connection to safety PLC and safe evaluation units
Electrical design
PNP
Output function
2 x OSSD (A1 and A2)
Enable zone [mm]
6...12
Housing
threaded type
Dimensions [mm]
M30 x 1.5 / L = 80
Special feature
Gold-plated contacts
Type of operation
continuous operation (maintenance-free)
Safety-related function
safe state when undamped
Application
industrial application
Operating voltage [V]
19.2...30 DC
Rated insulation voltage [V]
30
Current consumption [mA]
< 30
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
5000
Outputs
Electrical design
PNP
Output function
2 x OSSD (A1 and A2)
Max. voltage drop switching output DC [V]
2.5;(100 mA)
Permanent current rating of switching output DC [mA]
100
Output data
Interface type C class 0
Output voltage at 24 V
compatible with EN 61131-2 inputs type 1, 2, 3
Short-circuit protection
yes
Max. capacitive load CL_max [nF]
20
Detection zone
Enable zone [mm]
6...12
Safe switching-off distance s(ar) [mm]
30
Response times
Response time to safety request [ms]
50
Response time when approaching the enable zone [ms]
200
Risk time (response time for safety-related faults) [ms]
100
Operating conditions
Applications
class C to EN 60654-1 weatherproof application
Ambient temperature [°C]
-25...70
Note on ambient temperature
operational life ≤ 87600 h
Ambient temperature [°C]
10...40
Note on ambient temperature
operational life ≤ 175200 h
Rate of temperature change [K/min]
0.5
Max. relative air humidity [%]
briefly: 5...95 %; permanent: 5...70 %
Air pressure [kPa]
80...106
Max. height above sea level [m]
2000
Ionising radiation
not permissible
Salt spray
no
Protection
IP 68; IP 69K
Tests / approvals
EMC
IEC 60947-5-2
IEC 60947-5-3
EN 61000-4-2 ESD
6 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
20 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 61000-4-8
30 A/m
EN 55011
class B
Shock resistance
IEC 60947-5-2
Vibration resistance
IEC 60947-5-2
Safety classification
Complies with the requirements
ISO 13849-1: 2015 category 3, PL e
IEC 61508 SIL 3
IEC 62061 SIL 3
Mission time TM [h]
≤ 175200
Mission time TM (additional indication)
20 years
PFH [1/h]
1E-08
Weight [g]
259.5
Housing
threaded type
Mounting
non-flush mountable
Dimensions [mm]
M30 x 1.5 / L = 80
Thread designation
M30 x 1.5
Materials
stainless steel (1.4404 / 316L); PBT
Displays / operating elements
Display
operation
1 x LED, green
signal
1 x LED, yellow
Accessories
Items supplied
lock nuts: 2
Remarks
Unless stated otherwise, all data refer to the reference target plate to IEC 60947-5-2 over the whole temperature range.
(FE360 = ST37K) 45x45x1 mm
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
