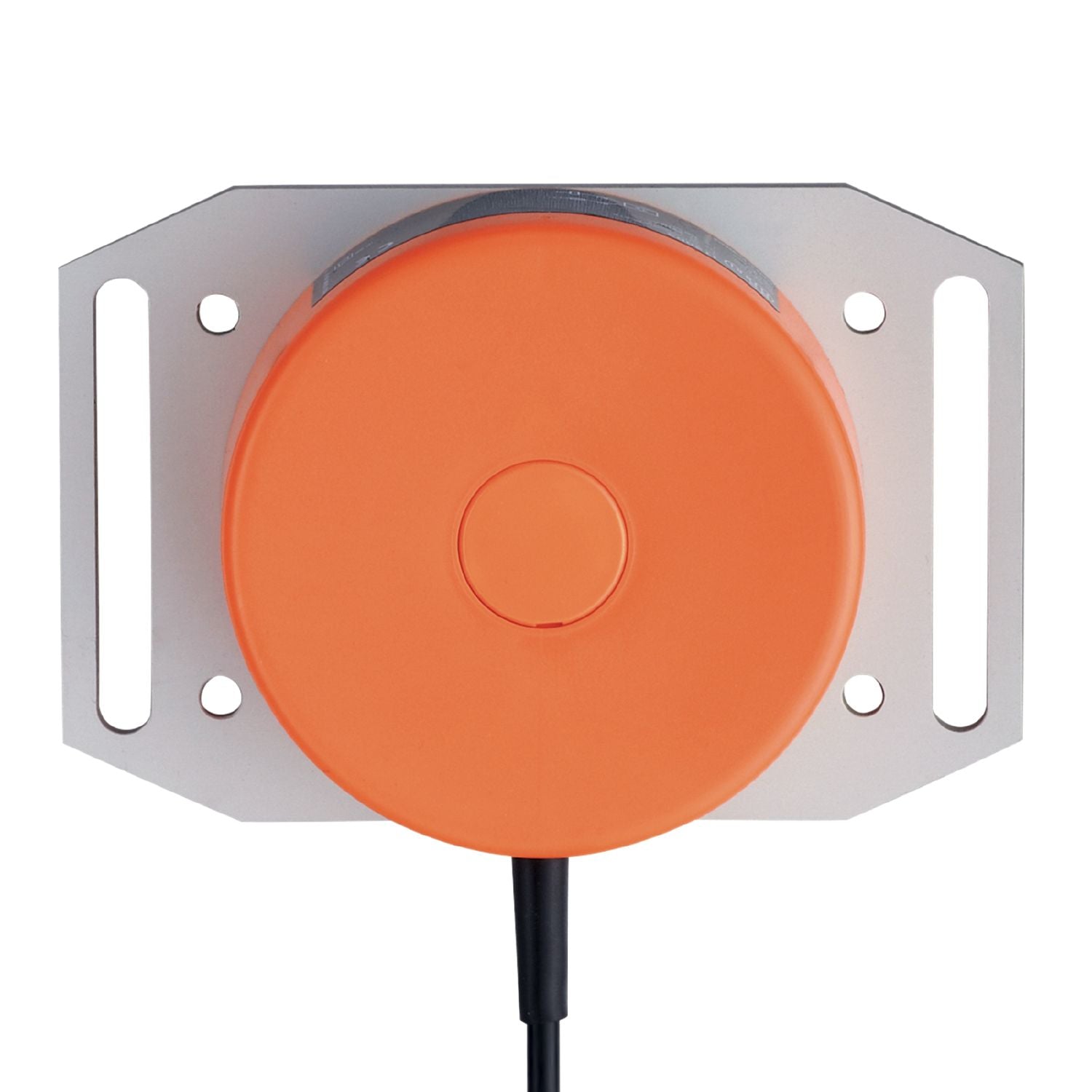

IFM I17004 - Inductive area sensor SIT-3070-ANKG/A-PLATE

Long sensing range of 70 mm.
Active base with Ø 100 mm.
For applications in the steel and metal industries.
Easy setting of the sensing range via potentiometer.
DC version

Electrical design	NPN
Output function	normally open
Sensing range [mm]	20...70
Housing	cylindrical
Dimensions [mm]	Ø 100 / L = 45

Operating voltage [V]	10...36 DC
Current consumption [mA]	15;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	5
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	20...70
Sensing range adjustable	yes
Factory setting sensing range [mm]	70
Real sensing range Sr [mm]	70 ± 10 %

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2

Weight [g]	685.5
Housing	cylindrical
Mounting	non-flush mountable
Type of mounting	with mounting plate
Dimensions [mm]	Ø 100 / L = 45
Materials	PBT; Mounting plate: aluminium anodised

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.5 mm²
