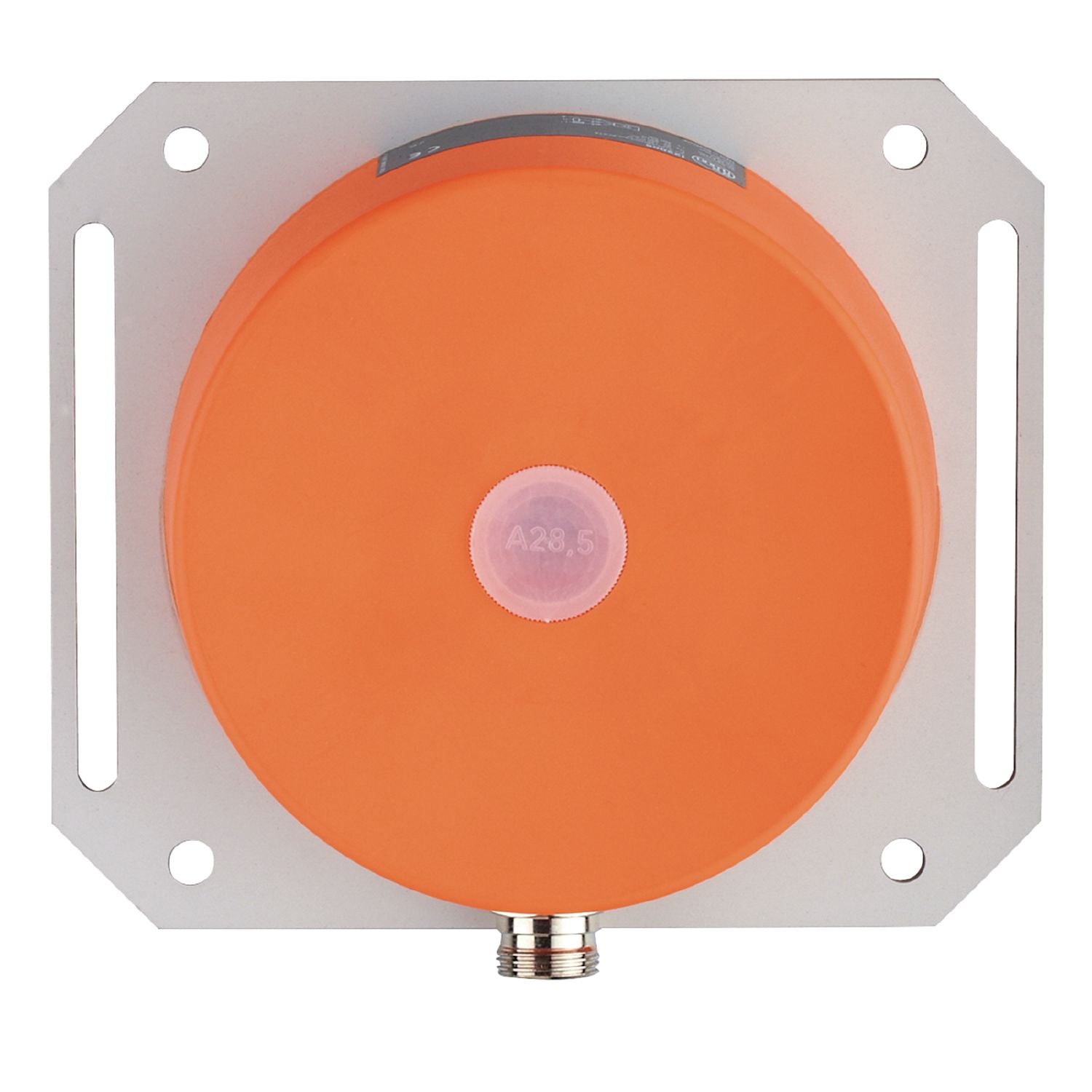

IFM I22008 - Inductive sensor SIY-2120-ABOW/LS/A-PLATE

Easy setting of the sensing range via potentiometer.
For applications in the steel and metal industries.
With AC output for use in AC power mains.
Long sensing range of 120 mm.
Active base with Ø 164 mm

Output function	normally open
Sensing range [mm]	30...120
Housing	cylindrical
Dimensions [mm]	Ø 164 / L = 68

Frequency AC [Hz]	47...63
Operating voltage [V]	90...250 AC
Protection class	I
Reverse polarity protection	no

Outputs

Output function	normally open
Max. voltage drop switching output AC [V]	11
Minimum load current [mA]	15
Max. leakage current [mA]	6
Permanent current rating of switching output AC [mA]	200;(250 (...50 °C))
Short-time current rating of switching output [mA]	1500;(10 ms / 0,5 Hz)
Switching frequency AC [Hz]	3
Short-circuit proof	no
Overload protection	no

Detection zone

Sensing range [mm]	30...120
Sensing range adjustable	yes
Factory setting sensing range [mm]	120
Real sensing range Sr [mm]	120 ± 10 %

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2

Weight [g]	1578
Housing	cylindrical
Mounting	non-flush mountable
Type of mounting	with mounting plate
Dimensions [mm]	Ø 164 / L = 68
Materials	housing: PBT; Mounting plate: aluminium anodised

Displays / operating elements

Display	switching status 1 x LED, yellow

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Remarks	Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x 7/8"; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — I22008-01 — 19.09.2014 —
