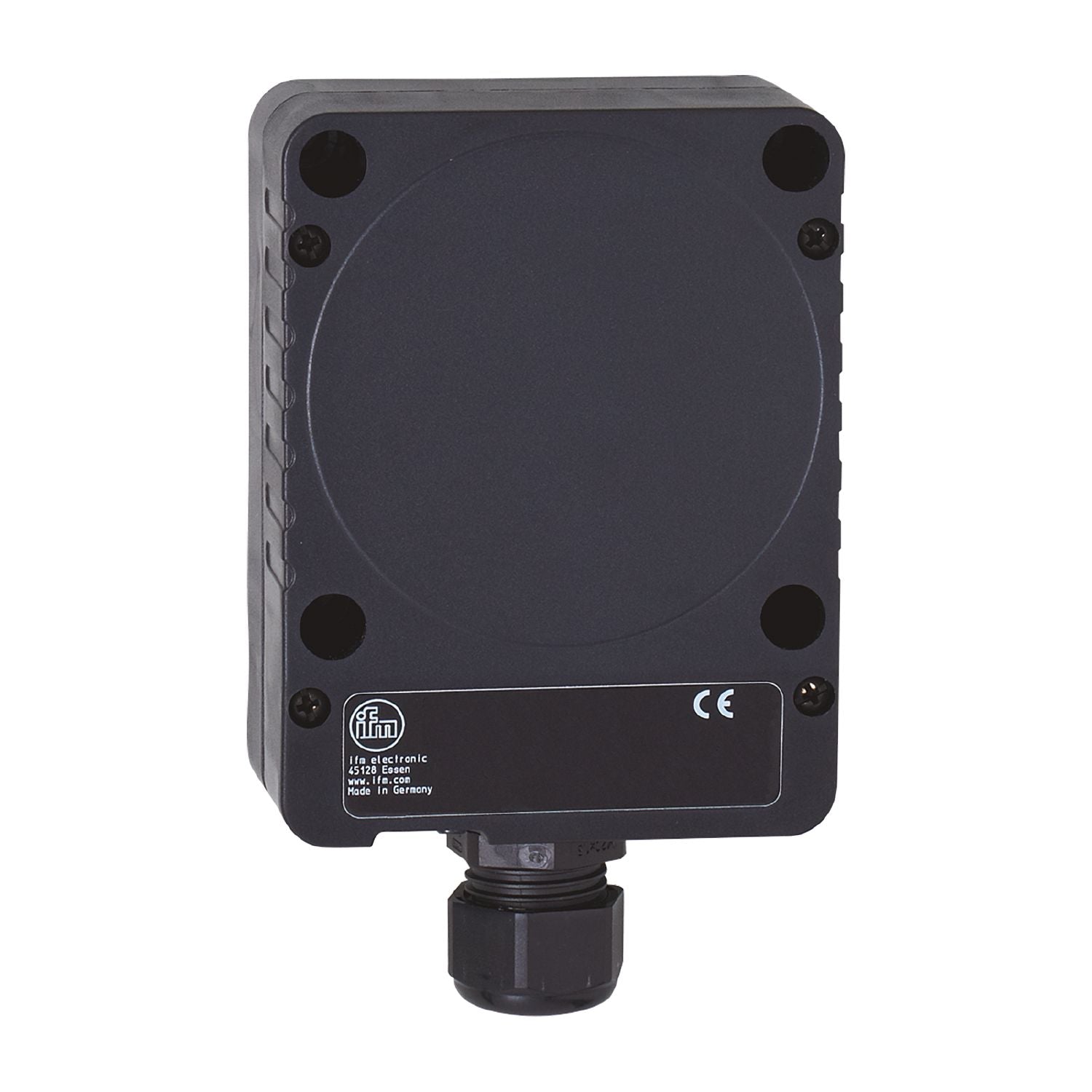

IFM ID502A - Inductive sensor IDE3060-FPKG/3D

Very long sensing range.
Large active sensor face.
Easy setting of the sensing range via potentiometer.
For applications in hazardous areas.
Robust housing for use in harsh industrial environments

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	60
Housing	rectangular
Dimensions [mm]	105 x 80 x 42

Operating voltage [V]	10...30 DC
Current consumption [mA]	15;(24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Short-time current rating of switching output [mA]	200
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	60
Real sensing range Sr [mm]	60 ± 10 %
Operating distance [mm]	0...48.6

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...60
Protection	IP 65

Tests / approvals

ATEX marking	II 3D Ex tc IIIC T90°C Dc X IP65
EMC	EN 60947-5-2
MTTF [years]	993

Weight [g]	504.5
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	105 x 80 x 42
Materials	PPE modified; PA
Tightening torque [Nm]	housing screws: 0,9 Nm; screws: 4 Nm

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	screwdriver: 1

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5
