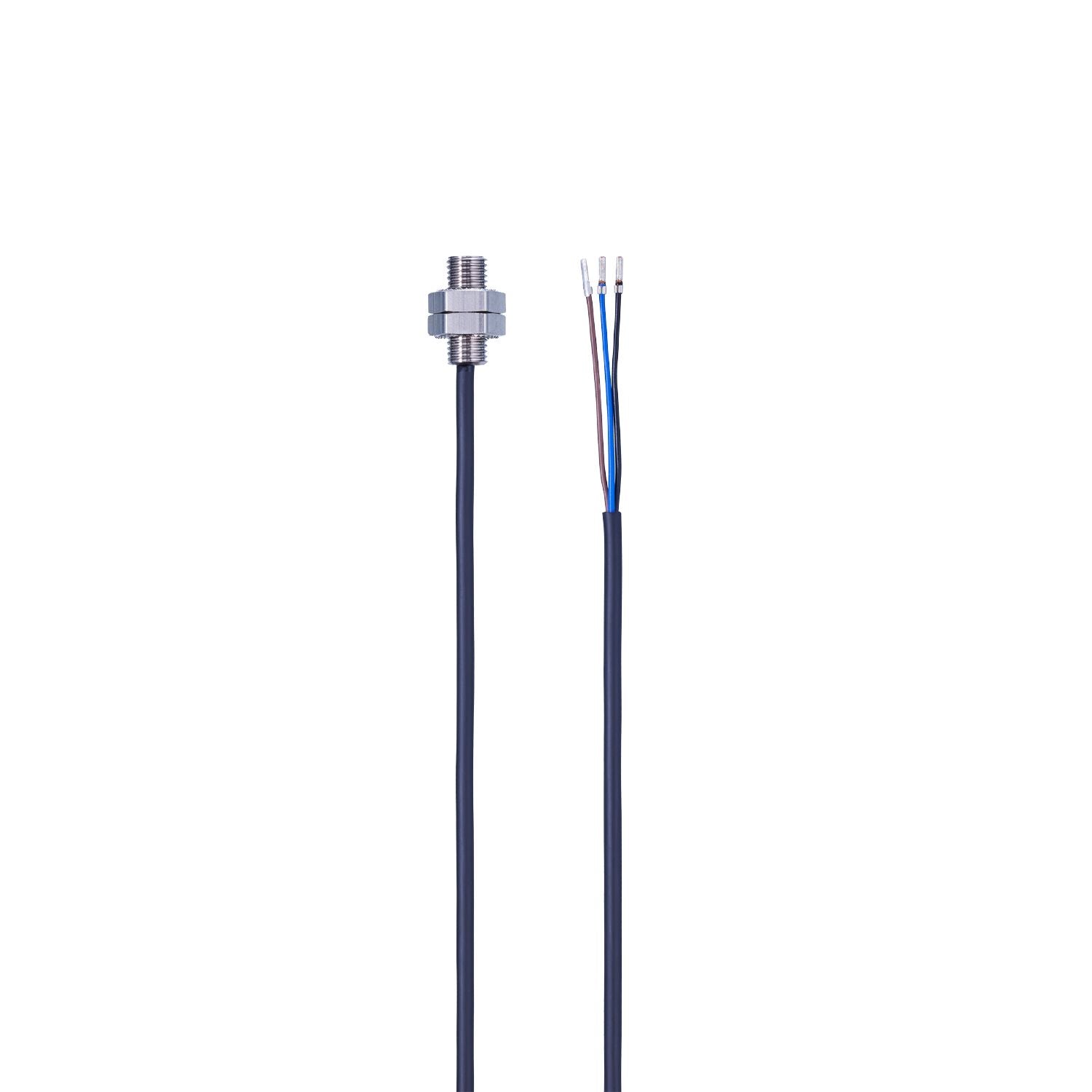

IFM IE5395 - Inductive sensor IEB31,5-BPKG/2M

Particularly short housing.
For use where space is restricted.
Space-saving connection technology.
Very high switching frequency.
Robust metal housing for use in harsh industrial environments

Electrical design	PNP
Output function	normally open
Sensing range [mm]	1.5
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 20

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	10;(24 V)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	1.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	4000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	1.5
Real sensing range Sr [mm]	1.5 ± 10 %
Operating distance [mm]	0...1.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.75 / brass: 0.45 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	< 15
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
MTTF [years]	480
UL approval	Ta < 40 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	50.55
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M8 x 1 / L = 20
Thread designation	M8 x 1
Materials	housing: brass nickel-plated; sensing face: LCP

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.14 mm²
