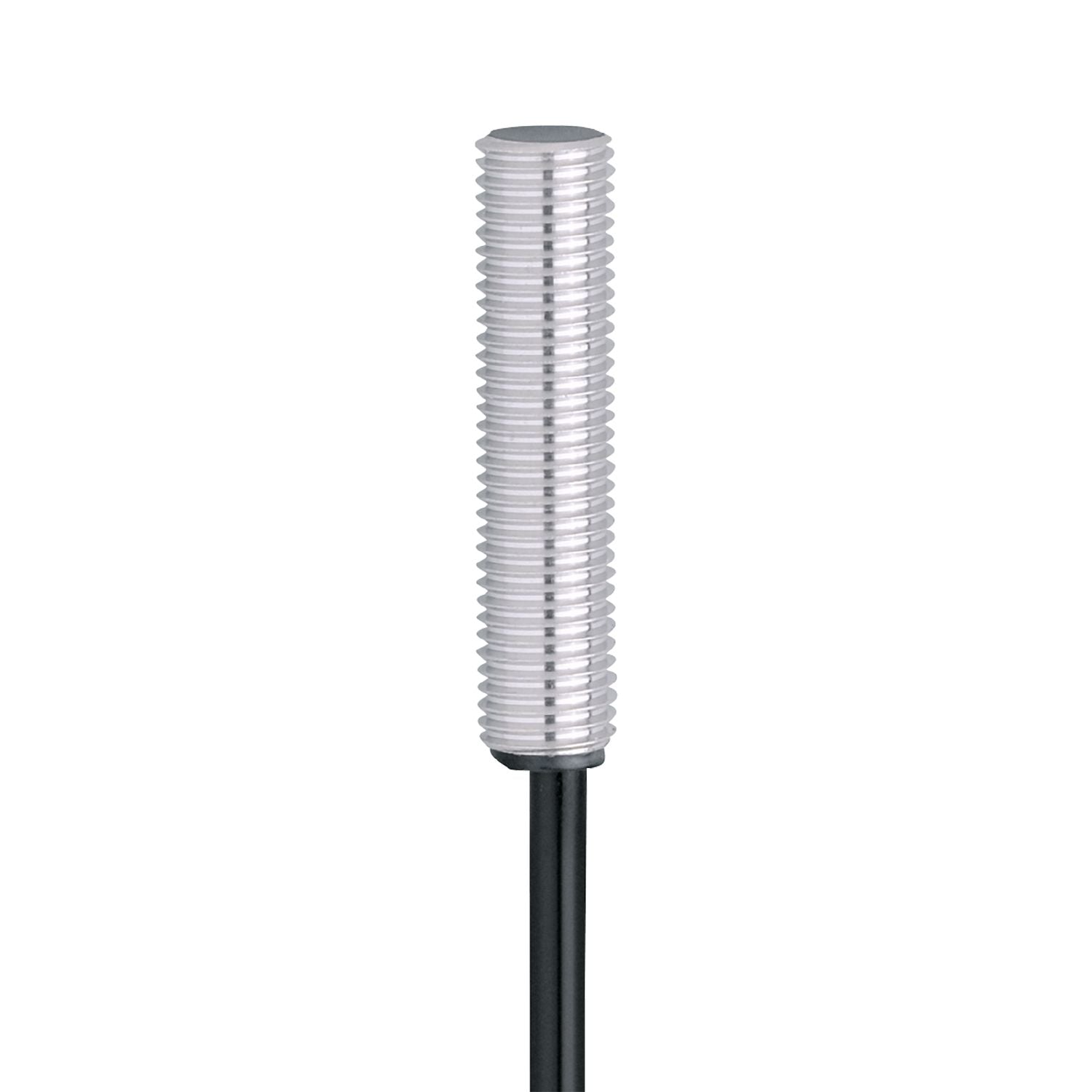

IFM IE5442 - Inductive sensor IEBC003BASKG/7M

Particularly short housing.
For use where space is restricted.
Space-saving connection technology.
Long sensing range for high uptime.
Reduced stock-keeping due to operation as three-wire or two-wire unit

Electrical design	PNP/NPN
Output function	normally open
Sensing range [mm]	3
Housing	threaded type
Dimensions [mm]	M8 x 1 / L = 37

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10;(only in 3-wire operation)
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	normally open
Max. voltage drop switching output DC [V]	2.8
Minimum load current [mA]	2;(only in 2-wire operation)
Max. leakage current [mA]	0.5;(only in 2-wire operation)
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	3
Operating distance [mm]	0...2.4

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15

Operating conditions

Ambient temperature [°C]	0...70
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1517

Weight [g]	118
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M8 x 1 / L = 37
Thread designation	M8 x 1
Materials	brass white bronze coated; sensing face: LCP
Tightening torque [Nm]	A = 5 mm: 1,5 Nm; B: 2 Nm

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 7 m, PVC; 3 x 0.14 mm²

Diagrams and graphs

Installation
