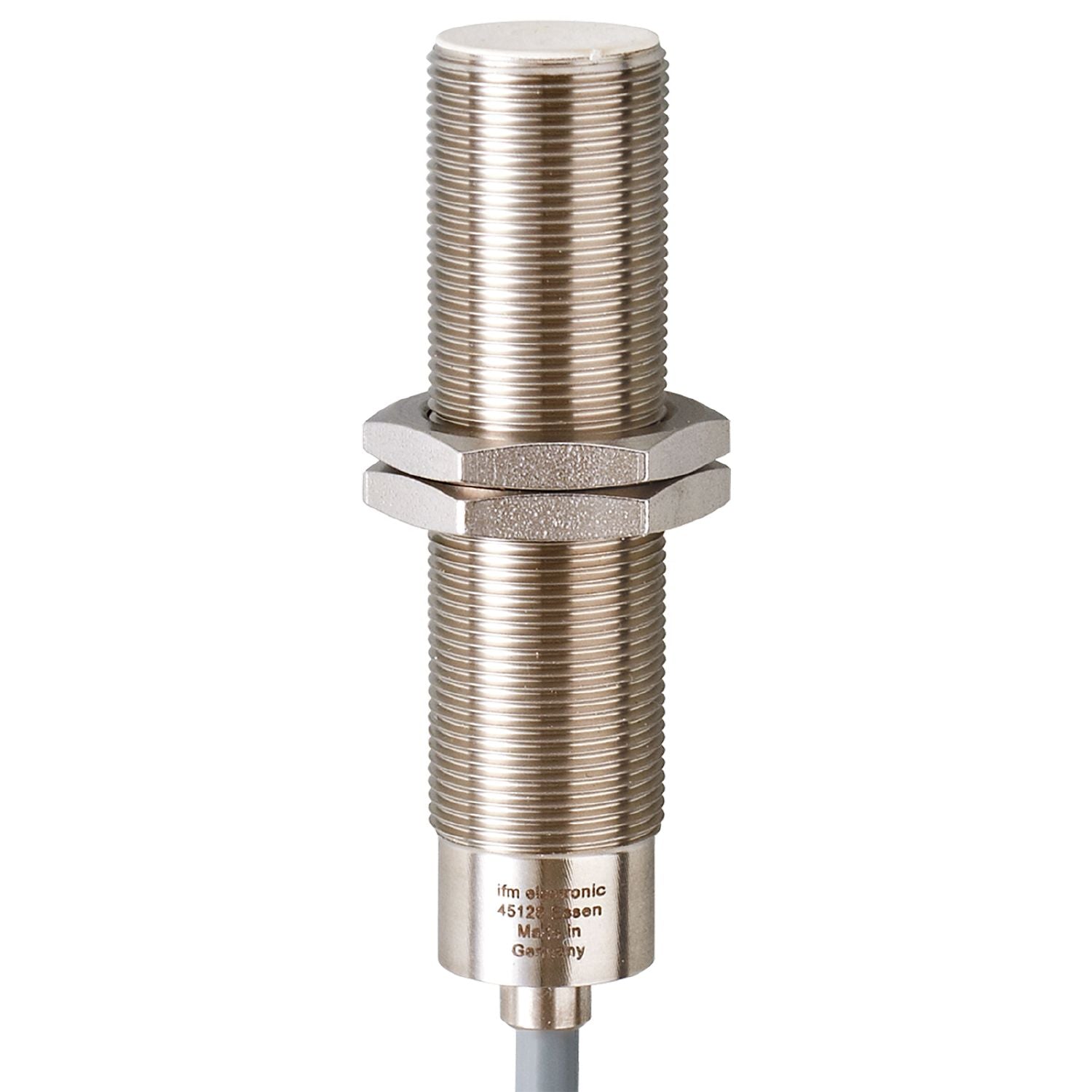

IFM IG6614 - Inductive high-temperature sensor IGA3005ZBPKG/5M/SH

For use in temperatures up to 180 °C.
For applications in the steel and glass industries.
Sensor and evaluation unit in one housing.
Robust stainless steel housing for use in harsh industrial environments.
Long silicone cable terminals can be outside the critical area

Electrical design	PNP
Output function	normally open
Sensing range [mm]	5
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 70

Application	high-temperature applications

Operating voltage [V]	10...35 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	2
Max. leakage current [mA]	0.5
Permanent current rating of switching output DC [mA]	150
Switching frequency DC [Hz]	400
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	5
Operating distance [mm]	0...4.1

Accuracy / deviations

Correction factor	stainless steel: 0.6 / brass: 0.3 / aluminium: 0.2 / copper: 0.1
Hysteresis [% of Sr]	3...15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	0...180
Protection	IP 65

Tests / approvals

EMC	EN 61000-4-2 ESD 2 kV CD / 4 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V
MTTF [years]	682

Weight [g]	263
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M18 x 1 / L = 70
Thread designation	M18 x 1
Materials	threaded sleeve: stainless steel; sensing face: LCP

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 5 m, silicone, Ø 5 mm; highly flexible; 3 x 0.22 mm²
