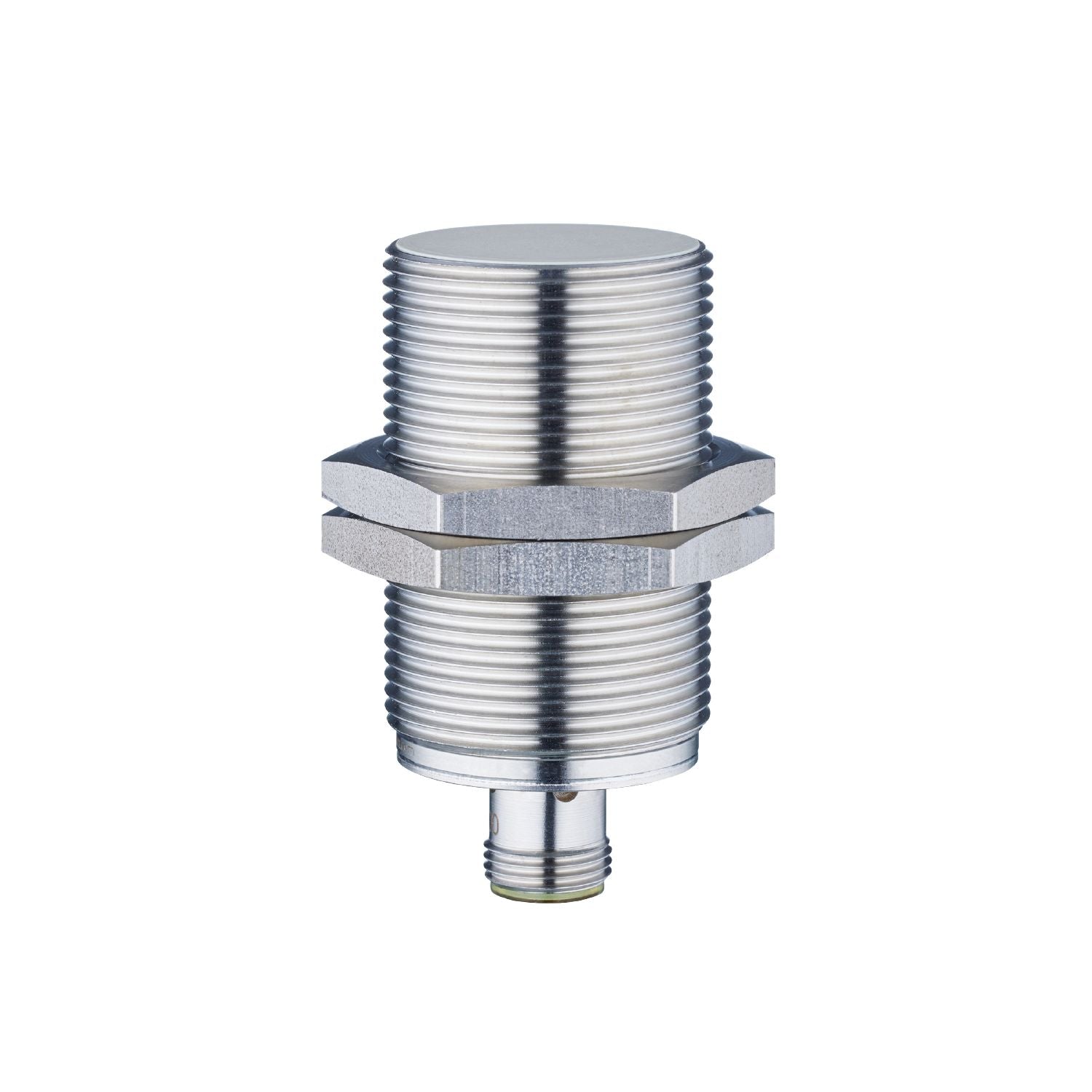

IFM IIP200 - Inductive sensor IIK3010-FRKG/V4A/IO/US-104

For a precise position monitoring on machines.
Flexible use thanks to large operating temperature range.
Very high repeatability

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Communication interface	IO-Link
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 60

Special feature	Magnetic-field immune
Magnetic-field immune	yes
Max. magnetic field immunity [mT]	300

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 20
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	75
Short-circuit protection	yes
Overload protection	yes

Detection zone

Switch point IO-Link [mm]	2...9.7
Measuring range IO-Link [mm]	1...10

Accuracy / deviations

Repeatability	< 40 µm

Resolution [µm]	15
Temperature drift	± 4 µm/K
Linearity deviation	± 40 µm

Resolution [µm]	15
Temperature drift	± 6 µm/K
Linearity deviation	± 200 µm

Resolution [µm]	15
Temperature drift	± 6 µm/K
Linearity deviation	± 100 µm

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 CDV
Profiles	Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	3.2
Supported DeviceIDs	Type of operation DeviceID default 1708

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Vibration resistance	EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance	EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance	EN 60068-2-27 Eb 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change	EN 60068-2-14 Na TA = -25 °C; TB = 70 °C; t1 = 30 min; t2 = < 10 s; 50 cycles
MTTF [years]	1341
Embedded software included	yes
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A005 File number UL E174191

Weight [g]	124.3
Housing	threaded type
Mounting	flush mountable
Dimensions [mm]	M30 x 1.5 / L = 60
Thread designation	M30 x 1.5
Materials	housing: stainless steel (1.4404 / 316L); sensing face: LCP white; LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Tightening torque [Nm]	7

Displays / operating elements

Display	switching status 4 x LED, yellow SIO mode output stage supplied with current LED, yellow lights IO-Link mode target in measuring range LED, yellow lights

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

Linearity deviation	x measured value [µm] y Linearity deviation[µm] 1 Factory calibration (target: aluminium, 60x60 mm) 2 application calibration (1-point calibration; target: steel, 60x60 mm) 3 Application calibration (3-point calibration; target: steel, 30x30 mm)

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IIP200-00 — 13.11.2023 —
