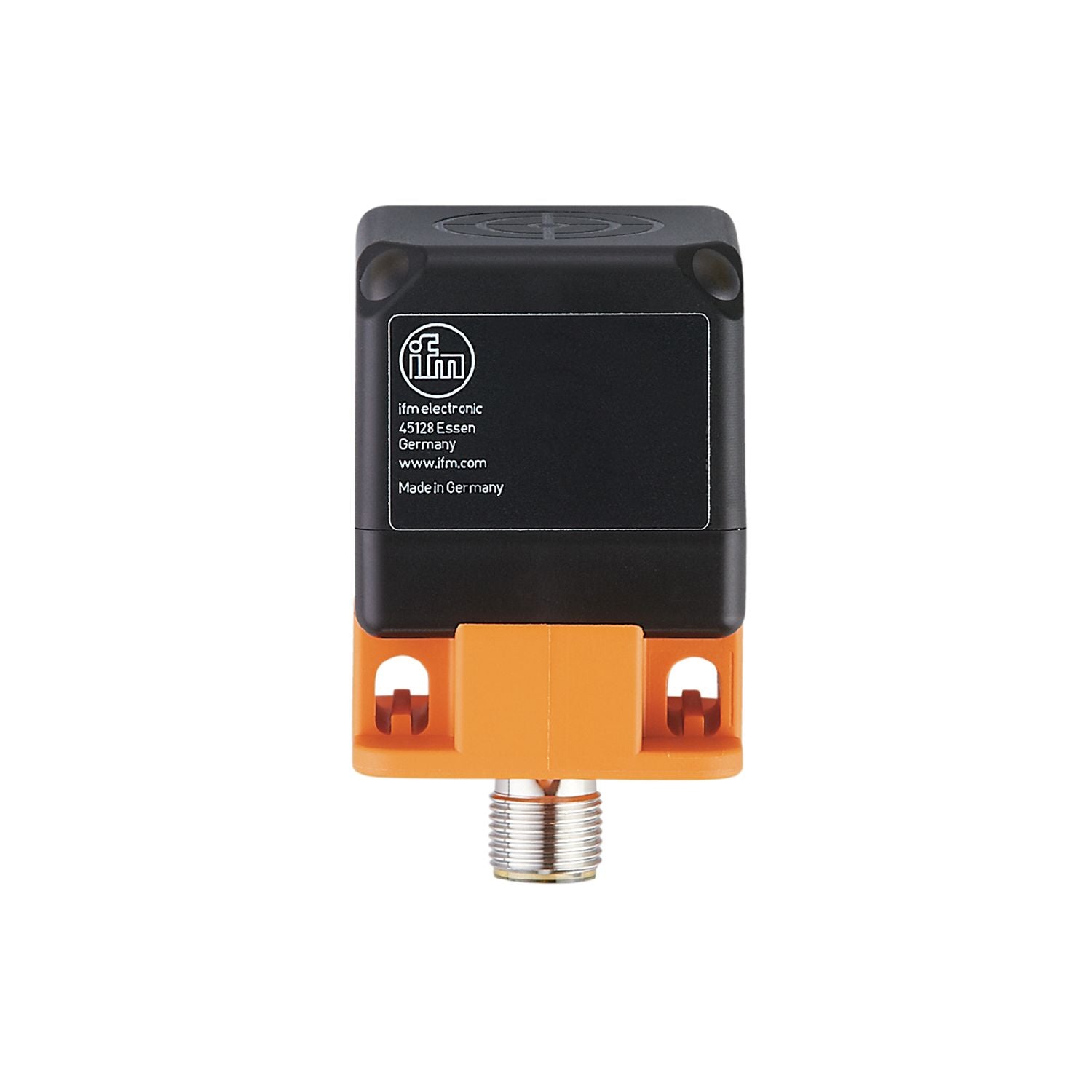

IFM IM5141 - inductive analogue sensor with IO-Link IMC4026A1PKG/IO/US

Non-contact measurement of distances up to 26 mm.
Precise linearised current output.
Wide operating temperature range.
High repeatability.
LED display to check working range and operation

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Operating voltage [V]	15...30 DC
Current consumption [mA]	< 33
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN;(parameterisable)
Output function	normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	100
Analogue current output [mA]	4...20; (linear; gradient: 0,64 mA/mm; for frontal approach and for target made of mild steel: 90 x 90 x 1 mm)
Max. load [Ω]	500;(Ub <=18 V;; Max. load <=400 Ω)
Short-circuit protection	yes
Overload protection	yes

Detection zone

Measuring range [mm]	1...26
Switch point IO-Link [mm]	3.44...24.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis [% of Sr]	3...15
Note on hysteresis	parameterisable
Linearity error of analogue output [%]	± 2;(of the final value of the measuring range)
Repeatability analogue output [%]	± 2;(of the final value of the measuring range)
Temperature coefficient [%/K vom MEW]	±0,15
Temperature drift	± 5 %;(of the final value of the measuring range)

Response times

Response time [ms]	< 20

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Identification and diagnosis; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Teach Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	3.2
IO-Link process data (cyclical)	function bit length process value 16 device status 4 binary switching information 2
IO-Link functions (acyclical)	switching cycles counter; switch-on cycle counter; operating hours counter; internal temperature; application specific tag
Supported DeviceIDs	Type of operation DeviceID default 1205
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	232
Embedded software included	yes
UL approval	Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A025 File number UL E174191

Weight [g]	157.5
Housing	rectangular
Sensing face	5 positions selectable
Mounting	non-flush mountable
Dimensions [mm]	40 x 40 x 54
Materials	PA; brass white bronze coated

Displays / operating elements

Display	target in measuring range 1 x LED, yellow lights target outside measuring range 1 x LED, yellow flashing operation LED, green

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IM5141-02 — 13.04.2023 —
