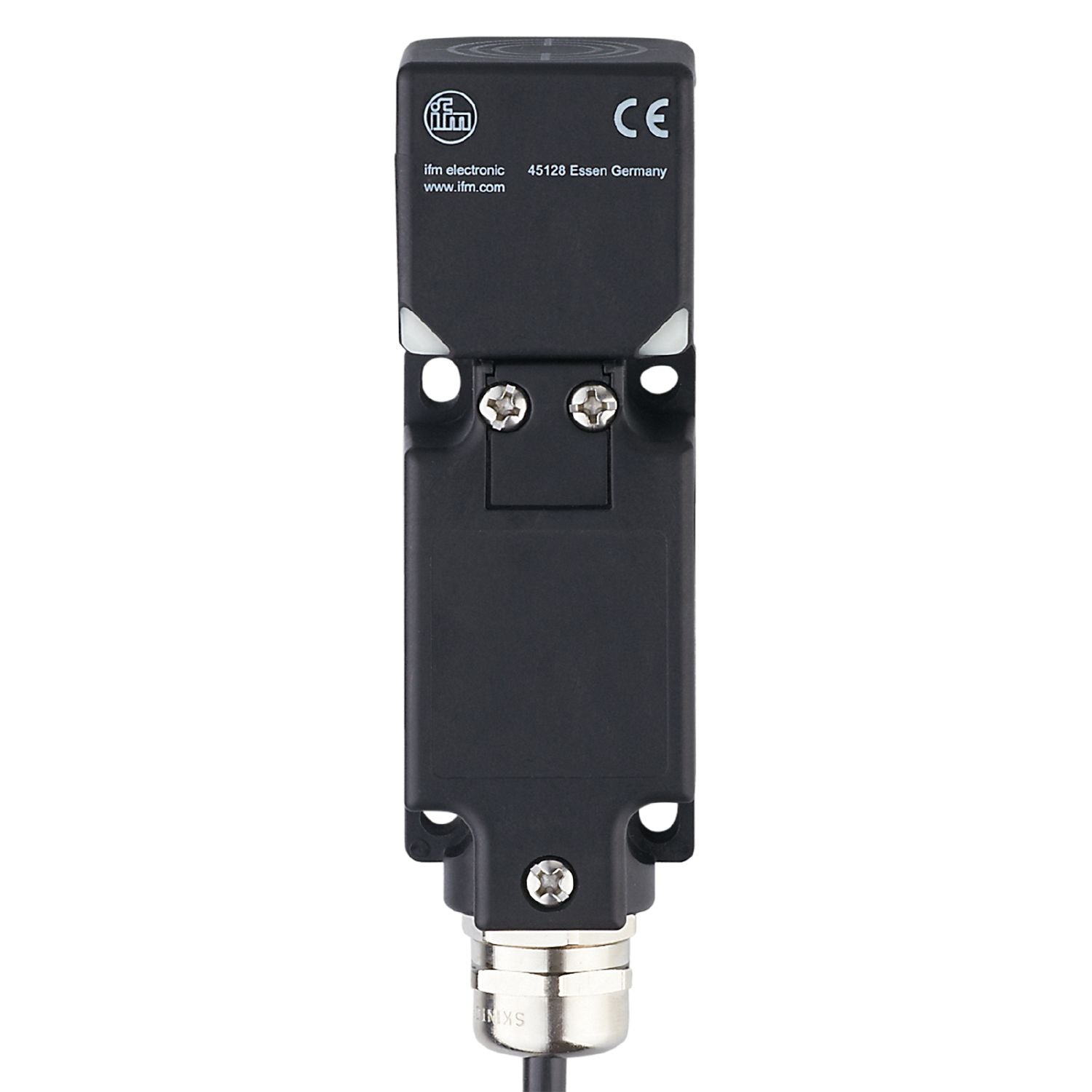

IFM IV5059 - Inductive sensor IVE4020ZCPKG/20M

Five positions of the sensing face selectable.
Long sensing range for high uptime.
Robust housing for use in harsh industrial environments.
For use in materials handling.
LED display to check switching status and operation

Electrical design	PNP
Output function	complementary
Sensing range [mm]	20
Housing	rectangular
Dimensions [mm]	40 x 40 x 118

Operating voltage [V]	10...30 DC
Current consumption [mA]	20;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	complementary
Max. voltage drop switching output DC [V]	2
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Sensing range [mm]	20
Real sensing range Sr [mm]	20 ± 10 %
Operating distance [mm]	0...16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.3
Hysteresis [% of Sr]	1...10
Switch point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...100
Protection	IP 68; IP 69K

Tests / approvals

EMC	EN 61000-4-2 ESD 8 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 15 V EN 55011 class B
Vibration resistance	EN 60068-2-6 Fc 10 g (10...2000 Hz) / 10 cycles
Shock resistance	EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance	EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change	EN 60068-2-14 Na TA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles
MTTF [years]	652.2
UL approval	Ta 0...40 °C Enclosure type Type 1 File number UL E174191

Weight [g]	1438
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 118
Materials	PA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (1.4305 / 303)

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Remarks	5 positions of the active zone possible
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 20 m, PVC; 4 x 0.50 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — IV5059-00 — 06.10.2016 —
