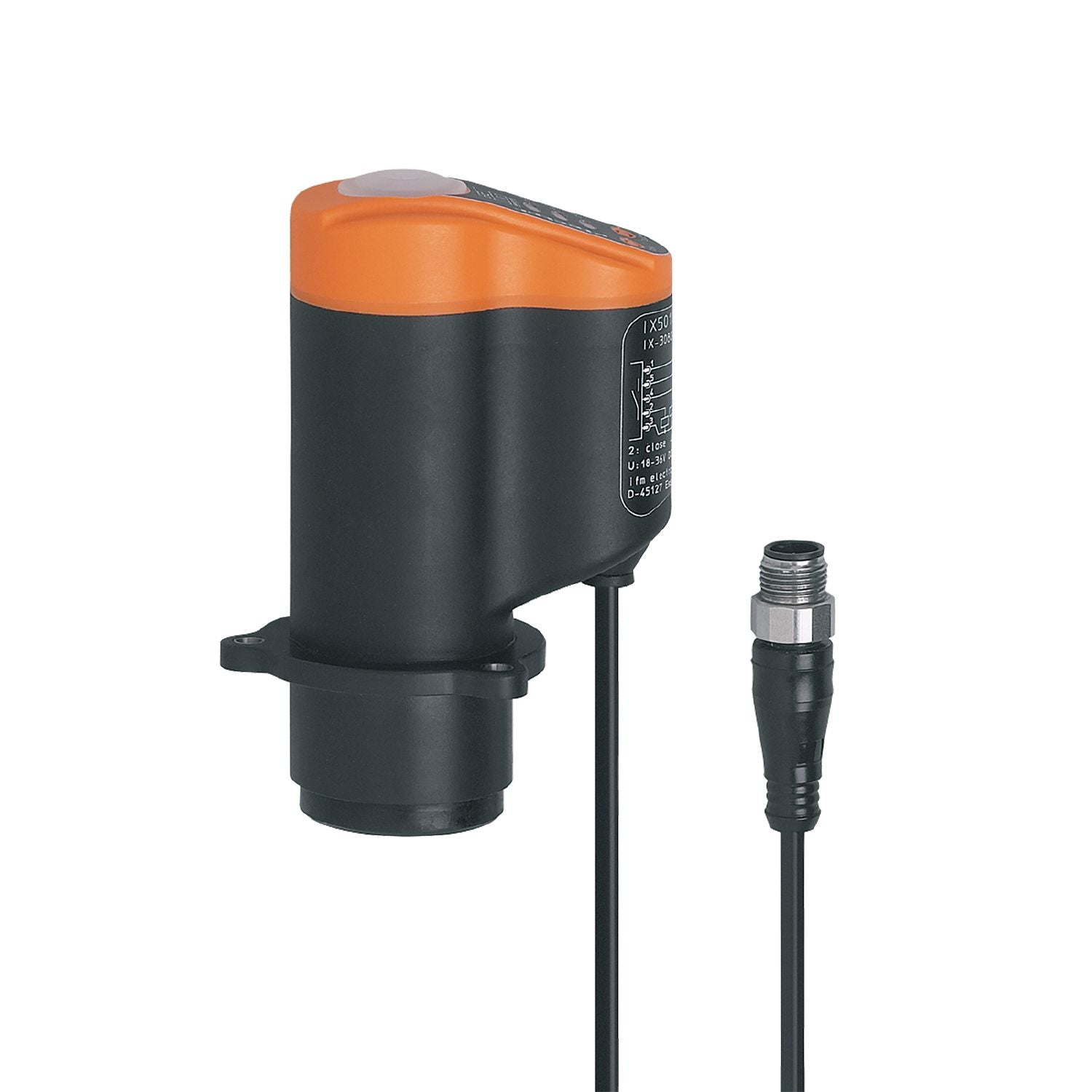

Position feedback for single and double seat valve and for diaphragm valves. Freely selectable switching outputs: valve open / closed, seat lift. Replaces three binary pulse pick-ups. Resolution of 0.2 mm across the entire measuring range. Programming of valve positions with pushbuttons
Electrical design
PNP
Output function
3 x normally open
Dimensions [mm]
65 x 52 x 110
Application
position feedback for seat valves and diaphragm valves; absolute distance measurement; monitoring of the valve seal
Operating voltage [V]
18...36 DC
Current consumption [mA]
42;(24 V)
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
2000
Outputs
Electrical design
PNP
Output function
3 x normally open
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Measuring range [mm]
0...80
Max. target speed [m/s]
1
Resolution of valve stroke [mm]
0.2
Target
cylindrical disc
-
Ø 24 mm ±0,05 mm
-
minimum height 10 mm
-
flat surface
-
stainless steel to DIN17440, material number 316S12.
Software / programming
Parameter setting options
3 switch points to be freely defined within the measuring range
Operating conditions
Ambient temperature [°C]
-25...85
Note on ambient temperature
for firmly laid cable
Protection
IP 65; IP 67;(only in conjunction with an installation in the valve head that provides sufficient protection against mechanical damage of the sensor)
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV CD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV coupling clamp
EN 61000-4-6 HF conducted
3 V
MTTF [years]
298
Weight [g]
217.5
Type of mounting
3-hole flange
Dimensions [mm]
65 x 52 x 110
Materials
PA; TPE; PP; LCP
Displays / operating elements
Display
switching status
1 x LED, green open
switching status
1 x LED, yellow seat
switching status
1 x LED, red close
Accessories
Items supplied
screws: 3
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Cable: 0.3 m, PVC; 5 x 0.14 mm²
Connection
Connector: 1 x M12; coding: A
