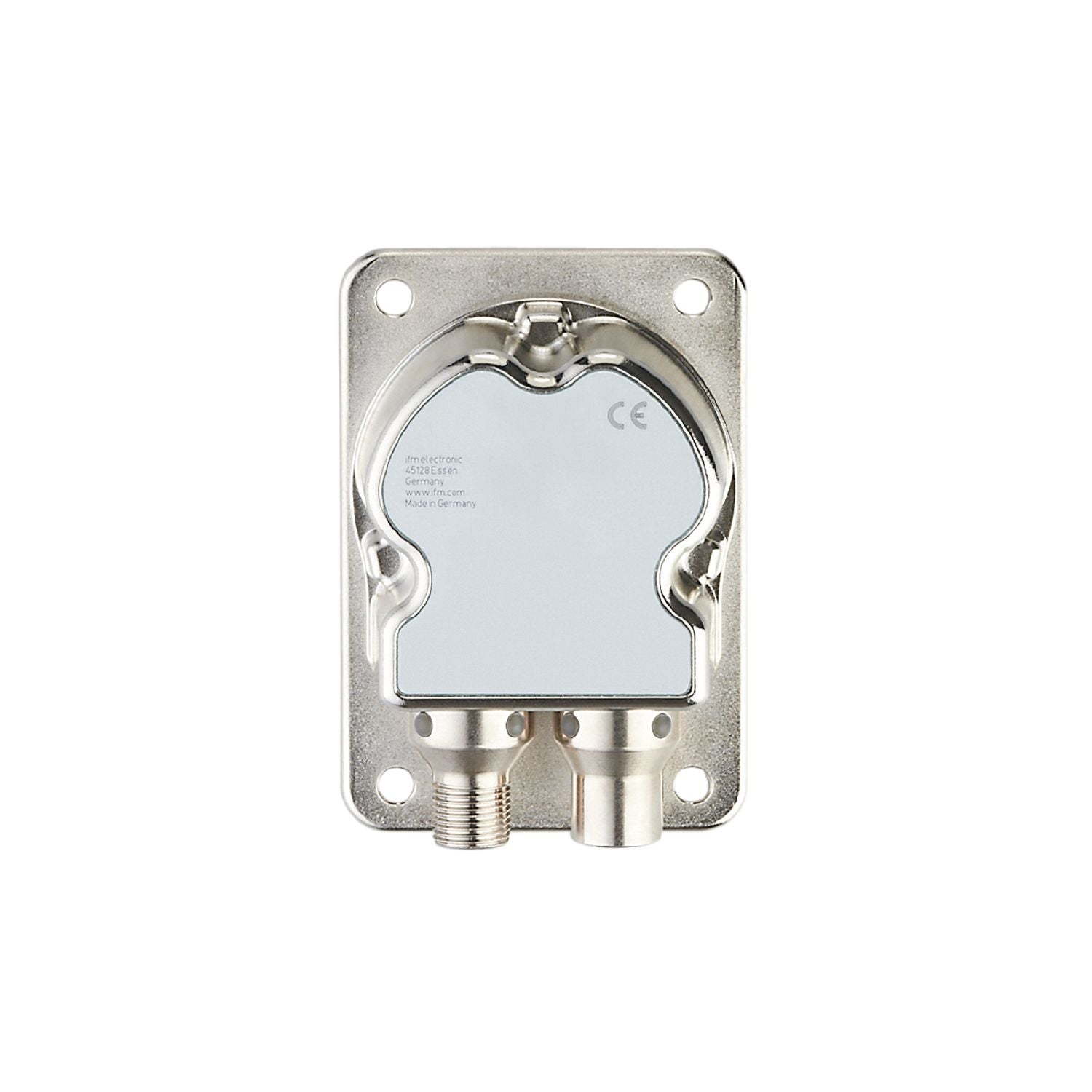

IFM JN2101 - Inclination sensor INC-M2M090C -KG/US

Precise measurement of angles of inclination on X and Y axes.
High measurement accuracy across the total angular range in two axes.
Zero point, counting direction and limit frequency adjustable.
Compact and robust housing.
High-performance CAN interface for various communication tasks

Measuring principle	MEMS capacitive
Communication interface	CAN

Number of measurement axes	2
Angular range [°]	-45…45

Function principle	static
Application	High-precision inclination measurement in 2 axes for mobile applications

Operating voltage [V]	9.2...30 DC
Current consumption [mA]	70;(24 V DC, 25 °C)
Max. current consumption [mA]	405;(9,2 V DC; -40 °C)
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	yes
Power-on delay time [s]	300;(warm-up time; Max. initialisation time: 1000 ms)

Measuring/setting range

Measuring principle	MEMS capacitive

Number of measurement axes	2
Angular range [°]	-45…45
Limit frequency [Hz]	0.5...10;(parameterisable)

Accuracy / deviations

Accuracy [°]	≤ ± 0,01;(absolute)
Hysteresis [°]	≤ ± 0,05
Repeatability [°]	≤ ± 0,01
Resolution [°]	0.01;(parameterisable)
Temperature coefficient [1/K]	≤ ± 0,0008 °

Interfaces

Communication interface	CAN
Number of CAN interfaces	1
Terminating resistor	yes;(internal ; parameterisable)

Protocol	CANopen
Factory settings	Baud rate: 125 kBit/s node ID: 10
Version	CiA DS301 V4.2.0; DSP-410 V2.0.0; CiA 306 V1.3.0

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMC	DIN EN 61000-4-2 ESD 4 kV CD / 8 kV AD DIN EN 61000-4-3 HF radiated 10 V/m DIN EN 61000-4-4 Burst 2 kV DIN EN 61000-4-6 HF conducted 10 V DIN EN 55022 class B / CISPR 16-2-3 30 - 1000 MHz CISPR 25 ECE R 10 30 - 1000 MHz narrowband and broadband ISO 11452-2 ECE R 10 20 - 2000 MHz / 30 V/m ISO 7637-2 ECE R 10 pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off ISO 7637-3 - 80 V pulse a / + 80 V pulse b
Shock resistance	DIN EN 60068-2-27 100 g 1 ms / 10000 impacts per axis (X/Y) DIN EN 60068-2-29 30 g 6 ms / 24000 shock (bump)
Vibration resistance	DIN EN 60068-2-64 10...2000 Hz Test VII / random, mounting place car body DIN EN 60068-2-6 10...500 Hz / 10 g 10 cycles/axis, sine
Salt spray test	DIN EN 60068-2-52 severity level 5 (motor vehicle)
Damp heat	DIN EN 60068-2-30 55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h
MTTF [years]	372
Standard	Compliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07

Weight [g]	415.5
Dimensions [mm]	90 x 62 x 33.2
Materials	housing: diecast zinc nickel-plated
Installation position	horizontal

Displays / operating elements

Display	preoperational mode 1 x LED, green operational mode 1 x LED, green flashing fault 1 x LED, red

Accessories

Items supplied	Protective cover: 1

Pack quantity	1 pcs.

Electrical connection - CAN-In

	Connector: 1 x M12; coding: A

Electrical connection - CAN-Out

	Connector: 1 x M12; coding: A

Diagrams and graphs

Mess- und Montagerichtung	horizontale Einbaulage / Rotation um X- und Y-Achse

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — JN2101-03 — 20.02.2024 —
