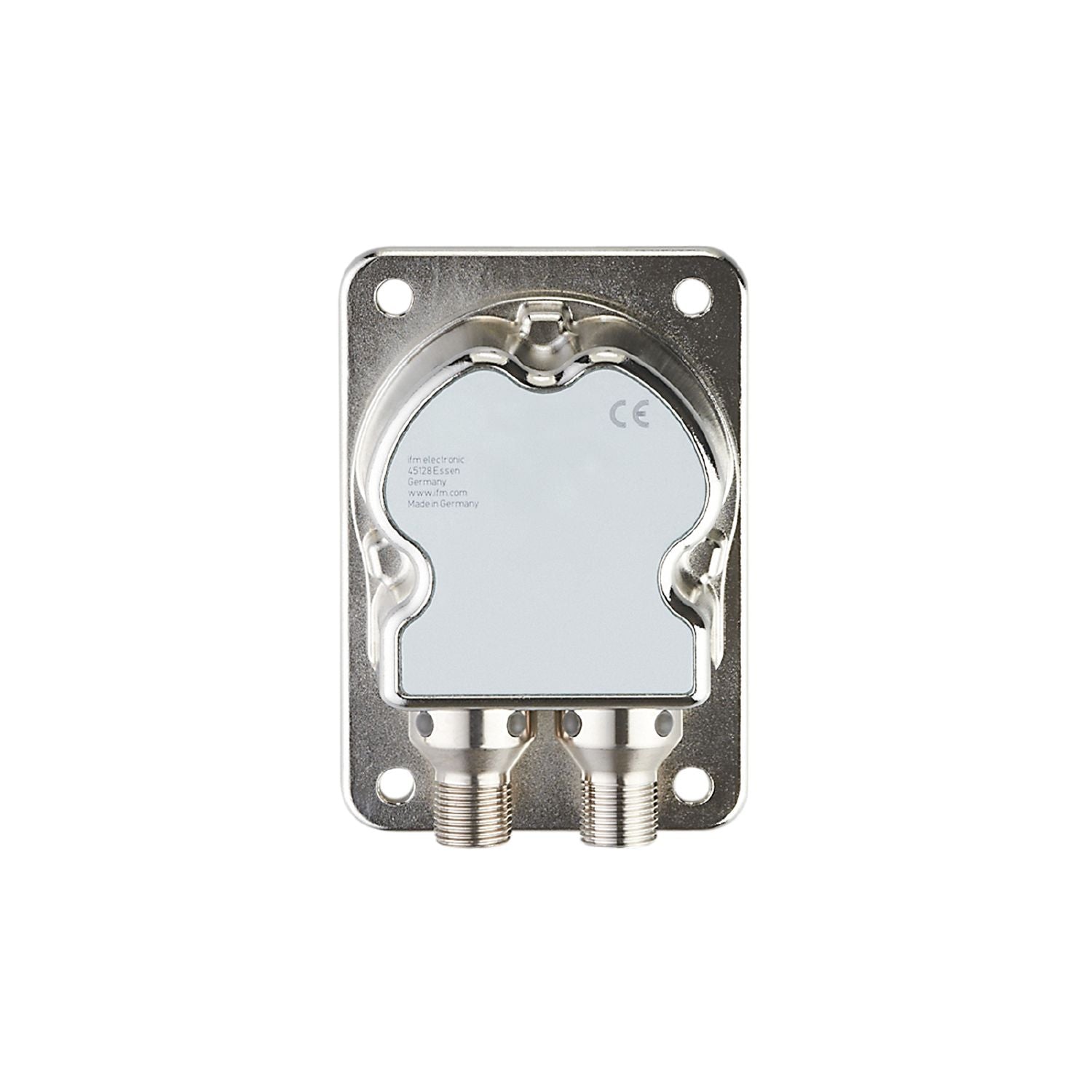

IFM JN2200 - Inclination sensor INC-M2M360ABIAKG/US

Precise measurement of angles of inclination on X and Y axes.
High measurement accuracy across the total angular range in two axes.
With two programmable switching outputs, two scalable analogue outputs and IO-Link.
Compact and robust housing.
High protection rating for the requirements of harsh industrial environments

Measuring principle	MEMS capacitive
Communication interface	IO-Link

Number of measurement axes	2
Angular range [°]	± 180

Function principle	static
Application	High-precision inclination measurement in 2 axes for mobile and industrial applications

Operating voltage [V]	9.2...30 DC;(voltage output: 12...30 DC; IO-Link: 18...30 DC)
Current consumption [mA]	90;(24 V DC, 25 °C)
Max. current consumption [mA]	330;(9,2 V DC; -40 °C)
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	yes
Power-on delay time [s]	300;(warm-up time; Max. initialisation time: 1000 ms)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 2

Outputs

Total number of outputs	4
Output signal	analogue signal; switching signal
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / normally closed;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	125;(125 mA (85° C); 200 mA (60° C); 250 mA (40° C))
Number of analogue outputs	2
Analogue current output [mA]	4...20; (in case of a fault: 2 mA)
Max. load [Ω]	220;(220 (9,2…15 V) / 500 (15…30 V))
Analogue voltage output [V]	2...10; (in case of a fault: 1 V)
Min. load resistance [Ω]	1000;(10000 (12...13,5 V) / 1000 (13,5...30 V))
Precision analogue output [%]	≤ 1
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Measuring principle	MEMS capacitive

Number of measurement axes	2
Angular range [°]	± 180
Limit frequency [Hz]	0.5...10;(parameterisable)

Measuring range of vibration [g]	16;(± 2; ± 4; ±8 g parameterisable)
Measuring range of vibration [mm/s]	3200
Frequency range [Hz]	0.1...400
Number of measurement axes	X/Y/Z parameterisable

Accuracy / deviations

Accuracy [°]	≤ ± 0,5;(absolute)
Hysteresis [°]	≤ ± 0,05
Repeatability [°]	≤ ± 0,1
Resolution [°]	0.05
Temperature coefficient [1/K]	≤ ± 0,02 °

Software / programming

Parameter setting options	angle (X/Y) / vibration (Veff / aPeak); hysteresis / window; switch points; switching logic; fault indication; self-test; current/voltage output

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 CDV
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	yes
Required master port type	A
Process data analogue	2
Process data binary	2
Min. process cycle time [ms]	5
Supported DeviceIDs	Type of operation DeviceID default 416

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Protection	IP 65; IP 67; IP 68; IP 69K

Tests / approvals

EMC	DIN EN 61000-4-2 ESD 4 kV CD / 8 kV AD DIN EN 61000-4-3 HF radiated 10 V/m DIN EN 61000-4-4 Burst 2 kV DIN EN 61000-4-6 HF conducted 10 V DIN EN 55022 class B / CISPR 16-2-3 30 - 1000 MHz CISPR 25 ECE R 10 30 - 1000 MHz narrowband and broadband ISO 11452-2 ECE R 10 20 - 2000 MHz / 30 V/m ISO 7637-2 ECE R 10 pulse 1, 2a, 2b, 3a, 3b, 4, and pulse emission during operation, switching-on, switching-off ISO 7637-3 - 80 V pulse a / + 80 V pulse b
Shock resistance	DIN EN 60068-2-27 100 g 1 ms / 10000 impacts per axis (X/Y) DIN EN 60068-2-29 30 g 6 ms / 24000 shock (bump)
Vibration resistance	DIN EN 60068-2-64 10...2000 Hz Test VII / random, mounting place car body DIN EN 60068-2-6 10...500 Hz / 10 g 10 cycles/axis, sine
Salt spray test	DIN EN 60068-2-52 severity level 5 (motor vehicle)
Damp heat	DIN EN 60068-2-30 55 °C cyclic upper temperature / 95 % rh 2 cycles of 24 h
MTTF [years]	176
Standard	Compliant with ECE R 10, rev. 5; ISO 7637-3: 2007-07

Weight [g]	410
Dimensions [mm]	90 x 62 x 33.2
Materials	housing: diecast zinc nickel-plated
Installation position	horizontal

Displays / operating elements

Display	operation 1 x LED, green switch point 1 x LED, yellow

Accessories

Items supplied	Protective cover

Pack quantity	1 pcs.

Electrical connection -digital

	Connector: 1 x M12; coding: A

Electrical connection -analogue

	Connector: 1 x M12; coding: A

Diagrams and graphs

measuring and installation direction	horizontal installation position / rotation about x- and y-axis

Other data
