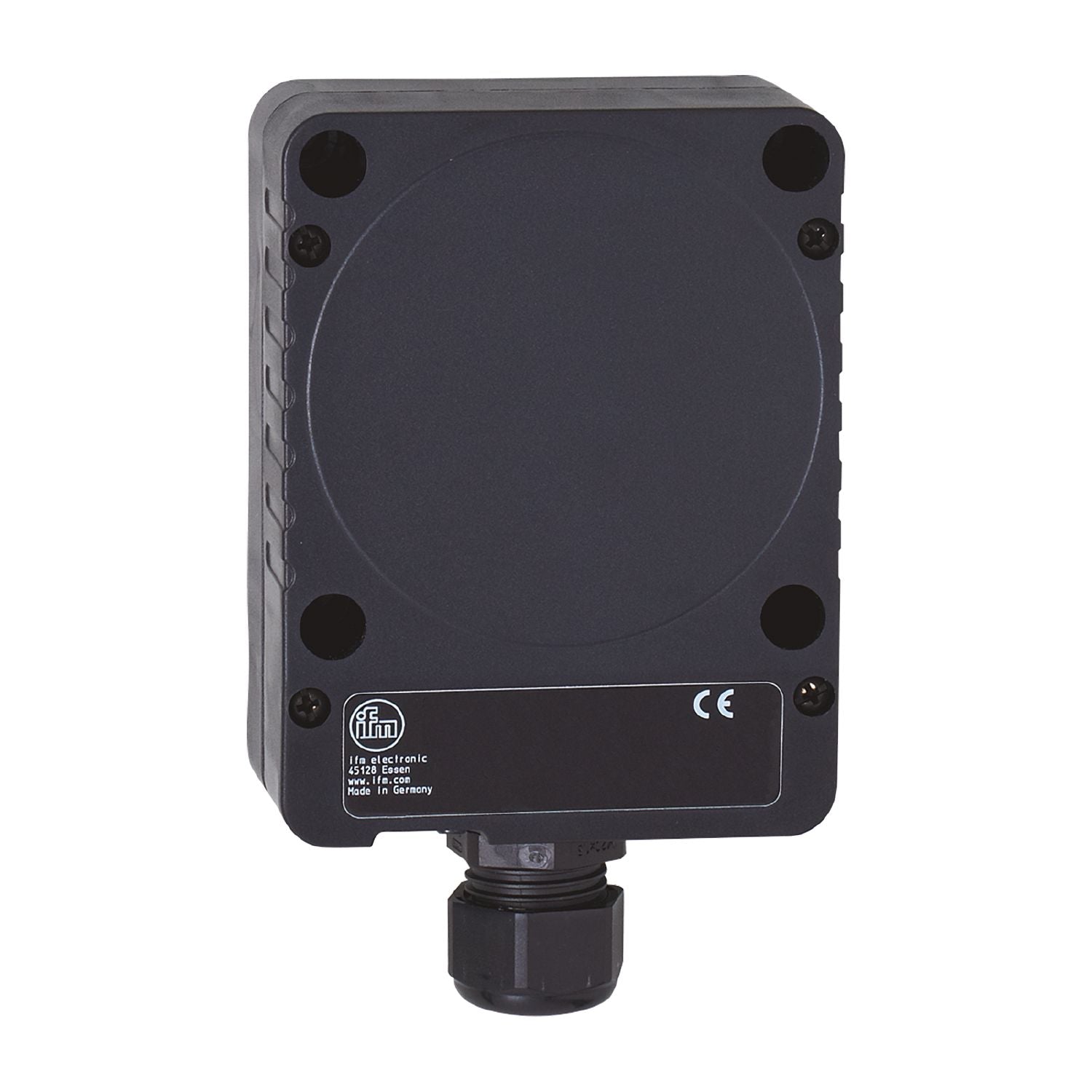

IFM KD501A - Capacitive sensor KDE3060-FPKG/NI/3D

Easy setting of the sensing range via potentiometer.
For applications in hazardous areas.
Robust housing for use in harsh industrial environments.
Output function normally open / normally closed programmable.
Long sensing range of 60 mm

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	60
Housing	rectangular
Dimensions [mm]	105 x 80 x 42

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 15
Protection class	III
Reverse polarity protection	yes
Measuring principle	capacitive

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	10
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	60
Sensing range adjustable	yes
Factory setting sensing range [mm]	60
Real sensing range Sr [mm]	60 ± 10 %

Accuracy / deviations

Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-20...60
Protection	IP 65
Increased immunity	yes

Tests / approvals

ATEX marking	II 3D Ex tc IIIC T90°C Dc X IP65
EMC	EN 60947-5-2
MTTF [years]	537

Weight [g]	279.5
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	105 x 80 x 42
Materials	PPE modified; PA
Tightening torque [Nm]	housing screws: 0,9 Nm; screws: 4 Nm

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5
