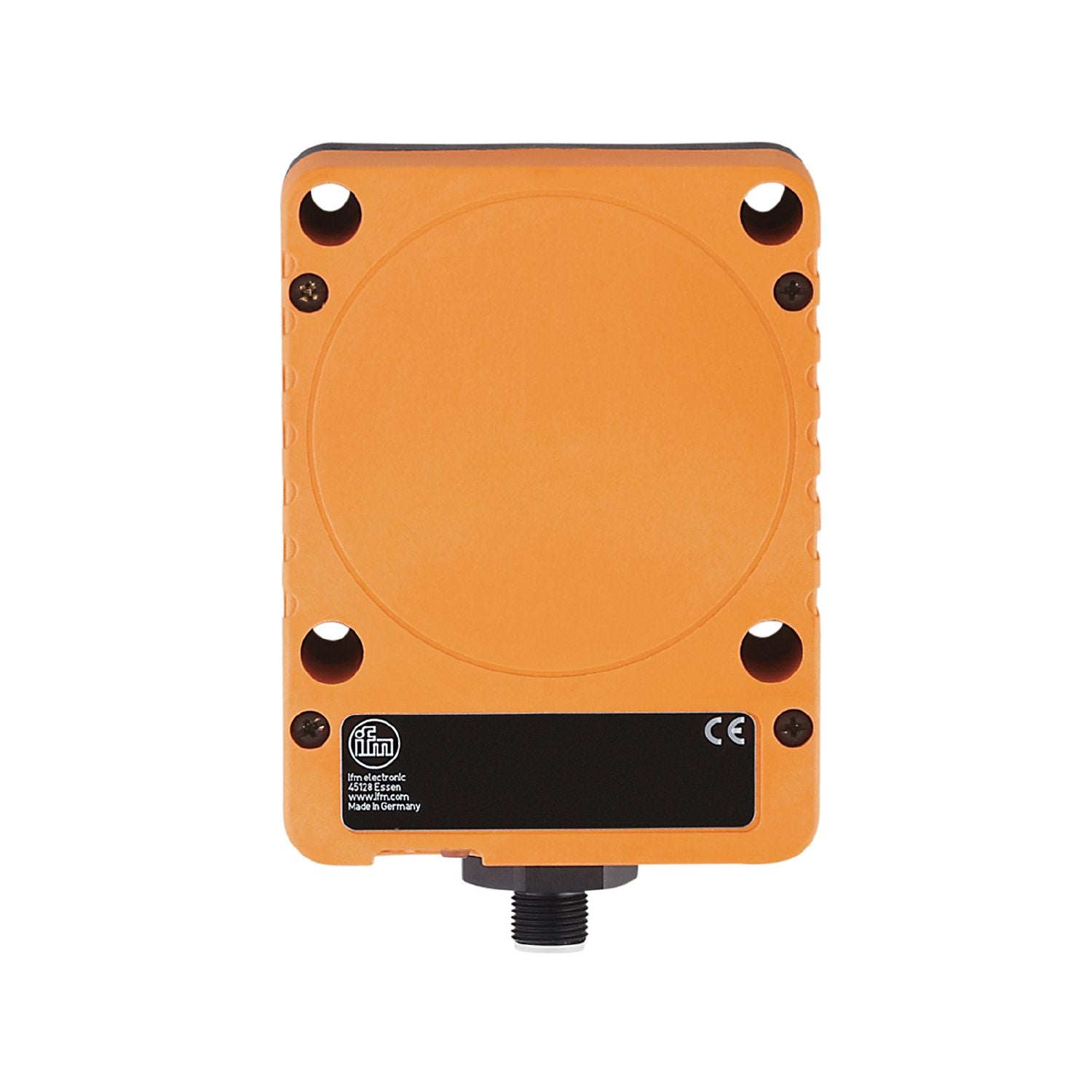

IFM KD5039 - Capacitive sensor KDE3060-FPKG/NI/US-100-KPF

Easy setting of the sensing range via potentiometer.
High noise immunity.
Robust housing for use in harsh industrial environments.
Long sensing range of 60 mm.
Wide operating temperature range

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Sensing range [mm]	60
Housing	rectangular
Dimensions [mm]	105 x 80 x 40

Operating voltage [V]	10...36 DC
Current consumption [mA]	5;(24 V)
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	10
Short-circuit proof	yes
Overload protection	yes

Detection zone

Sensing range [mm]	60
Real sensing range Sr [mm]	60 ± 10 %
Operating distance [mm]	0...48.6

Accuracy / deviations

Correction factor	glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-15...15

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	537

Weight [g]	309.5
Housing	rectangular
Mounting	non-flush mountable
Dimensions [mm]	105 x 80 x 40
Materials	PPE modified

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	spring washers: 4 cylinder screws: 4

Pack quantity	1 pcs.

Electrical connection - plug

	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KD5039-02 — 13.04.2023 —
