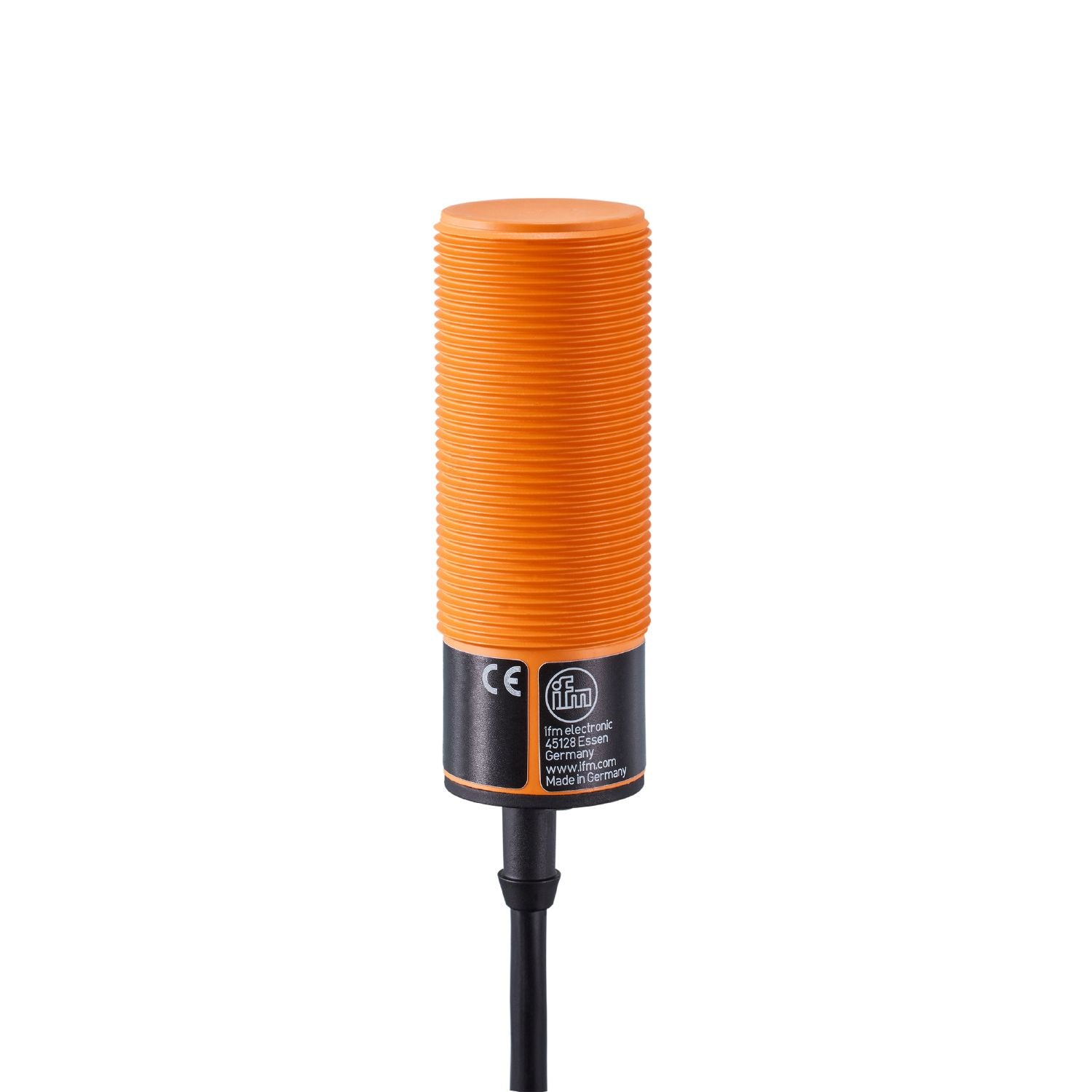

For the detection of liquids and dry bulk materials. With combined AC/DC output stage. Adjustable switching delay. Two-wire technology
Output function
normally closed
Sensing range [mm]
20
Housing
threaded type
Dimensions [mm]
M30 x 1.5 / L = 81
Operating voltage [V]
20...250 AC/DC
Current consumption [mA]
< 20
Protection class
II
Reverse polarity protection
no
Outputs
Output function
normally closed
Max. voltage drop switching output DC [V]
8
Max. voltage drop switching output AC [V]
10
Minimum load current [mA]
5
Max. leakage current [mA]
2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC [mA]
200;(350 (...50 °C))
Permanent current rating of switching output DC [mA]
200;(350 (...50 °C))
Short-time current rating of switching output [mA]
2200;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]
10
Switching frequency DC [Hz]
10
Short-circuit proof
no
Overload protection
no
Output holding time
adjustable (0...60 s )
Detection zone
Sensing range [mm]
20
Sensing range adjustable
yes
Factory setting sensing range [mm]
20
Real sensing range Sr [mm]
20 ± 10 %
Accuracy / deviations
Hysteresis [% of Sr]
1...15
Switch point drift [% of Sr]
-20...20
Operating conditions
Ambient temperature [°C]
-25...80
Note on ambient temperature
temperature of the sensing face: -25...110
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
25 kV CD / 30 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted
3 V
EN 55011
class B
Vibration resistance
(10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
30 g 6 shocks / 11 ms half-sine (x, y, z)
MTTF [years]
221.4
Weight [g]
186.5
Housing
threaded type
Mounting
non-flush mountable
Dimensions [mm]
M30 x 1.5 / L = 81
Thread designation
M30 x 1.5
Materials
PBT
Displays / operating elements
Display
switching status
1 x LED, yellow
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
lock nuts: 2
screwdriver: 1
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity
1 pcs.
Electrical connection
Connection
Cable: 2 m, PVC; 2 x 0.5 mm²
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI0061-00 — 13.04.2023 —
