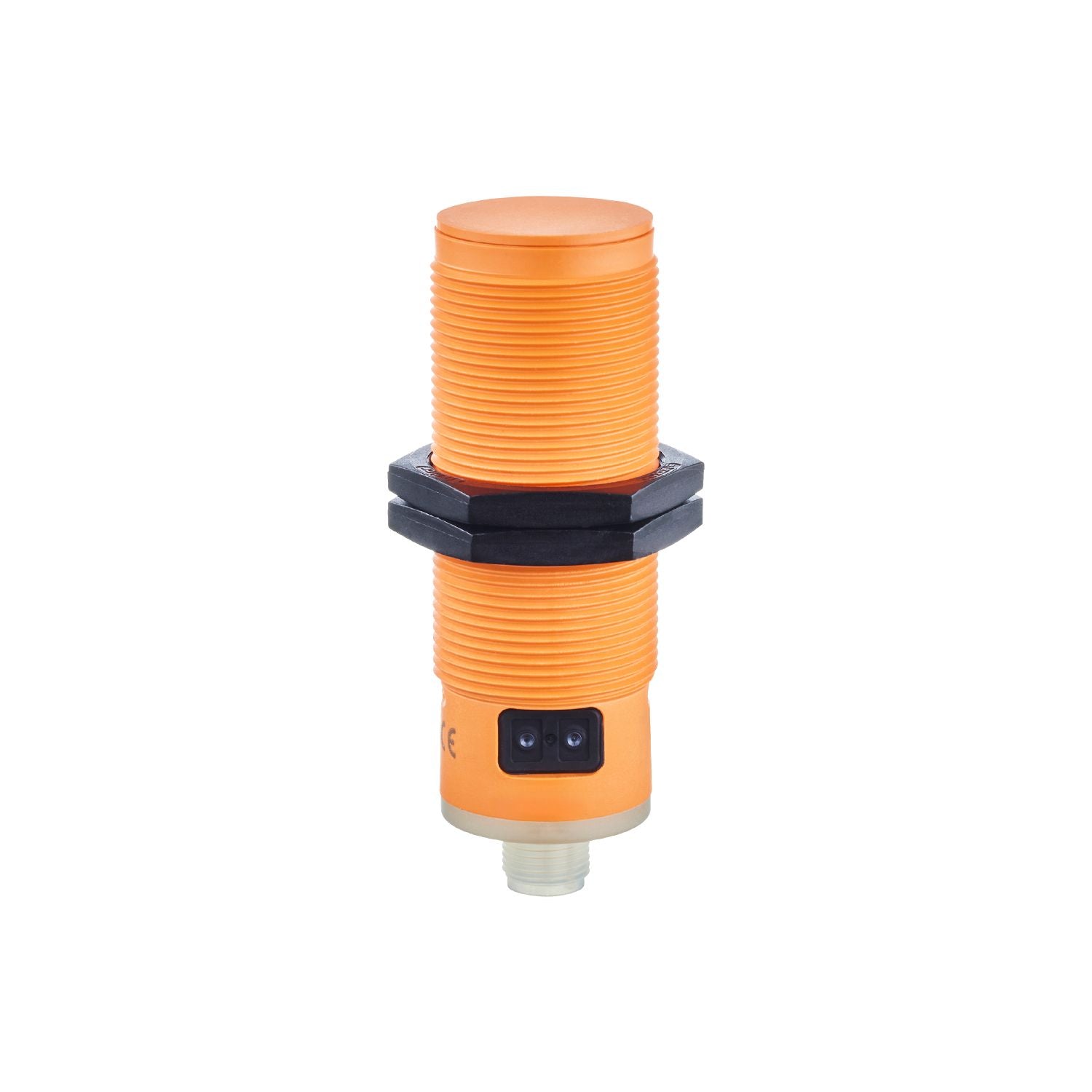

IFM KI0063 - Capacitive sensor KI-2200NFBOAP2T/LS100

Easy adjustment to the empty and full state via pushbutton.
For the detection of liquids and dry bulk materials.
With combined AC/DC output stage.
Adjustable switching delay.
Output function normally open / normally closed programmable

Output function	normally open / normally closed;(selectable)
Sensing range [mm]	20
Housing	threaded type
Dimensions [mm]	M30 x 1.5 / L = 90

Operating voltage [V]	30...250 AC / 20...250 DC
Rated insulation voltage [V]	250
Protection class	II
Reverse polarity protection	yes
Max. power-on delay time [ms]	700

Outputs

Output function	normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	10
Max. voltage drop switching output AC [V]	10
Minimum load current [mA]	5
Max. leakage current [mA]	2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC [mA]	100;(150 (...40 °C))
Permanent current rating of switching output DC [mA]	100;(150 (...40 °C))
Short-time current rating of switching output [mA]	1000;(20 ms / 0,5 Hz)
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Short-circuit proof	no
Overload protection	no

Detection zone

Sensing range [mm]	20

Accuracy / deviations

Hysteresis [% of Sr]	1...15
Switch point drift [% of Sr]	-20...20

Software / programming

Parameter setting options	7 output hold times programmable;(1: 0 s; 2: 5 s; 3: 10 s; 4: 15 s; 5: 20 s; 6: 25 s; 7: 30 s)

Operating conditions

Ambient temperature [°C]	-25...80
Note on ambient temperature	temperature of the sensing face: -25...110 °C
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 61000-4-2 4 kV CD / 8 kV AD EN 61000-4-3 3 V/m EN 61000-4-4 2 kV EN 61000-4-6 3 V EN 55011 class B
MTTF [years]	327

Weight [g]	107.2
Housing	threaded type
Mounting	non-flush mountable
Dimensions [mm]	M30 x 1.5 / L = 90
Thread designation	M30 x 1.5
Materials	housing: PBT; pushbuttons: TPE-U; LED window: PC

Displays / operating elements

Display	switching status 1 x LED, yellow
Teach function	yes
Electronic lock	yes

Accessories

Items supplied	lock nuts: 2

Remarks	Note: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x 1/2"; coding: C

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — KI0063-00 — 13.04.2023 —
