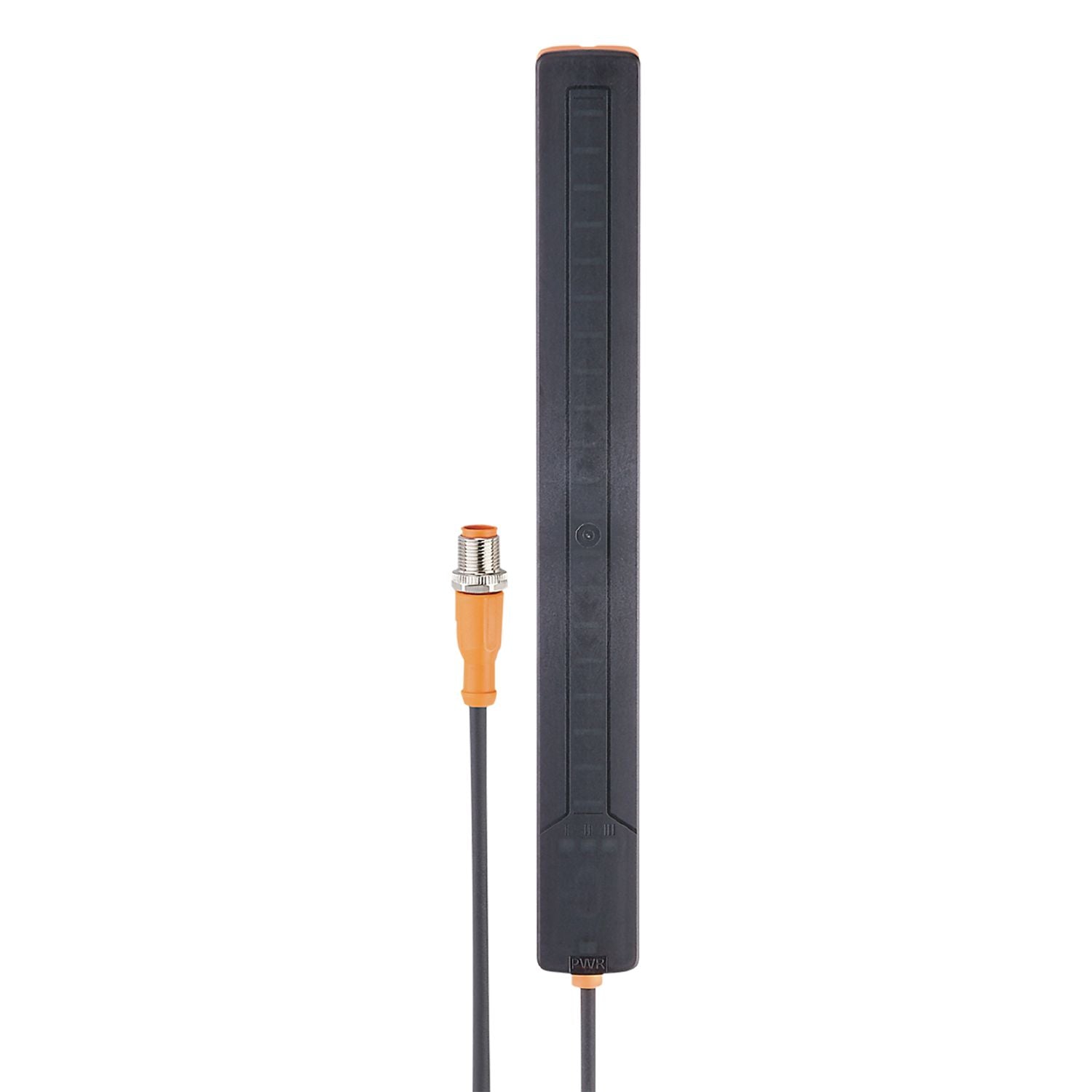

Continuous level measurement behind non-metallic and non-conductive surfaces. No stress caused by the medium thanks to non-contact detection. Three point level sensors in one unit
Electrical design
PNP/NPN;(parameterisable)
Communication interface
IO-Link
Dimensions [mm]
250 x 28 x 16.7
Application
Continuous level measurement behind non-metallic and non-conductive surfaces
Media
dry bulk material; aqueous solutions; oils
Cannot be used for
highly adhesive media
Operating voltage [V]
10...30 DC;(IO-Link: 18...30 DC)
Current consumption [mA]
< 50
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
1300
Measuring principle
capacitive
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 3
Outputs
Electrical design
PNP/NPN;(parameterisable)
Number of digital outputs
3
Permanent current rating of switching output DC [mA]
200
Max. resistance switching output [Ω]
8
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Measuring range [mm]
< 200
Measuring/setting range
Detection range [mm]
228
Set point SP [%]
5...95
Reset point rP [%]
4...94
In steps of [%]
1
Accuracy / deviations
Repeatability [% of the final value]
2
Offset deviation [% of the final value]
4
Resolution [% of the final value]
1
Linearity deviation [% of the final value]
1
Response times
Response time [ms]
1300
Software / programming
Parameter setting options
Damping; hysteresis / window; fault indication; diagnostic function; sensitivity; internal temperature; limitation of measuring range; Adjustable switching delay; zero-point calibration; direction of installation; LEDs can be deactivated
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Digital Measuring Sensor Profile, Common Profile
SIO mode
yes
Required master port type
A
Process data analogue
1
Process data binary
3
Min. process cycle time [ms]
9.6
IO-Link process data (cyclical)
function
bit length
process value
16
exponent
8
device status
4
binary switching information
3
IO-Link functions (acyclical)
direction of installation; limitation of sensor elements; sensitivity; minimum recognition threshold; Performance in case of a fault; error delay; Damping; LED mode; switch-on cycle counter; operating hours counter; switching cycles counter; min./max. process value; internal temperature; min./max. internal temperature; diagnostic data for level
Supported DeviceIDs
Type of operation
DeviceID
default
924
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Applications
DIN EN 60654-1 application class B2
Ambient temperature [°C]
-20...80
Storage temperature [°C]
-25...85
Protection
IP 65
Tests / approvals
EMC
DIN EN 61000-6-4 30 - 230 MHz
40 dBµV/m QP / 10 m distance
230 - 1 GHz
47 dBµV/m QP / 10 m distance
DIN EN 61000-4-2
± 25 kV AD / ± 25 kV CD
DIN EN 61000-4-3
80 MHz - / 1 GHz 10 V/m
DIN EN 61000-4-4
± 2.5 kV / 5 kHz
± 2.5 kV / 100 kHz
DIN EN 61000-4-6
10 V
Shock resistance
EN 60068-2-27
15 g 11 ms
Vibration resistance
EN 60068-2-6
5 g (10...2000 Hz)
MTTF [years]
290.43
UL approval
Ta
-25...60 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
UL Approval no.
D006
File number UL
E174191
Weight [g]
377.5
Dimensions [mm]
250 x 28 x 16.7
Materials
PBT; PC;
Displays / operating elements
Display
operation
1 x LED, green
switching status
3 x LED, yellow
function
20 x LED, green
Accessories
Items supplied
adhesive tape: 1 x 23 mm x 240 mm
Accessories (optional)
Mounting adapter: 2, E12675
Mounting adapter: 2, E12676
Fixing strap: 5, E10880
adhesive tape: 10, E12677
Remarks
when used on IO-Link class B masters switching outputs OUT2, OUT3 have to be switched off
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Electrical connection - plug
Cable: 0.1 m, PUR
