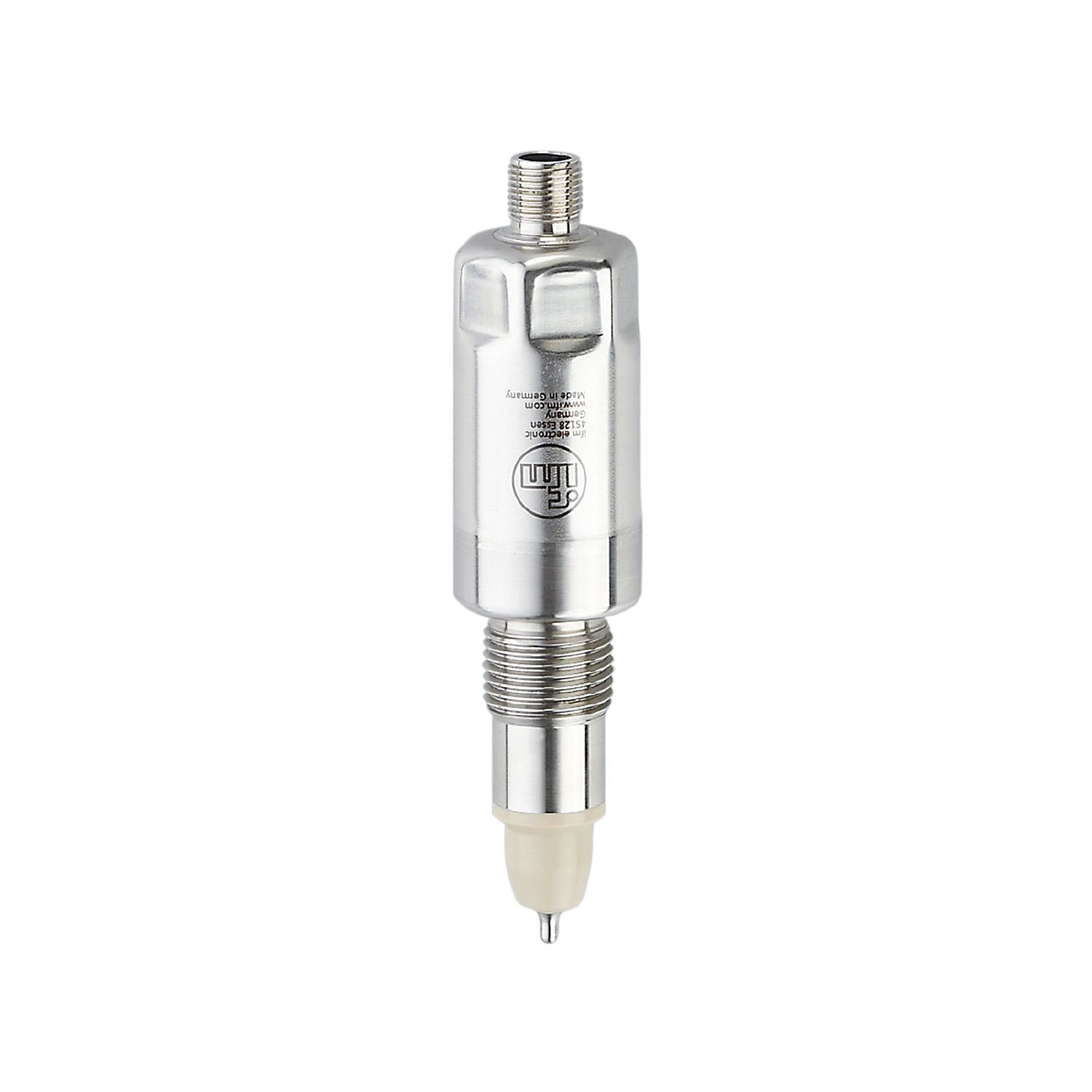

IFM LDL100 - conductive conductivity sensor COND CONDUCTIVITY HYG G1/2

Reduce inaccuracies associated with a time-based cleaning process.
Improve process performance with flexible measurement points.
Compact, high-quality sensor design prevents failures and unplanned downtime

Number of inputs and outputs	Number of analogue outputs: 1
Process connection	threaded connection G 1/2 external thread sealing cone

Special feature	Gold-plated contacts
Media	conductive liquids
Note on media	water milk CIP liquids
Cannot be used for	See the operating instructions, chapter "Function and features".
Medium temperature [°C]	-25...100;(< 1 h: 150)
Pressure rating [bar]	16
Vacuum resistance [mbar]	-1000

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 60
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	2
Measuring principle	konduktiv

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal; IO-Link
Output function	analogue output; scalable; selectable conductivity / temperature
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	500

Measuring/setting range

Measuring range [µS/cm]	100...15000
Resolution [µS/cm]	1

Measuring range [°C]	-25...150

Accuracy / deviations

Accuracy (in the measuring range)	10 % MW ± 25µS/cm
Drift [%/K]	0,2 %/K MW ± 25µS/cm
Repeatability	5 % MW ± 25µS/cm
Long-term stability	1 % MW ± 25µS/cm

Accuracy [K]	20...50 °C: < ± 0,5 K;-25...150 °C: < ± 1,5 K
Repeatability [K]	0,2
Resolution [K]	0.1

Response times

Response time [s]	< 2;(T09; Damping = 0)

Response time [s]	< 9;(T09)

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Measuring Sensor, Identification and Diagnosis
SIO mode	no
Required master port type	A
Process data analogue	1
Min. process cycle time [ms]	5.6
Supported DeviceIDs	Type of operation DeviceID default 921

Operating conditions

Ambient temperature [°C]	-40...60
Storage temperature [°C]	-40...85
Protection	IP 68; IP 69K;(7 days / 3 m water depth / 0.3 bar: IP 68)

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	172

Weight [g]	270.5
Materials	stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Materials (wetted parts)	PEEK; stainless steel (1.4404 / 316L)
Process connection	threaded connection G 1/2 external thread sealing cone

Remarks	MW = measured value
Notes	Digital meets analogue: integrating modern IO-Link sensors the analogue way. The EIO104 allows you to realise two analogue signals from intelligent IO-Link sensors with several process values.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12 (EN 61067-2-101); coding: A; Contacts: gold-plated

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — LDL100-01 — 13.04.2023 —
