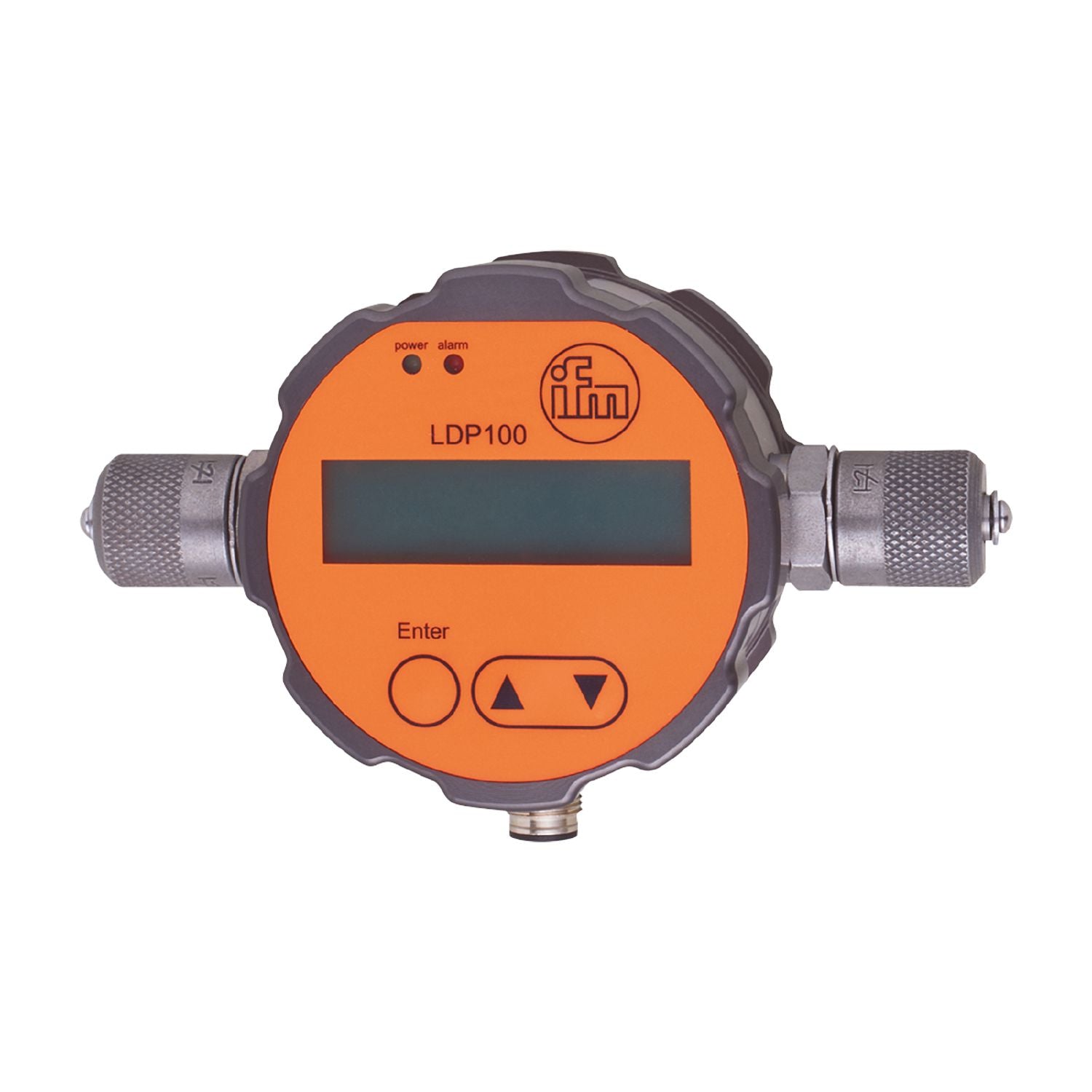

IFM LDP100 - Optical oil particle monitor OIL PARTICLE MONITOR

Trend monitoring by analysis of the particle concentration.
Indication of purity class on the LCD display.
Applications up to 420 bar.
Intuitive, user-friendly handling.
CAN bus, analogue and switching outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1
Process connection	threaded connection M16 x 2 external thread Minimess

Media	mineral oils (e.g. HLP); ester oils (e.g. HEES); biodegradable oils (e.g. HETG)

Medium temperature [°C]	-10...80

Operating voltage [V]	9...33 DC
Current consumption [mA]	9...50
Protection class	III
Measuring principle	photoelectric

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 1; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Number of digital outputs	1
Permanent current rating of switching output DC [mA]	500
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	(Ub - 4 V) / 20 mA; Ub = 24 V: 1000
Short-circuit proof	no
Overload protection	no

Measuring/setting range

Measuring range	10...22;(range number)
Display range	0...24;(range number)

Accuracy / deviations

Accuracy	± 1;(range number)

Software / programming

Parameter setting options	via buttons, PC or digital I/O

Interfaces

Communication interface	CAN

Operating conditions

Ambient temperature [°C]	-10...60
Storage temperature [°C]	-20...60
Protection	IP 67

Tests / approvals

MTTF [years]	129
Pressure Equipment Directive	article 3, paragraph (3) - Sound Engineering Practice

Weight [g]	829
Materials (wetted parts)	stainless steel (1.4028 / 420); sapphire; NBR; chromium
Process connection	threaded connection M16 x 2 external thread Minimess

Displays / operating elements

Display	1 LED, green Power 1 LED, red Alarm LC display, displayed value conforms to the cleanliness level to ISO 4406:99 and SAE AS4059E

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
