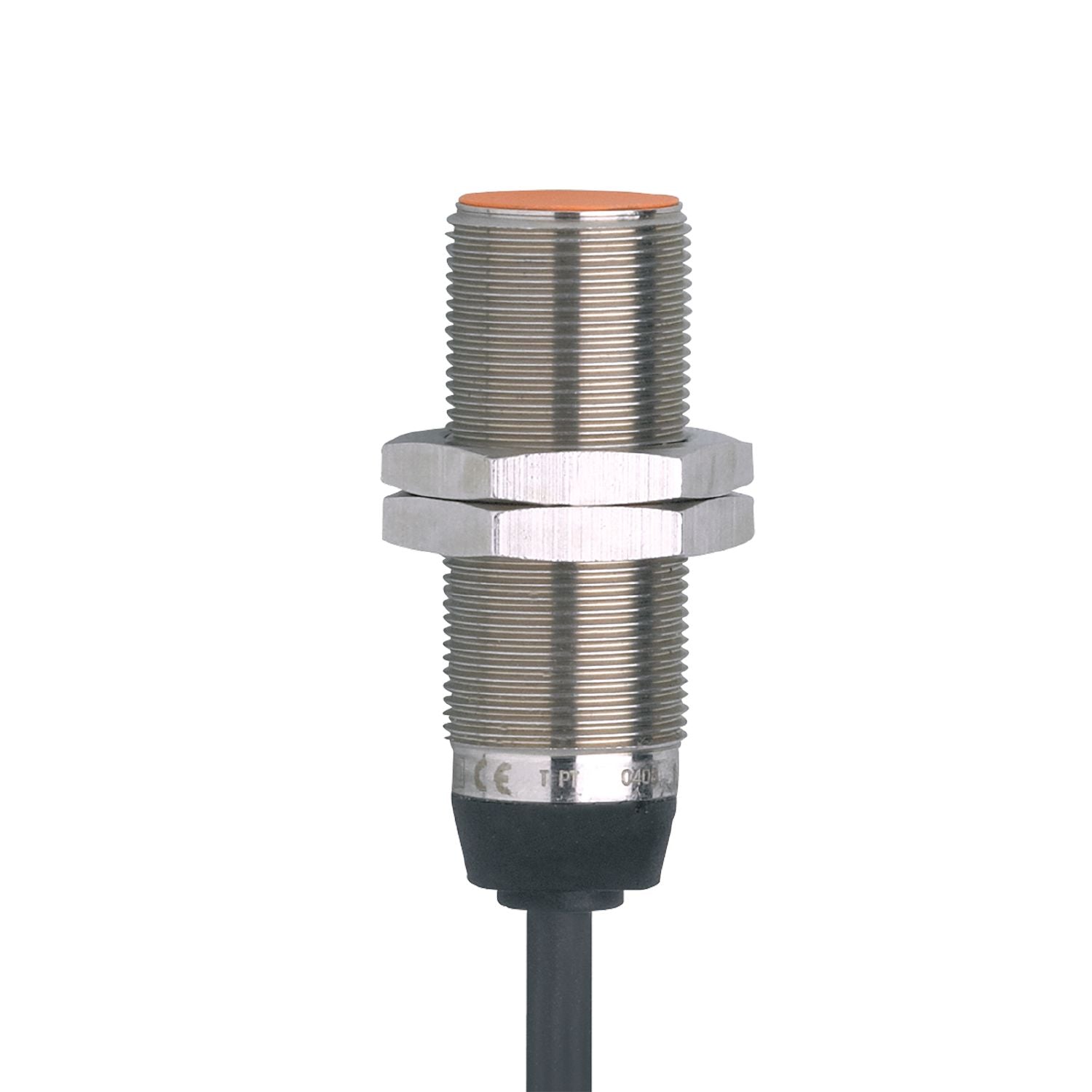

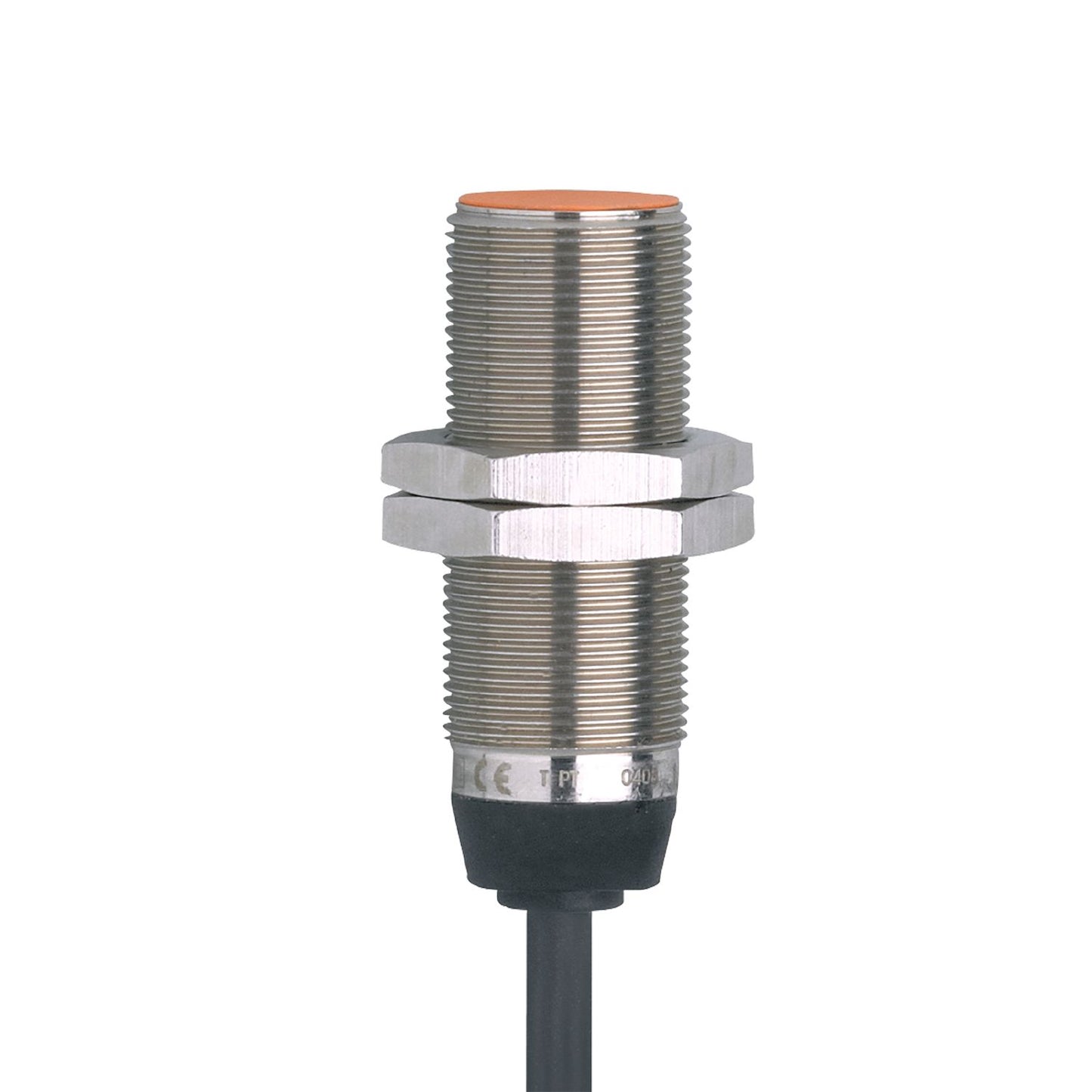

IFM MGS202 - Magnetic sensor MGB3070-APKG/ZH

Safe switch point also in case of mechanical tolerances.
Long sensing range even through non-magnetisable metals.
Temperature-stable and reproducible switch point.
Clearly visible indication of the switching status.
High impact, shock and vibration resistance

Electrical design	PNP
Output function	normally closed
Sensing range [mm]	70;(referred to magnet M 4.0)
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 50

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	normally closed
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	5000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Sensing range [mm]	70;(referred to magnet M 4.0)
Response sensitivity [mT]	0.8

Accuracy / deviations

Hysteresis [% of Sr]	1...10

Operating conditions

Ambient temperature [°C]	-25...75
Protection	IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	2630

Weight [g]	130.5
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 50
Thread designation	M18 x 1
Materials	housing: stainless steel; sensing face: PBT orange; lock nuts: brass

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.34 mm²
