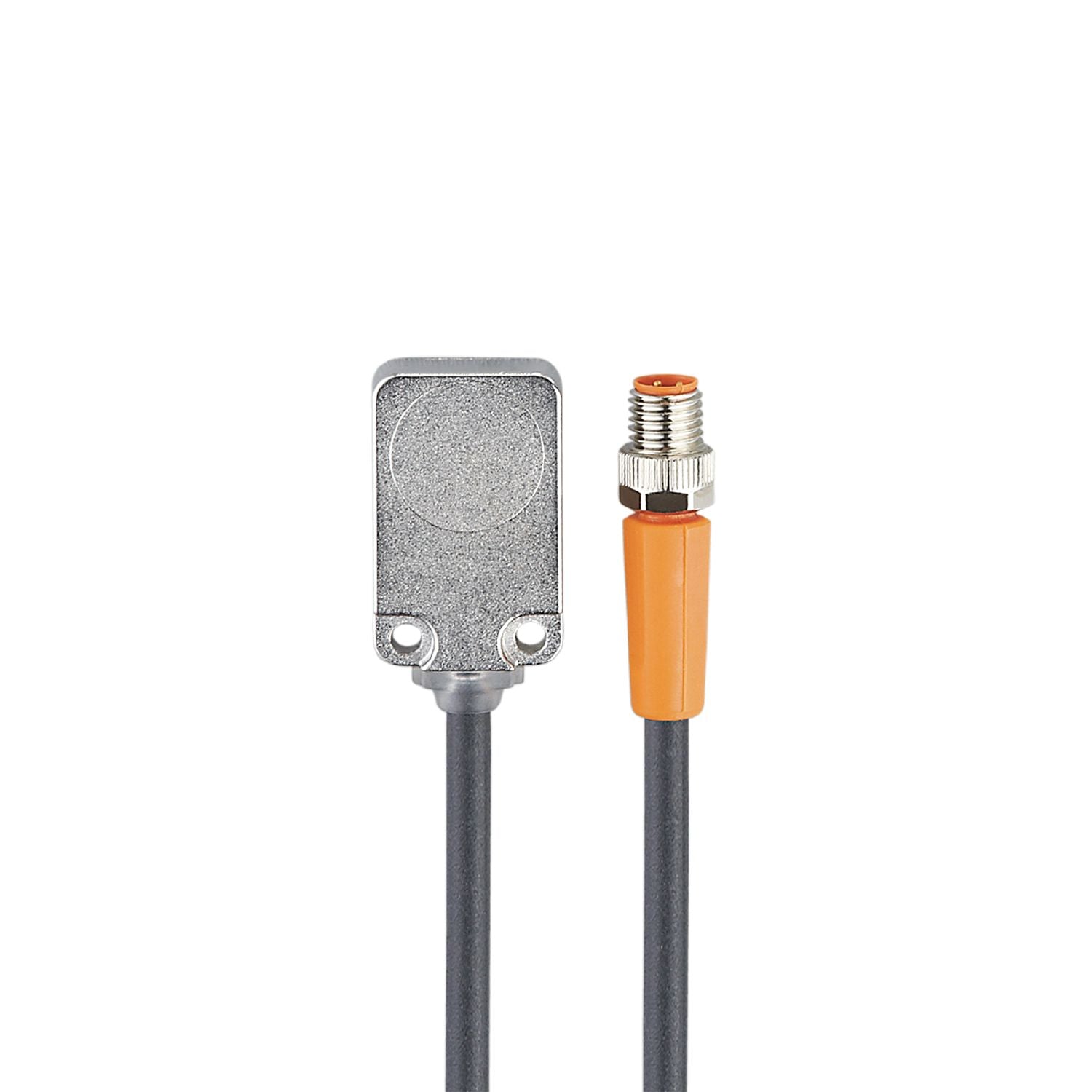

Object detection possible through metal cover (except steel). Reliable switching signal even in cases of heavy soiling of the sensor. Robust and impact resistant thanks to active face made of metal. Particularly space-saving design for use where space is restricted
Electrical design
PNP
Output function
normally open
Sensing range [mm]
5
Housing
rectangular
Dimensions [mm]
20 x 8 x 32
Media
ferrous only
Operating voltage [V]
10...30 DC
Rated insulation voltage [V]
60
Current consumption [mA]
< 30
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
< 0.3
Outputs
Electrical design
PNP
Output function
normally open
Max. voltage drop switching output DC [V]
2.5
Max. leakage current [mA]
0.1
Permanent current rating of switching output DC [mA]
100
Short-time current rating of switching output [mA]
100
Switching frequency DC [Hz]
300
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Sensing range [mm]
5
Real sensing range Sr [mm]
5 ± 10 %
Operating distance [mm]
0...4.05
Accuracy / deviations
Correction factor
steel: 1
Hysteresis [% of Sr]
< 10
Switch point drift [% of Sr]
10
Repeatability [% of Sr]
10
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-30...85
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance
EN 60068-2-27 Ea
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance
EN 60068-2-27
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MQ2001-00 — 13.04.2023 —
