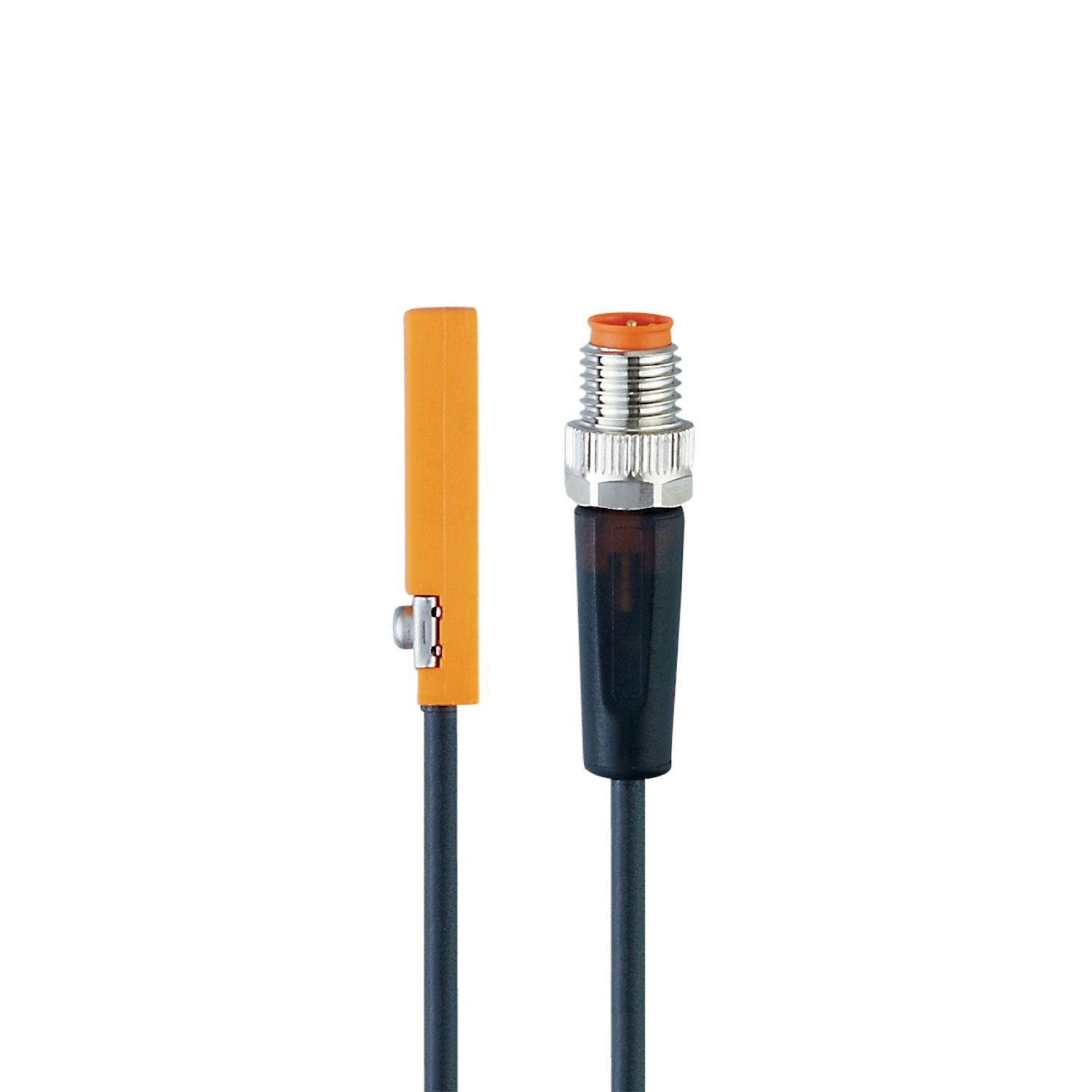

Self-locking fixture for quick mounting and easy adjustment. Easy fit 'drop from the top' into a slot. Moulded cable ensuring very good strain relief. With combined AC/DC output and two-wire technology. Very high switching frequency
Electrical design
PNP/NPN
Output function
normally open
Dimensions [mm]
30.5 x 5 x 6.5
Operating voltage [V]
5...50 AC / 5...60 DC;(UL supply class 2:5...60 DC / 5...30 AC)
Protection class
III
Reverse polarity protection
yes
Reverse polarity protection
yes
Outputs
Electrical design
PNP/NPN
Output function
normally open
Max. voltage drop switching output DC [V]
5
Max. voltage drop switching output AC [V]
5
Permanent current rating of switching output AC [mA]
100;(External protective circuit for inductive load (valve, contactor, etc.) necessary.)
Permanent current rating of switching output DC [mA]
100;(External protective circuit for inductive load (valve, contactor, etc.) necessary.)
Switching frequency AC [Hz]
1000
Switching frequency DC [Hz]
1000
Max. switching power [W]
10
Short-circuit protection
no
Short-circuit proof
no
Overload protection
no
Detection zone
Response sensitivity [mT]
2.1
Travel speed [m/s]
10
Accuracy / deviations
Hysteresis [mm]
1
Repeatability [mm]
-0.2...0.2
Response times
Max. fall time [ms]
0.1
Max. make time incl. bounce [ms]
0.6
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
- CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
1 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
MTTF [years]
11303
UL approval
UL Approval no.
C004
Weight [g]
14.5
Mounting
flush mountable
Cylinder type
T-slot cylinders
Dimensions [mm]
30.5 x 5 x 6.5
Materials
housing: PA; fastening clamp: stainless steel
Switching cycles when connected to PLC [Mio]
< 40
Displays / operating elements
Display
switching status
1 x LED, yellow
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 0,175 A; fast acting
Accessories
Items supplied
rubber placeholder: 1
Cable clip: 1
Remarks
No LED function in case of polarity reversal in DC operation.
operating voltage "supply class 2" according to UL
Pack quantity
1 pcs.
Electrical connection - plug
Cable: 0.3 m, PUR
Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable
