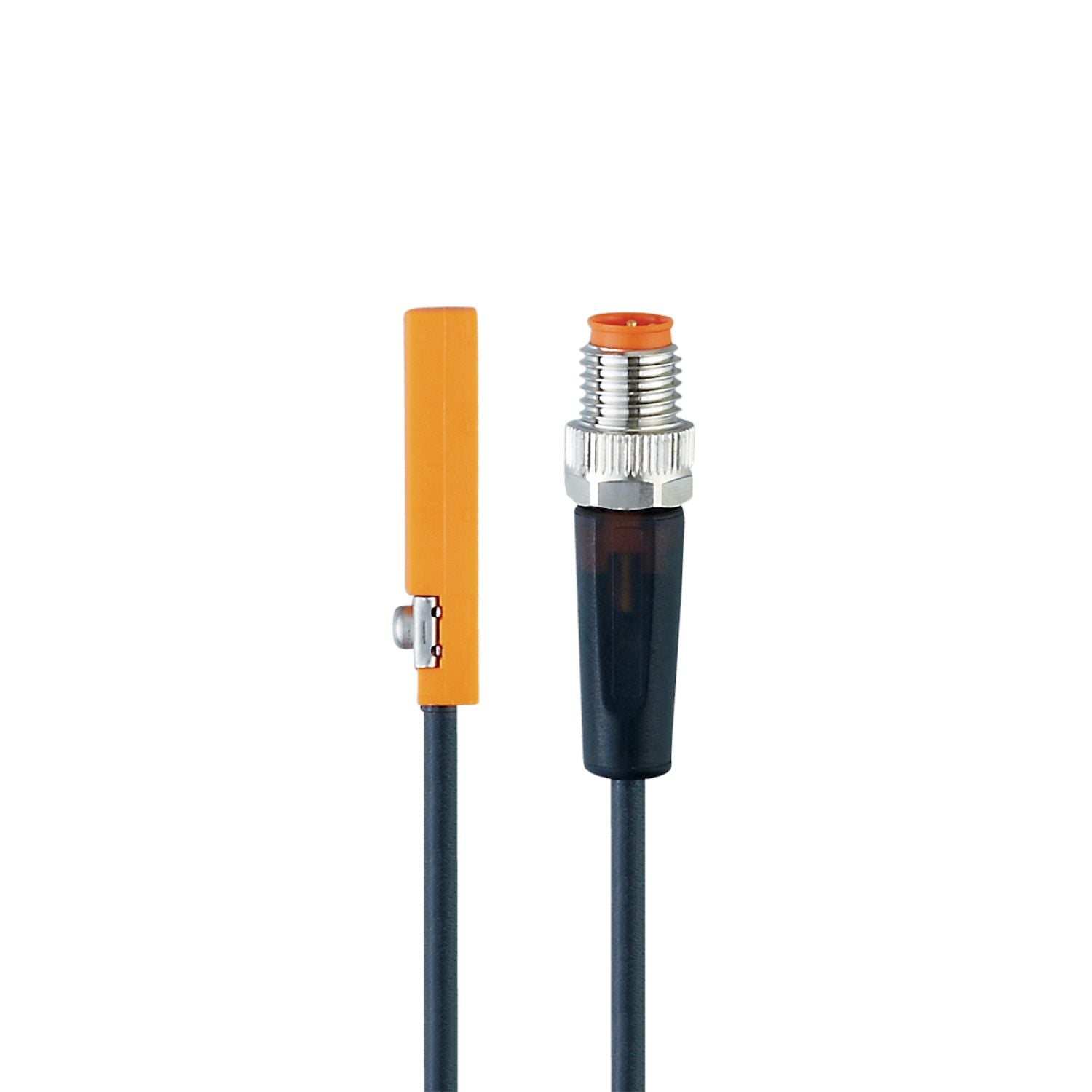

IFM MR0120 - T-slot cylinder sensor with reed contact MRT3021BBKOA/R/0,3M/ZH/ASR

Self-locking fixture for quick mounting and easy adjustment.
Easy fit 'drop from the top' into a slot.
Moulded cable ensuring very good strain relief.
Three-wire version for applications with high load currents.
Very high switching frequency

Electrical design	PNP
Output function	normally open
Dimensions [mm]	30.5 x 5 x 6.5

Operating voltage [V]	5...50 AC/DC;(External protective circuit for inductive load (valve, contactor, etc.) necessary. ; "supply class 2" according to UL)
Protection class	III
Reverse polarity protection	yes
Reverse polarity protection	no

Outputs

Electrical design	PNP
Output function	normally open
Max. voltage drop switching output DC [V]	1
Max. voltage drop switching output AC [V]	1
Permanent current rating of switching output AC [mA]	350
Permanent current rating of switching output DC [mA]	500
Switching frequency AC [Hz]	1000
Switching frequency DC [Hz]	1000
Max. switching power [W]	10
Short-circuit protection	no
Short-circuit proof	no
Overload protection	no

Detection zone

Response sensitivity [mT]	2.1
Travel speed [m/s]	10

Accuracy / deviations

Hysteresis [mm]	1
Repeatability [mm]	< 0.2

Response times

Max. fall time [ms]	0.1
Max. make time incl. bounce [ms]	0.6

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
MTTF [years]	20385
UL approval	UL Approval no. C004

Weight [g]	14.8
Mounting	flush mountable
Cylinder type	T-slot cylinders
Dimensions [mm]	30.5 x 5 x 6.5
Materials	PA; fastening clamp: stainless steel
Switching cycles when connected to PLC [Mio]	40

Displays / operating elements

Display	switching status 1 x LED, yellow

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 0,75 A; fast acting; DC operation; ≤ 0,6 A; fast acting; AC operation

Accessories

Items supplied	rubber placeholder: 1 Cable clip: 1

Pack quantity	1 pcs.

Electrical connection - plug

	Cable: 0.3 m, PUR
	Connector: 1 x M8; coding: A; Locking: knurled nut, rotatable; vibration protection
